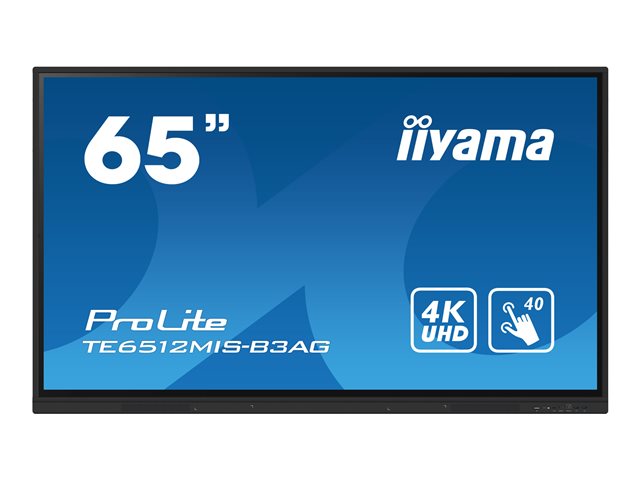

TieDex UK iiyama ProLite TE6512MIS-B3AG 65" Class (64.5" viewable) LED-backlit LCD display - 4K - for digital signage / interactive communication

iiyama ProLite TE6512MIS-B3AG - 65" Diagonal Class (64.5" viewable) LED-backlit LCD display - interactive digital signage - with touchscreen (multi touch) / optional slot-in PC capability - 4K UHD (2160p) 3840 x 2160 - black bezel with matte finish - with iiyama WiFi module (OWM002)

Basic Specifications

Manufacturer's Part Number

TE6512MIS-B3AG

EAN

4948570123698

Product Type

LED-backlit LCD flat panel display with touchscreen (multi touch) / optional slot-in PC capability

Product Description

iiyama ProLite TE6512MIS-B3AG 65" Class (64.5" viewable) LED-backlit LCD display - 4K - for digital signage / interactive communication

HDMI Ports Qty

3 ports

LCD Backlight Technology

LED backlight

Resolution

3840 x 2160

Image Aspect Ratio

16:9

Power Consumption Operational

138 Watt

Model

iiyama ProLite TE6512MIS-B3AG

Speaker System

2 speakers

PC Interface

HDMI, VGA (HD-15), USB-C 3.2

Dimensions (WxDxH) - without stand

148.85 cm x 8.75 cm x 89.65 cm

Display Format

4K UHD (2160p)

Energy Class

Class G

USB

Yes

Diagonal Class

65"

Video Interface

HDMI

Commercial Use

Interactive

Environmental Standards

ENERGY STAR Qualified

Voltage

AC 100-240 V (50/60 Hz)

Technology

IPS

Colour

Black bezel with matte finish

TV Tuner

No tuner

Weight

35 kg

Manufacturer Warranty

5-year warranty

Bundled with

Iiyama WiFi module (OWM002)

Power Consumption (On mode)

137 W

Display Resolution

4K Ultra HD (2160p)

Diagonal Size

64.5"

Connectivity

LAN, Wi-Fi

Storage Capacity

64 GB

Included Accessories

Remote control, 4 touch pens, Mounting bracket for NUC, Mounting bracket for webcam

Power Consumption Stand by

0.5 Watt

Smart

No

Frame Rate & Enhancement Technology

60 Hz Refresh Rate

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Remote Control

Type

Remote control

Battery Included

Yes

Audio System

Speaker System

2 speakers

Output Power / Total

32 Watt

Speakers

2 x main channel speaker - 16 Watt

Stands & Mounts

Flat Panel Mount Interface

600 x 400 mm

VESA Compatibility

Yes

Media Player

USB Port

Yes

Configuration

ARM Cortex-A55 Quad-Core - 8 GB - 64 GB - Mali G52

Connections

Connector Type

3 x HDMI input ¦ USB-C 3.2 Gen 1 with 65W Power Delivery - front ¦ VGA input ¦ Audio input ¦ RS-232C input ¦ LAN input ¦ Infrared input ¦ HDMI output ¦ SPDIF output ¦ Audio output ¦ 2 x USB 3.2 Gen 1 - front ¦ 2 x USB 3.2 Gen 1 - side ¦ Infrared input ¦ 2 x Gigabit LAN

Display

LCD Display Technology

IPS

Pixel Pitch

0.372 mm

Colour Support

1070000000 colours

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Image Aspect Ratio

16:9

Frame Rate & Enhancement Technology

60 Hz Refresh Rate

LCD Backlight Technology

LED backlight

Coating

Anti-glare, 3 mm glass, 7H Hard

Image Contrast Ratio

1200:1

Dynamic Contrast Ratio

4000:1

Brightness

400 cd/m²

Viewing Angle

178 degrees

Viewing Angle (Vertical)

178 degrees

Touchpoints Qty

40

Response Time

8 ms

Display Menu Language

English, German, French, Spanish, Italian, Russian, Czech, Dutch, Polish, Slovenian, Finnish, Danish

Operation Hours / Days

24 / 7

Features

PureTouch-IR technology, 92% light transmittance, zero air-gap, 8-bit support, Frame Rate Control (FRC), Open Pluggable Specification slot, OSD key lock, MTBF 50000 hours, blue light reduction, 24/7 operation time, integrated iiWare 10 software, iiyama Device management System (DMS), LAN Control

General

Product Type

LED-backlit LCD flat panel display

Energy Class

Class G

Power Consumption Operational

138 Watt

Power Consumption (On mode)

137 W

Power Consumption SDR (On mode)

137 kWh/1000h

Diagonal Class

65"

Diagonal Size

64.5"

Commercial Use

Yes - interactive digital signage

Bundled with

Iiyama WiFi module (OWM002)

Combined With

Touchscreen (multi touch) / optional slot-in PC capability

Operating System

Android OS 11

TV Tuner

No tuner

TV Tuner Presence

No

Sensors

Light sensor, remote sensor

Video Interface

HDMI

HDMI Ports Qty

3 ports

PC Interface

HDMI, VGA (HD-15), USB-C 3.2

Modes

Landscape mode, kiosk mode

Design

Metal frame

Cooling System

Fanless

Dimensions

Without stand

Width

148.85 cm

Depth

8.75 cm

Height

89.65 cm

Weight

35 kg

Enclosure Colour

Black bezel with matte finish

Miscellaneous

Included Accessories

4 touch pens, Mounting bracket for NUC, Mounting bracket for webcam

Cables Included

HDMI cable ¦ USB cable

Compliant Standards

Plug and Play, CB, TUV Bauart, REACH SvHC, EAC, RoHS, ERP, WEEE, REACH, EPA 8.0, DDC-2B, HDCP 2.1, HDCP 2.2

Power

Power Device

Power supply

Input Voltage

AC 100-240 V (50/60 Hz)

Power Consumption Stand by

0.5 Watt

Power Consumption (Off Mode)

0.3 Watt

Dimensions & Weight (Shipping)

Width (Shipping)

162.8 cm

Depth (Shipping)

20.8 cm

Height (Shipping)

100.5 cm

Weight (Shipping)

44.7 kg

Network & Internet Multimedia

Functionality

Digital video playback, cloud storage playback, Internet video playback, WEB browsing

Connectivity

LAN, Wi-Fi

LAN Protocol

Gigabit Ethernet

Wi-Fi Protocol

802.11a, 802.11b, 802.11g, 802.11n, 802.11ac

Bluetooth Version

Bluetooth 5.0

Connect & Share

Iiyama Share, EShare

Sustainability Information

ENERGY STAR Certified

Yes
