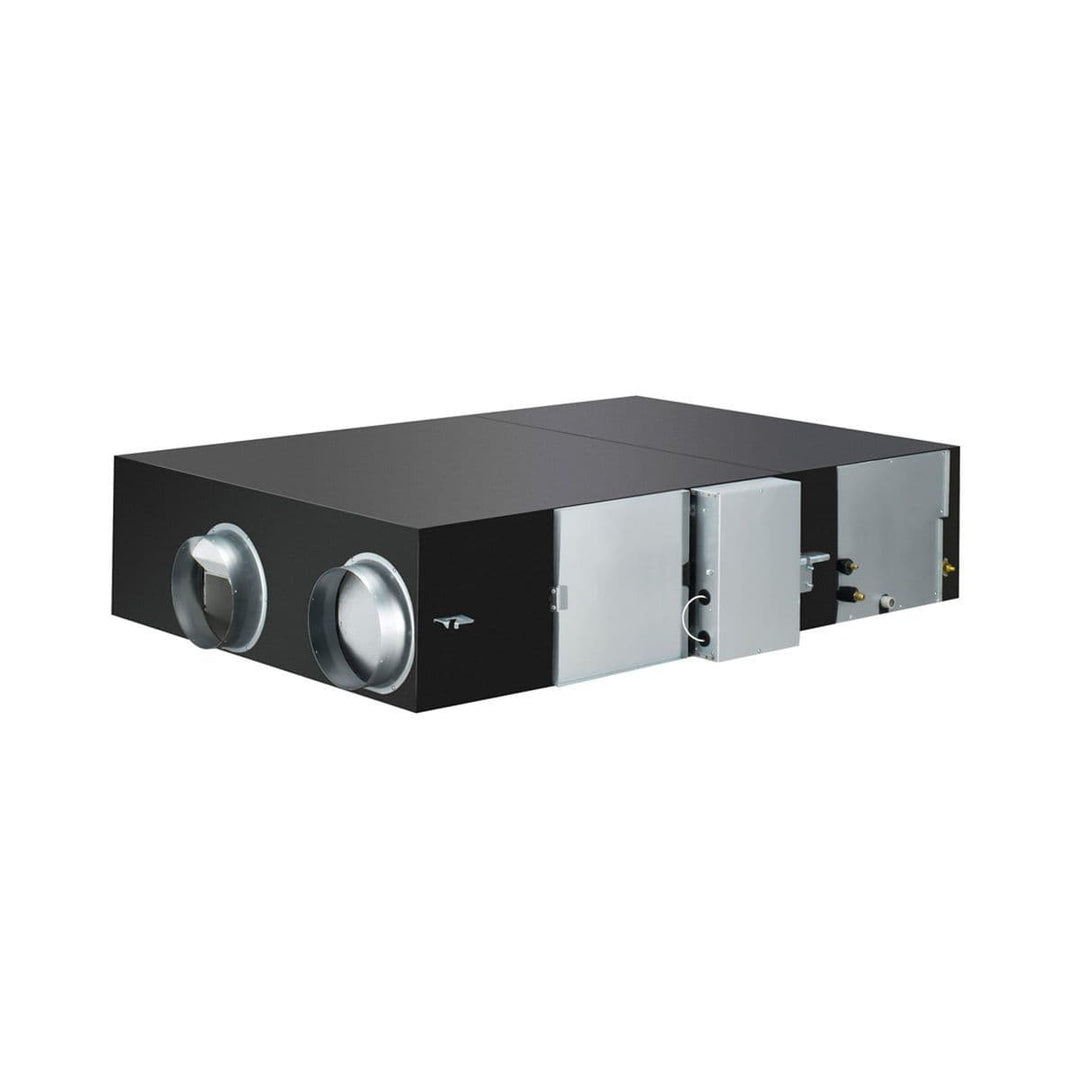

Lg Air Conditioning LZ-H050GXN4 Heat Recovery Ventilator With DX Coil 5Kw 240V~50Hz
Lg Air Conditioning LZ-H050GXN4 Heat Recovery Ventilator With DX Coil 5Kw 240V~50Hz is listed for TieDex store sale under Lg Air Conditioning Eco V Heat Recovery Ventilator. The brand/vendor is Lg Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Providing Cool & Warm Fresh Air, During the summer, the ERV DX unit can transform outdoor warm air into cool air for indoors, and it can prevent cold drafts during the winter by supplying warm air. The LG ERV DX can be used as a Total Air Conditioning Solution and it can control condition of incoming air with the DX coil making comfortable indoor air. In the summer, LG ERV DX controls the air indoors by cooling and dehumidifying incoming air. In winter, it can provide warm air by heating the incoming air. Interlocking with MULTI V LG ERV DX can be interlocked with MULTI V. It can be controlled individually by a wired remote controller connected to MULTI V indoor units. LGʼs heat recovery ventilation system modulates the temperature and humidity of incoming fresh air to match indoor conditions.
A balance is thus achieved between indoor and outdoor ambient, enabling the cooling or heating load placed on the air conditioning system to be reduced significantly which can be controlled individually or integral with the air conditioning system. Ventilation is a process by which one can exchange indoor air to outdoor air in order to improve the air quality and to maintain environmental temperature conditions. Provides efficiency, cost savings, superior performance, compact & light design, BLDC Motor ensuring various design of duct system and easy maintenance. Units are ideal for hotels, dormitories, restaurants, hospitals, retail establishments, theaters, schools, and office buildings. High Efficiency Heat Exchanger: Cross flow heat exchanger ensure no mixing of the stale air with the fresh air. Efficiency and comfort is ensured by the high-efficiency energy recovery central core which recovers energy from the indoor air and
transfers it to the fresh incoming air without mixing airstream's.The heat exchanger also helps to remove unwanted humidity from air inside your home during winter, and removes the humidity from the outside air before it enters your home in the summer. Easy Cleaning and Filter Changing: Door attached, side-panel and slide-removable options provide convenient access for maintenance. What's more, enthalpy heat exchanger filters can be changed without additional maintenance. With regular maintenance, our air conditioners can achieve a collection efficiency of over 80%, which means they can filter particles up to 0.3 m, including tobacco smoke. Technical Info: Model LZ- H050GXN4 Fresh Air Cooling 1) kW 4.93 Conditioning Load Heating 2) kW 6.73 Temperature Exchange Efficiency SH / H / L % 86 / 86 / 87 Enthalpy Exchange Cooling (SH / H / L) % 61 / 61 /
63 Efficiency Heating (SH / H / L) % 76 / 76 / 77 Heat Exchange Mode (SH / H / L) CMH 500 / 500 / 440 Air Flow Rate Fan Bypass Mode (SH / H / L) CMH 500 / 500 / 440 External Static Pressure (SH / H / L) Pa 180 / 150 / 110 System Humidifier Amount 3) kg/h Pressure Feed Water Mpa Heat Exchange Mode (SH / H / L) dB (A) 39 / 37 / 35 Sound Pressure Bypass Mode (SH / H / L) dB (A) 39 / 37 / 35 Refrigerant R410A Power Supply Ø / V / Hz 1 / 220~240 / 50, 60 Power Input Heat Exchange Mode (SH / H / L) kW 0.25 / 0.20 / 0.15 (Nominal) Bypass Mode (SH / H / L) kW 0.25
/ 0.20 / 0.15 Nominal Running Heat Exchange Mode (SH / H / L) A 1.5 / 1.3 / 1.0 Current (RLA) Bypass Mode (SH / H / L) A 1.5 / 1.3 / 1.0 Dimensions W x H x D mm Net Weight kg Liquid mm Gas mm Piping Connection Water mm Drain (Outer Diameter) mm Connection Duct Diameter mm Unit controller LG included PDF Data:
Key Details
- Brand / Vendor: Lg Air Conditioning
- Product SKU: LZ- H050GXN4
- MPN / Model: LZ- H050GXN4
- Category: Lg Air Conditioning Eco V Heat Recovery Ventilator
- Parent Category: LG Air Conditioning
- Condition: New
- Availability: InStock
