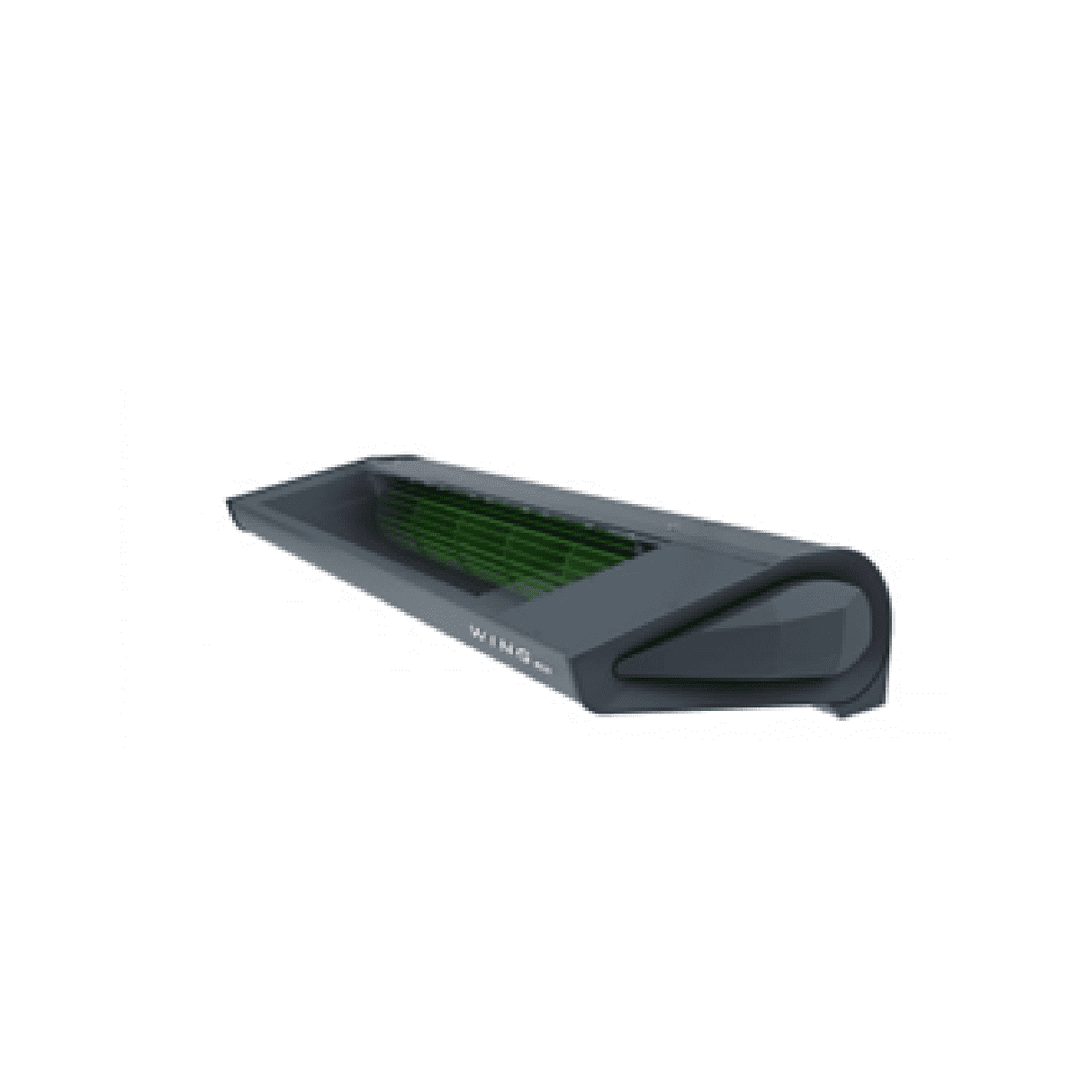

Powrmatic VTS Pro WING-C200-EC Ambient EC Motor Air Curtain 2000mm White 12800m³/hr 220-240V~50Hz
Powrmatic VTS Pro WING-C200-EC Ambient EC Motor Air Curtain 2000mm White 12800m³/hr 220-240V~50Hz is listed for TieDex store sale under Standard Electric Air Curtains. The brand/vendor is Powrmatic. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
This Kit Includes: 1 × Powrmatic VTS WING PRO C200-EC Ambient Air Curtain 1 × High-capacity EC motor fan assembly 1 × Factory-finished white casing (RAL 9016) 1 × Mounting bracket set Ultra High Capacity EC Motor Air Curtain for Tall Industrial & Logistics Entrances The Powrmatic VTS WING PRO C200-EC is a high-performance ambient air curtain engineered for wide and tall industrial door openings requiring extended air throw and superior environmental separation. Delivering a maximum airflow of 12,800 m³/hr, the WING PRO C200-EC creates a powerful and stable air barrier across large entrances, reducing heat loss, preventing cold air ingress and limiting the entry of dust and airborne contaminants when doors are opened. Designed for demanding logistics and warehouse environments, this 2000mm model is suitable for door heights of up to approximately 8 metres. The advanced EC motor technology
ensures smooth, adjustable airflow with reduced electrical consumption compared to conventional AC motor systems, making it an energy-efficient solution for high-traffic facilities. Finished in RAL 9016 white, the unit combines modern industrial styling with heavy-duty performance. Key Product Features: • Ambient (unheated) high-capacity air curtain • Maximum airflow: 12,800 m³/hr • Advanced EC motor technology • Suitable for door heights up to approx. 8 metres • 2000mm unit length • White finish (RAL 9016) • Adjustable multi-speed airflow control • Designed for large industrial and logistics environments • Energy-efficient operation • 220-240V~50Hz single-phase supply Technical Specifications: Model: WING PRO C200-EC Product Type: Ambient EC motor air curtain Length: 2000 mm Finish: White (RAL 9016) Airflow Range: Low: Approx. 6,000 m³/hr Medium: Approx. 9,000 m³/hr High: 12,800 m³/hr Electrical Supply: 220-240V~50Hz 1Ph Motor Power: Approx. 0.75 kW Rated Current: Approx. 3.9
A Maximum Recommended Door Height: Up to approx. 8 m Noise Level: Approx. 58–66 dB(A) Weight: Approx. 58 kg Applications: • Large warehouses • Distribution centres • Logistics hubs • Industrial loading bays • Manufacturing facilities • High-traffic commercial entrances Accessories: Part Number Description Price (£) WING-HMI Programmable Automatic Variable Speed Potentiometer 182 WING-HMI-WIFI WiFi Programmable Automatic Variable Speed Potentiometer 209 WING-100G-WB Mounting Bracket Set (2) to suit Wing 100: Grey 50 WING-100W-WB Mounting Bracket Set (2) to suit Wing 100: White 50 WING-150/200G-WB Mounting Bracket Set (3) to suit Wing 150/200: Grey 69 WING-150/200W-WB Mounting Bracket Set (3) to suit Wing 150/200: White 69 WING-DS Door Sensor (Reed Switch) to suit Wing/Wing Pro 50 WX-VA Valve with Actuator 138 WX-FC Set of ¾" Flexible Connection Hoses 62 HMI-SMB HMI Surface Mounting Box 35
Key Details
- Brand / Vendor: Powrmatic
- Product SKU: WING-20503
- MPN / Model: Pro WING PRO C200-EC
- Category: Standard Electric Air Curtains
- Parent Category: Air Curtains
- Condition: New
- Availability: InStock
