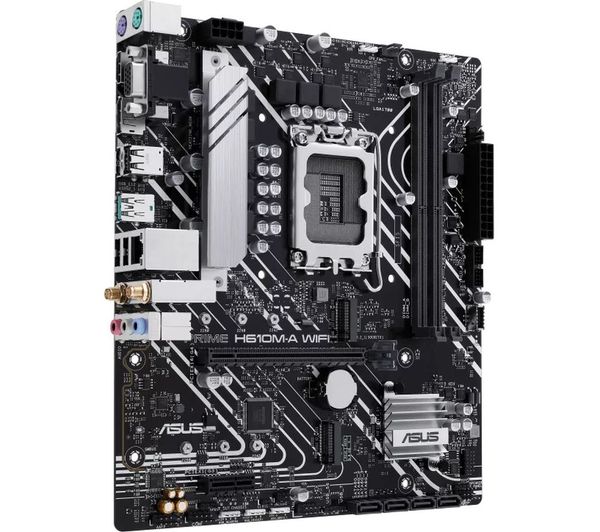

TieDex UK ASUS PRIME H610M-A WIFI LGA1700 Motherboard

This microATX board from ASUS is designed to handle powerful components. for 13th Gen Intel® Core™ Processors, but also 12th gen, Pentium® Gold and Celeron® processors. So you can use it as the base for a wide variety of systems. You can plug in up to 96 GB of DDR5 RAM and blaze through your workflows. And with PCIe 4.0 and you can have high-speed storage that won't make you wait around.

Good to know

- With Gigabit Ethernet and WiFi 5 you'll have super-fast and rock-solid internet connection
- To make sure your hardware stays cool under load, there's onboard heatsinks and 3 PWM fan headers
- Connect RGB LEDs and sync them with your components and peripherals using ASUS Aura Sync

ASUS PRIME H610M-A WIFI LGA1700 Motherboard, Form factor: microATX, Socket: Intel® 1700, Chipset: Intel® H610, Memory: DIMM x 2 / Max RAM: 96 GB DDR5, 3 year guarantee

Basic Specifications

Manufacturer's Part Number

AUMBH610MAPRWI

EAN

4711387301777

Form Factor

Micro ATX

Max RAM Size

96 GB

Processor Socket

LGA1700

Overview

Form factor

microATX

Socket

Intel® LGA1700

Chipset

Intel® Z790

Processor models supported

- 13th Gen Intel® Core™ processors
- 12th Gen Intel® Core™ processors
- Intel® Pentium® Gold processors
- Intel® Celeron® processors

Operating systems supported

- Windows 10 (64-bit)
- Windows 11

Memory slots

2 x DIMM (Max RAM: 96 GB)

Memory standard

DDR5

Cooling features

Fan cooling

General

Colour

Black

Software included

- ASUS Exclusive Software
- Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancellation
- AI Suite 3
- Performance And Power Saving Utility
- TurboV EVO
- EPU
- DIGI+ VRM
- PC Cleaner
- ASUS CPU-Z
- Norton 360 for Deluxe (60 Days Free Trial)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Box contents

- ASUS PRIME H610M-A WIFI LGA1700 Motherboard
- Cables
- SATA 6Gb/s cables x 2
- ASUS Wi-Fi moving antennas x 1
- I/O Shield x 11 x Screw package for M.2 SSDDocumentation1 x User guide"

Dimensions

25 x 216 x 244 mm (H x W x D)

Weight

551 g

Manufacturer’s guarantee

3 years

External connectivity

Video output

- HDMI x 1
- DisplayPort x 1

USB

- USB Type-C x 1
- USB 3.2 x 3
- USB 2.0 x 6

Audio

3.5 mm jack x 3

LAN

Intel® 1Gb Ethernet x 1

Other external connections

- WiFi module
- PS/2 Keyboard (purple) port x 1
- PS/2 Mouse (green) port x 1

Internal connectivity

Expansion slots

- PCIe 4.0 (x16) x 1
- PCIe 3.0 (x1) x 1

Storage slots

- SATA x 4 (6 GB/s)
- M.2 x 2

Cooling

- CPU fan 4-pin x 1
- 4-pin Chassis Fan headers x 2

Power

- 24-pin EATX x 1
- 8-pin ATX x 1

Case

Power LED x 1

Buttons

Power

BIOS

- UEFI AMI BIOS
- 128 Mb Flash ROM

USB

- USB 3.2 x 1
- USB 2.0 x 2

Other internal connections

- Addressable Gen 2 headers x 3
- Aura RGB header x 1
- Clear CMOS header x 1
- COM Port header x 1
- Front Panel Audio header (AAFP) x 1
- S/PDIF Out header x 1
- Speaker header x 1
- SPI TPM header (14-1pin) x 1
- 10-1 pin System Panel header x 1
