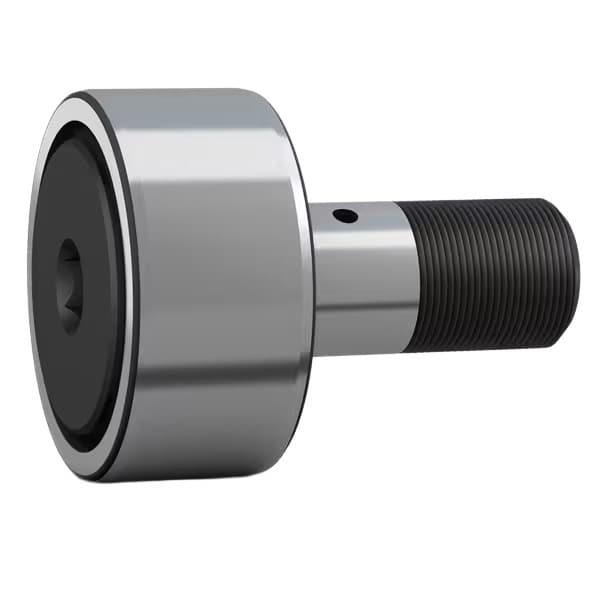

This cam follower provides rolling contact guidance for linear motion and cam-tracking tasks in industrial systems. It is a stud-style needle roller bearing designed to translate radial loads through a cylindrical roller element, offering a Compact solution for assemblies where a mounted rolling element is required rather than a separate bearing and shaft.
Features and Benefits
- Needle rollers deliver high load capacity for Compact installations
Cylindrical roller profile ensures consistent rolling contact
Stud configuration simplifies mounting and axial location
Dynamic capacity rated at 6.16 kN supports cyclic loading
Static capacity rated at 8 kN resists high standing loads
Roller width 14mm improves load distribution across the surface
Applications
- Suitable for guided cam tracks in automated machinery
Ideal for conveyor line actuators in manufacturing systems
Used with indexing mechanisms requiring Compact radial bearings
Can be used for pick-and-place equipment in electronics assembly
Used for support points in linear motion assemblies with limited shafting
What bore size does it accept for interfacing components?
The internal hole for mounting accepts a 12mm mating shaft or locating pin to secure the stud in the host assembly.
How does the roller geometry affect motion accuracy?
The cylindrical roller shape maintains uniform contact along its length, reducing surface edge loading and improving repeatable radial guidance.
What mechanical behaviour should I expect under repeated cycles?
With a dynamic capacity of 6.16 kN the bearing handles cyclical radial forces typical of cam and follower systems without immediate plastic deformation.
How does the stud form influence installation in confined spaces?
The integrated stud removes the need for separate housing and fasteners, enabling simpler installation where space and assembly operations are constrained.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
