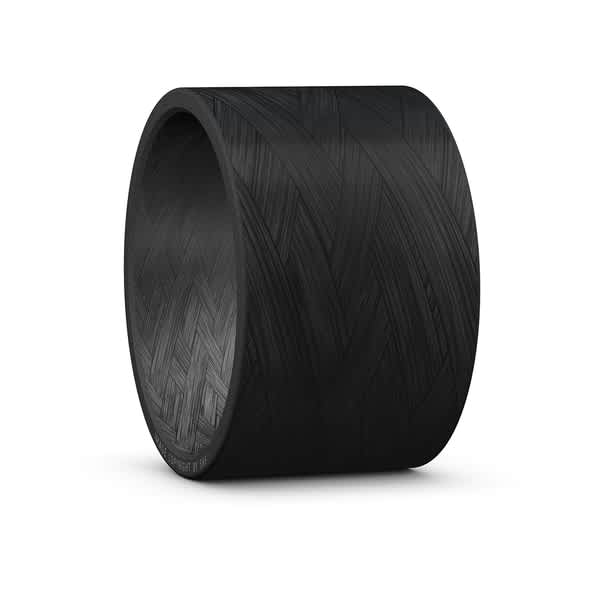

This bush is a filament-wound sleeve designed to locate and support rotating shafts in industrial equipment. It serves as a low-friction bearing surface for cylindrical shafts, providing stable guidance and wear resistance in machinery used across automation and mechanical systems.
Features and Benefits
- Filament-wound construction improves wear resistance and load distribution
Suits a 25mm shaft for accurate radial support
30mm outside diameter enables secure housing fit
20mm length offers Compact axial bearing support
Applications
- Suitable for linear actuator shaft support in automation assemblies
Ideal for rotary encoder shaft alignment in electronic equipment
Used with motor shafts in small electric drives
Can be used for guide sleeves in mechanical linkages
What shaft clearance should I expect during installation?
The sleeve is MADE for a 25mm shaft diameter, so installation clearance should follow standard press-fit or light-interference practices for a 25mm shaft to achieve proper radial positioning.
How does the material influence friction and service life?
The filament-wound composition provides a composite surface that balances low friction with structural resilience, reducing wear under sliding contact compared with plain metallic sleeves.
What housing bore size is required for mounting?
The component has an outside diameter of 30mm, so the housing bore should be fabricated to accept a 30mm external dimension using conventional retention or interference techniques.
How Compact is this bearing sleeve for constrained assemblies?
With an axial extent of 20mm, it delivers bearing support while occupying minimal length, making it suitable where space is limited.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
