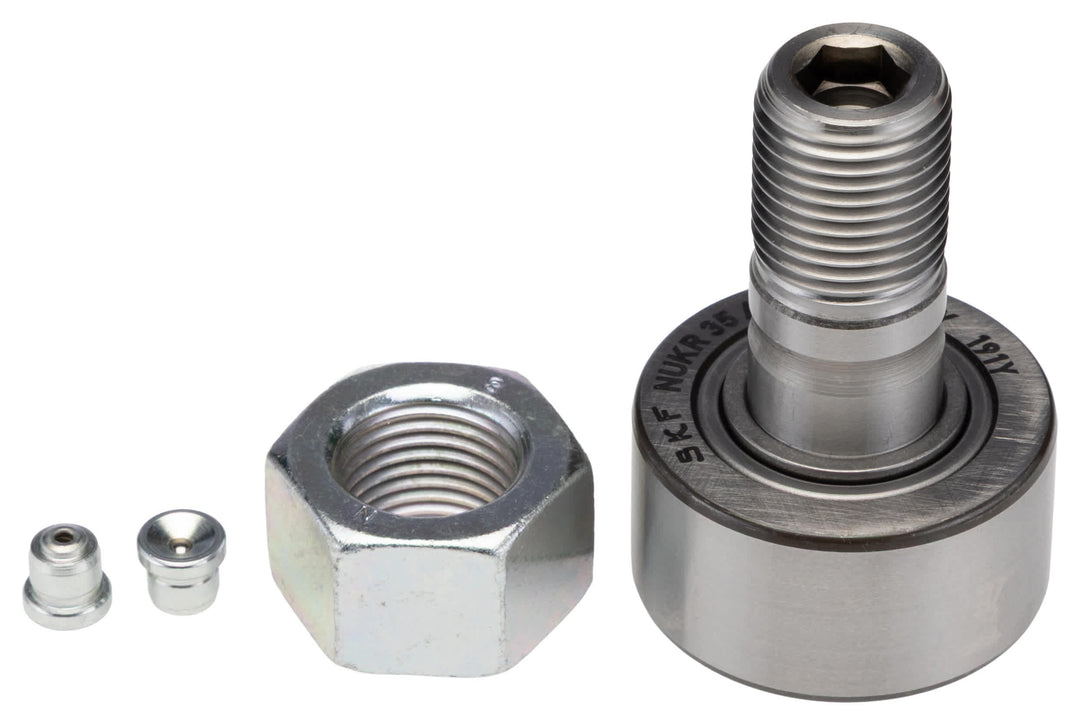

This track roller is a stud-mounted cam follower designed to guide and support linear and oscillating motion in industrial systems. It serves as a rolling contact component for assemblies where a rotating outer surface transmits loads while the internal stud secures the part to a frame. The product is suited to environments demanding Compact rolling elements with a crowned outer profile to aid alignment.
Features & Benefits
- Crowned outer profile reduces edge loading during misalignment
Stud-style mounting enables straightforward axial fastening
Dynamic capacity of 16.8 kN supports sustained operational loads
Static capacity of 17.6 kN resists heavy standstill loads effectively
**Applications**
- Suitable for conveyor guide rollers in automated lines
Ideal for reciprocating cam follower duties in machinery
Used with actuator linkages in electrical and mechanical assemblies
Can be used for guide elements in electronic equipment handling
What stud attachment is used for secure fixing in assemblies?
The component employs an integral stud that provides a robust mechanical connection for direct mounting to support structures, removing the need for additional adaptor hardware.
How does the crowned profile affect track engagement?
The convex roller contour concentrates contact towards the central band, enabling better self-alignment on slightly non-linear tracks and reducing the risk of flange edge wear.
What bore size is provided for compatibility with shafts or fittings?
The internal bore measures 16mm to accept compatible mounting pins or bushings within linked mechanisms.
How does the roller diameter influence rolling behaviour?
A 35mm outer diameter gives a balance between contact area and compactness, moderating surface pressure while maintaining a small package size.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
