Daikin Air Conditioning Daikin Altherma ERGA06DVA + EHBH08D6V Air to Water Heat pump Low Temperature Split 6Kw/19000Btu HO is listed for TieDex store sale under Daikin Air Conditioning Altherma Air Source Heat Pump. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.

Product Overview

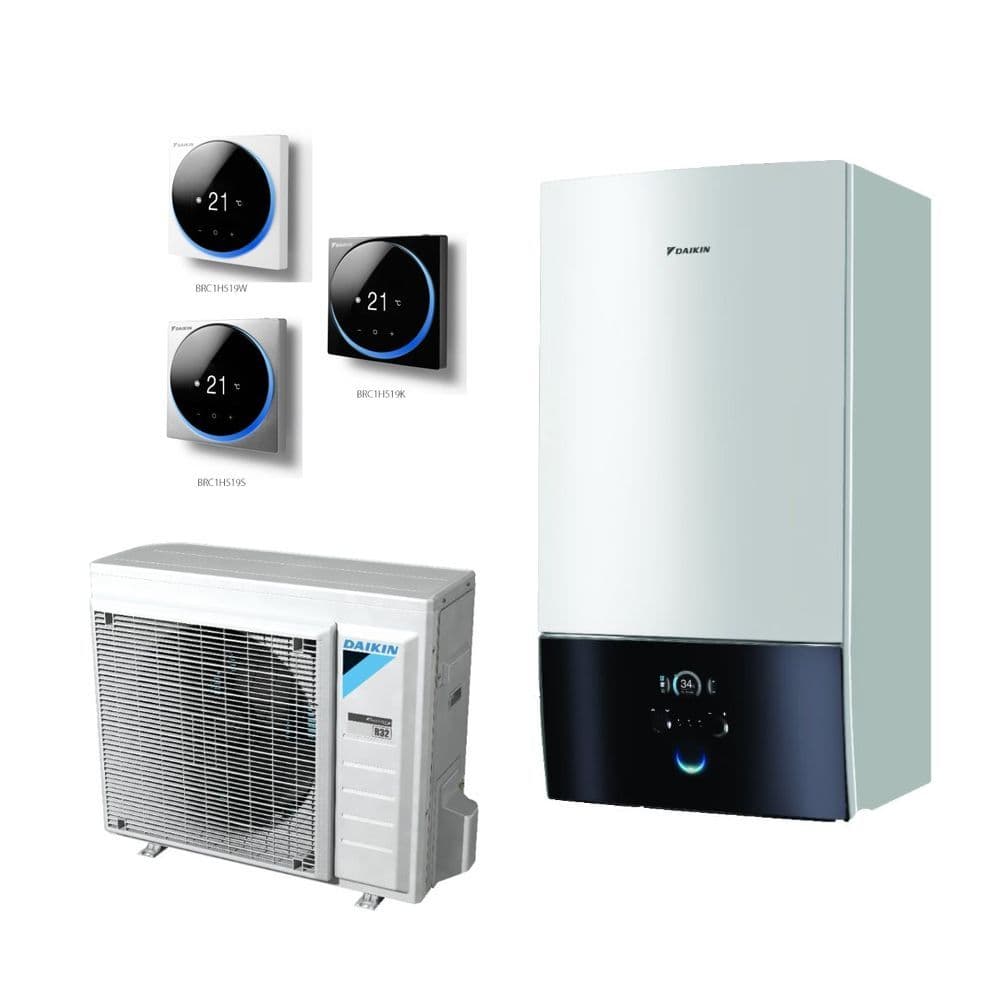

Daikin Altherma ERGA06DVA+EHBH08D6V Air to Water Heat pump Low Temperature Split 6Kw/19000Btu 240V HEATING ONLY This Kit Includes: Part Number Description ERGA06DVA+EHBH08D6V +BRC1HH Size 6KW Split Heating 1ph HEATING ONLY ERGA06DVA 6 kW outdoor unit R32 EHBH08D6V 6-8 kW equivalent indoor wall hung unit with 6kW BUH BRC1HHDW/DS/DK User Interface New generation of R32Altherma heat pump units, the first air to water heat pump powered by low global warming potential refrigerant R32 with Bluevolution technology with a A+++ rating. Delivers heating efficiency of a high 5.4 COP at 7-35ºC and a high performance low noise unit. Delivering temperatures of up to 65ºC at high efficiency, for reliable operation even in the coldest weather. Ease of installation with all hydraulic elements included in indoor unit. The refrigerant is charged in the outdoor unit for fast installation. Quick, remote commissioning via controller

configuration wizard. Smart comfort gives the user a stylish interface and precision control via the smartphone app. This unit is used for both heating and cooling applications. The unit can be combined with Daikin fan coil units, floor heating applications, low temperature radiators & domestic hot water tank. A remote controller user interface is supplied with the unit kit to control your installation. Key Product Features: Outdoor Units Single Phase ERGA06DVA Description 6kW, 1-phase, 230V Trade Unit Price £1,309.00 Dimensions Height x Width x Depth mm 740 x 884 x 388 Weight kg 58.5 Nominal capacity Heating (a/b) kW 6.00 / 5.90 Cooling (c/d) kW 5.96 / 4.87 Nominal input Heating (a/b) kW 1.24 / 1.69 Cooling (c/d) kW 1.06 / 1.33 Seasonal space heating efficiency* Space heating (Average climate) 35°C Class A++ Efficiency 176 SCOP 4.47 Space heating (Average

climate) 55°C Class A++ Efficiency 127 SCOP 3.25 COP Heating (a/b) 4.85 / 3.50 EER Cooling (c/d) 5.61 / 3.67 Operation range Heating °C -25~25 Cooling °C 10~43 Hot water °C -25~35 Sound pressure / power level Heating dBA 47 / 60 Cooling dBA 49 / 62 Refrigerant charge R-32 kg 1.5 Piping connections Liquid inches 1/4 Gas inches 5/8 Maximum piping length OU to IU m 30 Power supply 1-phase / 230V / 50Hz Recommended fuses A 16 Single Phase ERGA-DVA Low Temperature Split (R32) Heat Pump (outdoor) Indoor Unit (wall hung) Heating Only Single Phase EHBH08D6V Compatible outdoor unit ERGA06-08DVA Trade Unit Price £1,597.00 User interface (Must be ordered separately) BRC1HHD(W/S/K) Function Heating Only Dimensions H x W x D mm 840 x 440 x 390 Leaving water temperature range Heating °C 18 ~ 65 Cooling °C -

5 ~ 22 Pump No. of speeds Inverter controlled Expansion vessel volume litres 10 Minimum water volume litres 10 Water connections Inch 1” (female) Back-up heater nominal running current 4kW 1ph 230V A 17.4 6kW 1ph 230V A 26.1 Notes: i) Back-up heaters are three step control, 1 phase 2-4-6 kW and 3 phase 3-6-9 kW Accessories: Accessory Ref Description Trade Price BRC1HHDW Madoka Heating - White £84.00 BRC1HHDS Madoka Heating - Silver £84.00 BRC1HHDK Madoka Heating - Black £84.00 AFVALVE1 Anti-freeze valve for glycol free systems (two required per heat pump) £91.00 EKPCCAB4 PC cable – to upload field settings from PC to unit £215.00 EKRSC1 Optional remote temperature sensor for outdoor unit* £71.00 KRCS01-1 Optional remote temperature sensor for indoor unit* £54.00 EKRP1HBA Optional PCB kit for remote alarm monitoring, run and fault indication, solar interlock for heat

pump and bivalent operation £123.00 K.FF600ASN Pair of flexi-feet for mounting outdoor unit £55.00 K.HOSE750 Pair of flexible hoses (Length 750mm, 19mm tough PVC coated insulation, 1" FBSP x 28mm compression) £80.00 K.HOSE750EL Pair of flexible hoses with elbow (Length 750mm, 19mm tough PVC coated insulation, 1" FBSP x 28mm compression) £114.00 BRP069A62 Smart Comfort Controller £143.00 EKUMBPART 3rd party tank connection kit - Dry pocket sensor £210.00 K.ELECMETV Electric meter for domestic RHI - Single-phase (Metering for performance compliant) MID Class A electric meter to measure the electricity consumption of the Daikin Altherma heat pump £129.00 K.ELECMETW Electric meter for domestic RHI - Three-phase (Metering for performance compliant) MID Class A electric meter to measure the electricity consumption of the Daikin Altherma heat pump £230.00 PDF Data:

Key Details

• Brand / Vendor: Daikin Air Conditioning
• Product SKU: ERGA06DVA+EHBH08D6V
• MPN / Model: ERGA06DVA+EHBH08D6V
• Category: Daikin Air Conditioning Altherma Air Source Heat Pump
• Parent Category: Daikin Air Conditioning
• Condition: New
• Availability: InStock
