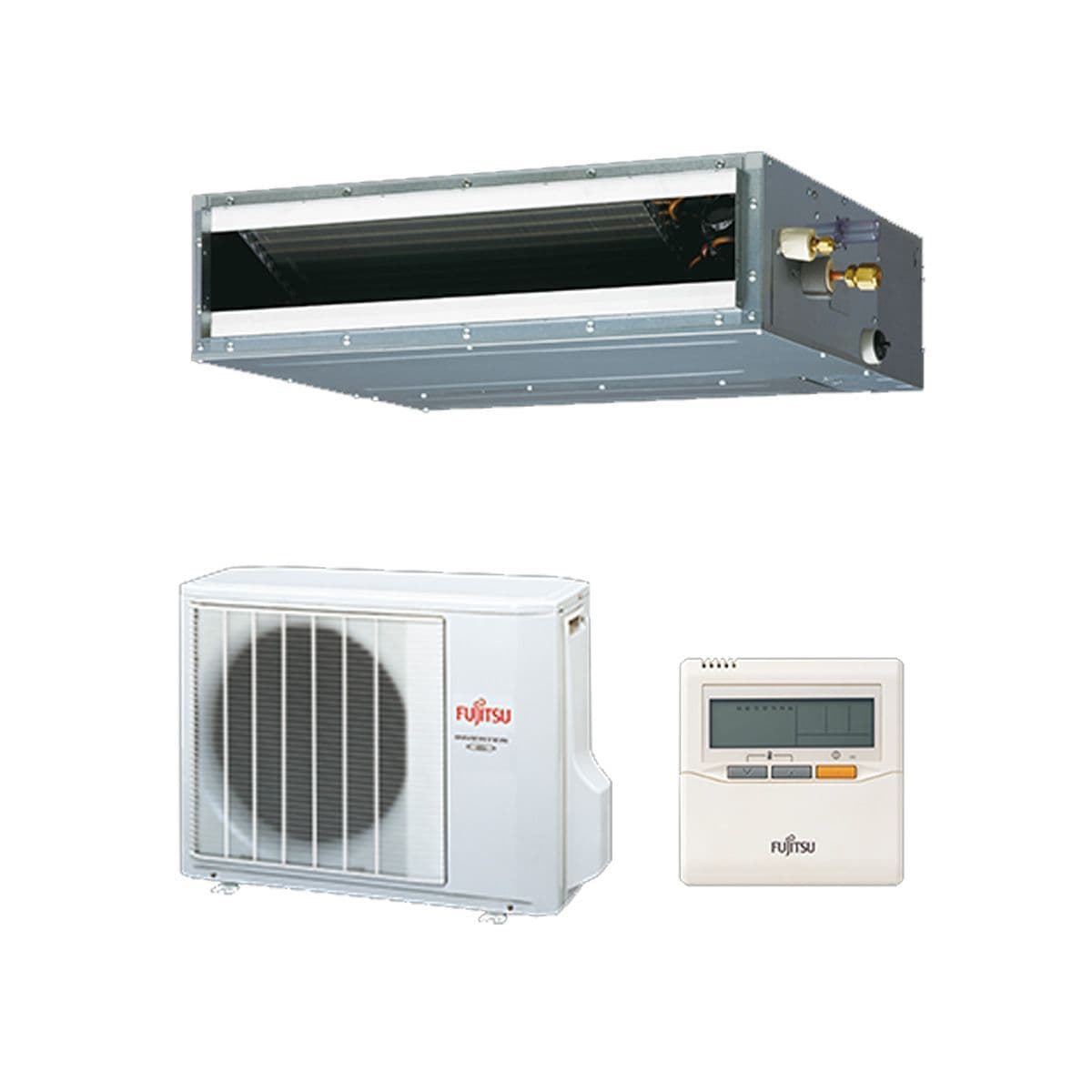

Fujitsu Air Conditioning ARYG14LLTB Slimline Convertible Concealed Duct Heat Pump Inverter (4Kw / 14000Btu) 240V~50Hz
Fujitsu Air Conditioning ARYG14LLTB Slimline Convertible Concealed Duct Heat Pump Inverter (4Kw / 14000Btu) 240V~50Hz is listed for TieDex store sale under Ducted Air Conditioning. The brand/vendor is Fujitsu Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
A convertible ducted unit that can be seated horizontally or vertically Perfect for areas where you want concealed air conditioning, the ARYG units are convertible and can be seated upright for floor based applications or mounted above a ceiling. The ARYG is Fujitsu air conditioning is designed for homes, offices, restaurants or shops, the unit operates at low noise levels and is virtually invisible when installed within a suspended ceiling. Its low unit height (198mm) and lightweight design also helps to make installation easier and more convenient. It's whisper quiet operation is ideal for master bedrooms, living rooms and other single room residential or commercial uses. Available in three sizes, it can be installed in a bulkhead for a different and attractive architectural finish or can be ducted within the space for total integration with the room. Fujitsu air conditioning
have developed a new DC inverter outdoor unit with a energy saving V-Ram circuit. The result is a compact and light outdoor unit with a reduced sized DC compressor which, in addition to providing greater performance, allows the appliance to heat up efficiently even when the outside temperature is very low. Unlike conventional systems, the Fujitsu inverter technology adapts the speed of the compressor to the needs of each moment, consuming only the energy required. This allows temperature swings to be reduced drastically and maintains a margin of between ±0,5ºC, providing greater room temperature stability and comfort. Key Product Features: Increased static pressure range Slim design for adaptable installation Dual concealed type Air intake direction can be selected Optional Auto Louver Grille Kit Compact and powerful Specification: Indoor ARYG14LLTB Outdoor AOYG14LALL N ominal Capacity (kW) Cooling 4.30 (0.90-5.40) Heating 5.00
(0.90-6.50) UK T o tal / Sensible Cooling * 3.97 / 2.90 P ow er Consu m p tion (kW) Cooling 1.33 Heating 1.34 EER / C OP ( N ominal Conditions) 3.21 / 3.71 Pdesign (kW) @ -10°C Cooling 4.30 Heating 4.50 SEER Cooling 5.80 S C OP Heating ( A v e r age) 3.90 (QH U J\ (IÀFLHQF\ &ODVV Cooling A+ Heating ( A v e r age) A Annual Ene r gy Consu m p tion (kWh/a) Cooling 259 Heating 1614 Moi s tu r e R em o val l/h 1.50 Dimensions (HxWxD) mm Inner 198x700x620 Ou t er 578x790x300 N e t W eight ( k g) Inner 19 Ou t er 40 R oom Air Ci r culation (high) m3/h Inner 800 Ou t er 1910 S tatic P r essu r e
Range ( S tanda r d) P a 0 t o 90 (25) P ow er Supply V -PH-Hz 230 / 1 / 50 P ow e r Suppl y T o Outdoor R unning Cu rr ent (A) Cooling 6.10 Heating 6.10 S t artin g Cur r ent A 6.10 Sugge s t ed MCB/ F use A 16 In t e r connecting Cable 3 + E R em o t e Cont r ol T ype Wi r ed Sound P r essu r e (dB(A) Cooling) Indoor Q/L/M/H 26 / 28 / 30 / 32 Outdoor H 49 Sound P ow er (dB(A) Cooling) Indoor H 60 Outdoor H 62 Ma x Pip e Length m 25 Max Height Diffe r ence m 15 R ef r ige r ant Cha r ge m 15
Additional R ef r ige r ant Cha r ge g/m 20 Pipe Size (in c hes) Gas 1/2 Li q uid 1/4 Ope r ating Range (OC) Cooling -10 ~ 46 Heating -15 ~ 24 R ef r ige r ant R410A Sy s t e m Li s t Price £ 1310 PDF Data Sheet: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Fujitsu Air Conditioning
- Product SKU: ARYG12LLTB-7997
- MPN / Model: ARYG12LLTB
- Category: Ducted Air Conditioning
- Parent Category: Air Conditioning
- Condition: New
- Availability: InStock
