Mitsubishi Electric Air Conditioning MSZ-EF50VGK ZEN Wall Mounted R32 5Kw/17000Btu Install Kit
Mitsubishi Electric Air Conditioning MSZ-EF50VGK ZEN Wall Mounted R32 5Kw/17000Btu Install Kit is listed for TieDex store sale under Mitsubishi Electric Air Conditioning MSZ-EF ZEN Wall Mounted. The brand/vendor is Mitsubishi Electric Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

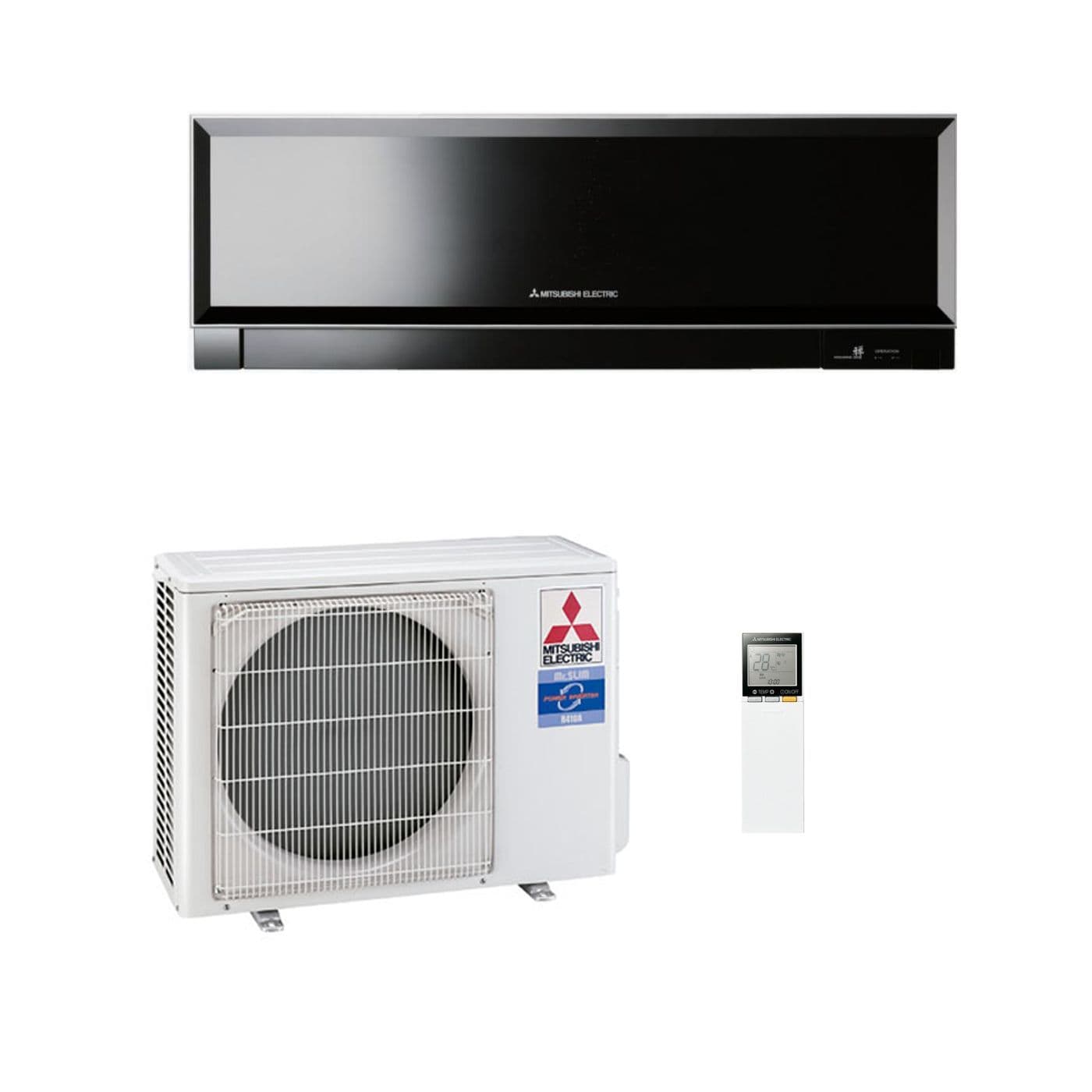

This package includes: 1 x MSZ-EF50VGK ZEN Wall Mounted R32 indoor unit with built in wi-fi 1 x MUZ-EF50VGK R32 Outdoor unit 1 x IR remote control with backlit display 15 Meters of 1/4" & 3/8" Pipes 15 Meters of cable for interconnecting cable 15 Meters of installation for pipes 1 X Pack of cable ties 1 x Premium Wall bracket for condensing unit A Rated energy product The new Mitsubishi Electric air conditioning Zen MSZ-EF R32 series are a stylish wall mounted system. Featuring the new Nano-Platinum filter system, these models also offer industry leading noise levels (as low as 21dBA* 1).and have a distinctively styled front panel that not only looks appealing but also helps to make cleaning of the unit easier. The Mitsubishi Electric Zen models come in three colours white, silver and black (colour option) and
use high COP inverter technology delivering economical air conditioning and heating with improved COP figures (4.59). Ideal for use in any size room, many units come equipped with a wide-angle airflow system, as well as an automatic swing vane, allowing airflow to be extended to every corner of a room. Designed to heat or cool small to medium sized applications, the Zen MSZ-EF R32 Series range provides a artistic and modern air conditioning solution. Unlike conventional models with a grilled air intake, wall mounted models feature a smoothly contoured, flat panel finish with a top air intake that not only improves aesthetics, but also helps to reduce noise as the heat exchanger area is fully covered. Alongside this, the wide diameter of the fan produces greater airflow at lower fan speeds and the uneven pitch between each fan blade helps
to eliminate unwanted noise. Now includes wi-fi as standard. Key Product Feature's: • High CoP, up to record 4.59 R32 • Advanced technology control • Infra-red controller • Slim artistic construction • Pipe runs up to 20 metres • Low noise – 21dBA on smaller models • Fault diagnosis • Auto re-start after power interruption • PRE-CHARGED WITH REFRIGERANT for up to 7 metres pipe length • Easy cleaned & serviced • Full ECA tax allowance • Built-in Wi-Fi interface enabling control and monitoring via the MELCloud app - now compatible with Alexa Technical Data: MSZ-EF B/S/W - INDOOR UNITS MSZ-EF50VGK B/S/W CAPACITY (kW) Heating (nominal) 5.8 (1.4-7.5) Cooling (nominal) 5.0 (1.4-5.4) Heating (UK) 4.82 (1.16-6.23) Cooling (UK) 4.96 (1.39-5.36) SHF (nominal) 0.70 COP / EER (nominal) 3.72 / 3.25 SCOP / SEER (BS EN14825) 4.5 / 7.5 ErP ENERGY
EFFICIENCY CLASS Heating/Cooling A+ / A++ AIRFLOW (l/s) Heating/Cooling - SLo-Lo-Mi-Hi-SHi 107-120-150-185-243 / 97-113-132-153-188 PIPE SIZE mm (in) Gas 9.52 (3/8”) Liquid 6.35 (1/4”) SOUND PRESSURE LEVEL (dBA) Heating/Cooling - SLo-Lo-Mi-Hi-SHi 30-33-37-43-49 / 30-33-36-40-43 SOUND POWER LEVEL (dBA) 60 DImENSIONS (mm) Width x Depth x Height 885 x 195 x 299 WEIGHT (kg) 11.5 ELECTRICAL SUPPLY Fed by Outdoor Unit FUSE RATING (BS88) – HRC (A) 6 INTERCONNECTING CABLE No. CORES 4 Notes: Black (B), Silver (S), White (W) Built-in Wi-Fi interface enabling control and monitoring via the MELCloud app - now compatible with Alexa MUZ-EF - OUTDOOR UNITS MUZ-EF50VG SOUND PRESSURE LEVEL (dBA) Heating/Cooling 52 / 52 SOUND POWER LEVEL (dBA) Cooling 65 WEIGHT (kg) 40 DImENSIONS (mm) Width x Depth x Height 800 x 285 x 714 ELECTRICAL SUPPLY 220-240v, 50Hz PHASE Single SYSTEm POWER INPUT (kW) Heating/Cooling
(nominal) Heating/Cooling (UK) 1.56 / 1.54 1.42 / 1.24 STARTING CURRENT (A) 7.1 SYSTEm RUNNING CURRENT (A) Heating/Cooling [MAX] 7.1 / 6.9 [13.6] FUSE RATING (BS88) – HRC (A) 16 mAINS CABLE No. CORES 3 mAX PIPE LENGTH (m) 30 mAX HEIGHT DIFFERENCE (m) 15 CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675) - 7m 1.05 / 0.71 mAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675) 0.46 / 0.31 Controller Set point Range: Mode Cooling Min-Max: 19ºC to 30ºC Mode Heating Min-Max: 17ºC to 28ºC Mode Auto Min-Max: 19ºC to 28ºC Operational Range: Cooling MUZ-LN/EF/AP operation range: -10°C to +46°C Heating MUZ-LN/EF/AP operation range: -15°C to +24°C Optional System Control Units: PAR-CT01MAA-SB/PB: Touch screen wired remote controller (PB = Premium Finish) PAR-40MAA : Standard wired remote controller MAC-334F: Interface for m-NET, mA remote
controller (PAR-40mAA / PAR-CT01mAA), on/off input and run/fault output MAC-397IF: Interface for mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input and run or fault output MELCOBEMS MINI modbus and BACnet mSTP CN105 adaptor MELCORETAIL MINI Retail control and input / output interface PDF Data: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Mitsubishi Electric Air Conditioning
- Product SKU: MSZ-EF50VGK-inst
- MPN / Model: MSZ-EF50VGK-inst
- Category: Mitsubishi Electric Air Conditioning MSZ-EF ZEN Wall Mounted
- Parent Category: Mitsubishi Electric Air Conditioning MS Wall Unit A+, A++,A+++
- Condition: New
- Availability: InStock
