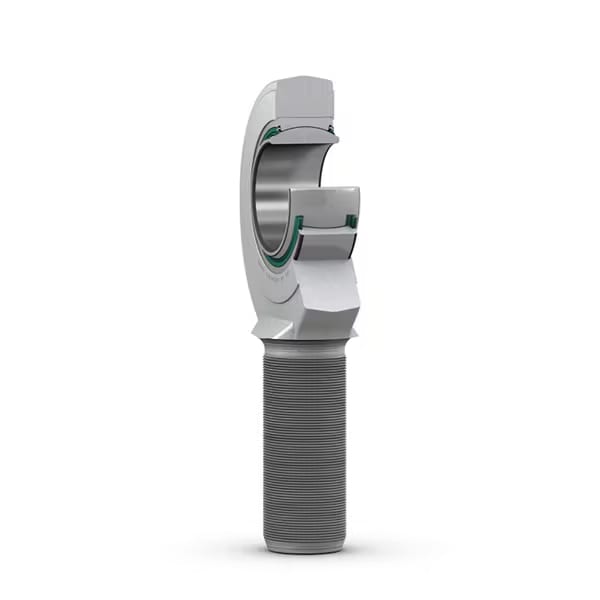

This rod end is a male type component designed for applications requiring high load capabilities. With a bore size of 35mm and an overall length of 84mm, this steel rod end is suitable for environments that demand robustness and reliability. The connection size features a metric threaded design of M36 x 3. With dynamic and static load ratings of 224kN and 110kN respectively, this product stands out in the realm of heavy-duty fittings.
Features & Benefits
- High dynamic load rating of 224,000 N ensures durability
Static load capability supports 110,000 N for reliability
Steel construction offers enhanced strength and resistance
Right-hand thread design facilitates easy installation
Compatible with metric threads for versatile applications
Compact dimensions promote efficiency in tight spaces
Applications
- Used in automation systems for precision movement
Employed in mechanical assemblies requiring secure connections
Suitable for in electrical and electronic machinery
Ideal for constructions where high load resistance is critical
What is the advantage of using a steel rod end in my application?
Steel rod ends provide superior strength and durability, making them Ideal for demanding environments where high loads are expected. Their robust construction ensures longevity, reducing maintenance needs.
How do I determine the correct connection thread for my setup?
The connection thread for this rod end is a metric M36 x 3 standard. Ensure compatibility with your existing components by checking thread specifications before installation.
What factors influence the load ratings of this rod end?
The load ratings are influenced by the material composition, design, and overall dimensions of the rod end. The steel construction and specific geometry contribute to its high dynamic and static load capacities.
Can this rod end be used in high-frequency applications?
Yes, the design is suitable for dynamic environments, allowing it to perform effectively in applications requiring repetitive motion while maintaining strength under varying loads.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
