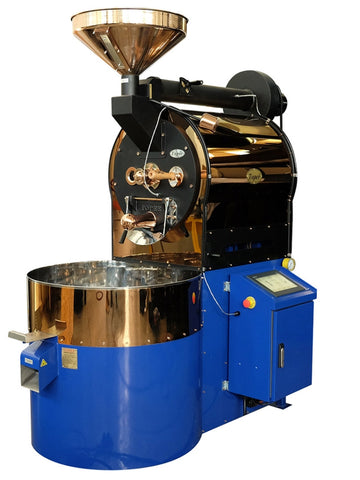

Toper TKMSX 20kg Gas Coffee Roaster – Professional Commercial Roasting Machine

High-Capacity Roasting. Reliable Performance. World-Class Quality.

The Toper TKMSX 20kg Gas Coffee Roaster is designed for roasteries and specialty coffee producers who need large-batch roasting with consistent results. With a 20kg batch capacity and the ability to roast while cooling another batch, the TKMSX 20 is ideal for handling short periods of heavy demand while ensuring quality and efficiency.

Built with industrial-grade components and advanced safety systems, this roaster combines durability, precision, and ease of use. Whether you’re running a busy micro-roastery, coffee shop, or wholesale roasting operation, the TKMSX 20 delivers performance that scales with your business.

Key Features & Benefits

✅ 20kg Batch Capacity – Roast up to 20kg of green coffee per cycle.
✅ High Output – Roast 150kg/hour (light roast) or 100kg/hour (dark roast).
✅ Efficient Roast Times – 10 minutes for brown roasts, 17 minutes for dark roasts.
✅ Simultaneous Roast & Cool – Integrated cooling tray with dual fans.
✅ Digital Thermostat & Control Panel – Monitor and manage bean mass temperature with precision and safety alerts.
✅ Manual Push-Button Operation – Simple, reliable control of drum, exhaust, heating, and cooling functions.
✅ Touch Profile System (Optional) – Upgrade for touchscreen roast management, roast curve profiling, and full Cropster/Artisan compatibility.
✅ Durable Double-Wall Drum – Ensures thermal stability and reduces risk of scorching.
✅ Certified & Compliant – Meets CE, UL, CSA, ETL, and GOST-R standards.
✅ Advanced Safety Features – Gas safety pilot system, mixer safety system, fire prevention options, and secure chaff collection.

Technical Specifications

• Model: TKMSX-20

• Batch Capacity: 20kg (44 lbs)

• Roast Time: 10–17 minutes (depending on roast profile)

• Hourly Capacity: 100–150kg roasted coffee

• Dimensions (W × H × D): 187 × 250 × 169 cm

• Weight: 600kg (1,323 lbs)

• Voltage Options: 100V / 110V / 220V / 230V / 380V / 415V, 50–60Hz, single or three-phase

• Fuel Source: LPG, LNG, or Natural Gas

• Motors: 5

• Power Consumption: 2 kW

• Exhaust Outlets:

  • 200mm (drum exhaust)

  • 2 × 100mm (cooling exhaust, can be combined)

• Required Air Volume: 850 m³/h

Standard Features

• Double-wall roasting drum for even heating

• Manual push-button controls with digital temperature display

• Three thermocouples (bean, burner, exhaust)

• Stand-alone chaff collector with easy discharge system

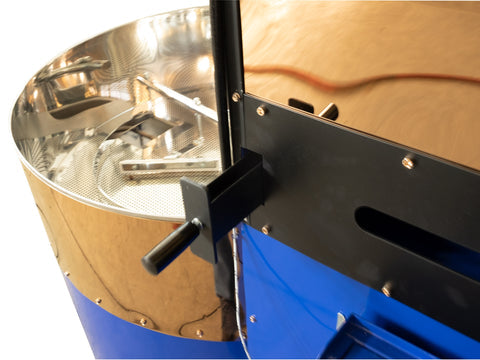

• Cooling tray with rake wheel and dual fans

• Adjustable exhaust airflow and flame length control

• Sight glass, sampler spoon, and control lamp

• Security drawer for beans

• Fire-safety water-injection fitting on chaff collector

• Startup & user manual (PDF sent before delivery)

• 1-year warranty (parts & labour)

Optional Upgrades

• Touch Profile System – touchscreen control, roast curve display, record & repeat, Ethernet connection for Cropster/Artisan.

• Data Bridge – adds PC connectivity for manual models.

• Drum & exhaust speed control (manual dial or touchscreen slider).

• Afterburner – reduce flue emissions.

• Destoner – remove debris and stones from roasted coffee.

• Loader – automatic green coffee feeding system.

Installation & Safety

• Ducting: Requires 200mm stainless-steel double-wall ducting rated for 538°C continuous / 760°C intermittent.

• Ventilation: Must be installed in a well-ventilated environment. A carbon monoxide detector is strongly recommended.

• Commissioning: Installation and gas connection must be completed by a Gas Safe certified engineer (UK).

• Delivery: Price includes crated delivery to premises. Moving, installation, and utility connections are the customer’s responsibility.

• Maintenance: Warranty excludes failures caused by poor cleaning (e.g., chaff build-up, blocked fans, drum misalignment). Regular maintenance as per the user manual is required.

Why Choose the Toper TKMSX 20kg Gas Coffee Roaster?

With its large capacity, advanced safety systems, and optional automated roast profiling, the Toper TKMSX 20kg Roaster is trusted worldwide by commercial roasters who require consistent, scalable, and professional roasting solutions.
