Toshiba Air Conditioning RAV-GM561ATP-E1 HM561FT-E Floor Mounted Cabinet 5Kw 1Ph A+
Toshiba Air Conditioning RAV-GM561ATP-E1 HM561FT-E Floor Mounted Cabinet 5Kw 1Ph A+ is listed for TieDex store sale under Toshiba Air Conditioning RAV Floor Mounted Cabinet. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

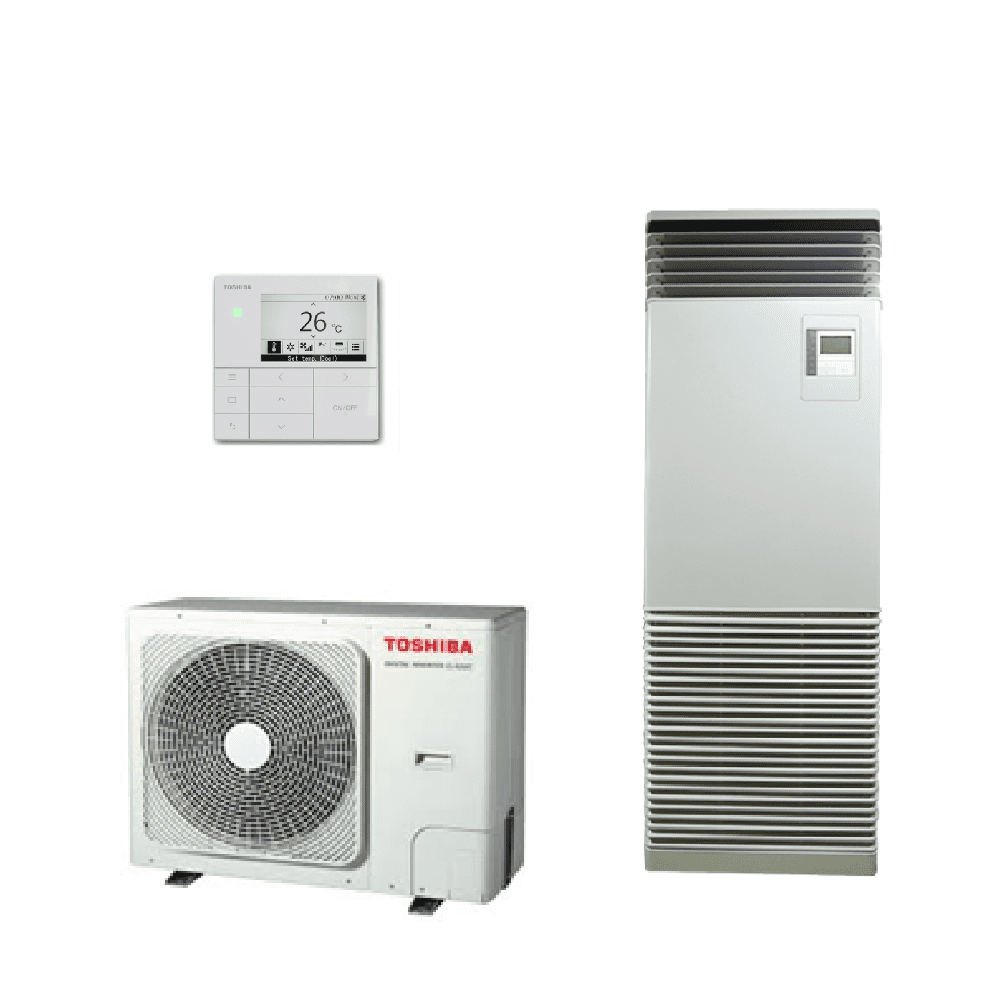

This Kit Includes: 1 × Toshiba RAV-HM561FT-E Floor Standing Indoor Unit – 5.0kW Cooling / 5.3kW Heating | A/A+ Efficiency | High Airflow Cabinet Design | 220-240V~50Hz 1 × Toshiba RAV-GM561ATP-E1 Digital Inverter Outdoor Unit – 5.0kW Cooling / 5.3kW Heating | Robust Operation | 220-240V~50Hz 1 × Toshiba RBC-AMSU52-E Wired Controller Compact High-Airflow Floor Standing Cabinet for Large Spaces The Toshiba RAV-HM561FT-E is a powerful floor-standing cabinet system designed for larger rooms with low ceilings where strong airflow, long throw, and quick temperature delivery are essential. Ideal for commercial and public environments such as receptions, shops, schools, halls and refurbishment projects, this stylish metal cabinet delivers robust performance with excellent A/A+ seasonal efficiency. With a rated 5.0kW cooling and 5.3kW heating capacity, the system uses Toshiba’s reliable Digital Inverter technology for precise modulation, reduced energy consumption, and quiet indoor
operation. The HM561FT-E includes automatic louvre control, 5 fan-speed settings and an inbuilt R32 leak-detection system for enhanced safety. The outdoor GM561ATP-E1 unit provides stable year-round performance with long pipe-run capability and a durable chassis suited to light-commercial duty. The cabinet design makes this system ideal for refurbishment, replacing older R410A/R22 equipment using existing pipework under Toshiba’s Replacement Technology. Key Product Features: • Floor-standing metal cabinet for high-airflow room conditioning • 5.0kW cooling / 5.3kW heating capacity • Automatic louvre control for all-season comfort • 5 selectable fan speeds with strong air throw • Suitable for large rooms with low ceilings • Very quiet indoor operation • Built-in controller (RBC-AMS55-ES) and wired controller included (RBC-AMSU52-E) • Embedded R32 leak detection with internal stirring fan • Digital Inverter Outdoor Unit for stable, efficient performance • Uses Toshiba Replacement Technology for legacy
pipework (R410A/R22/R407C) • Can be configured single / twin / triple / quad with matching outdoor units • Ideal for retail, offices, receptions, schools, halls and public buildings Technical Specifications: Indoor Unit – RAV-HM561FT-E Cooling Capacity: 5.0 kW Heating Capacity: 5.3 kW UK Cooling (Total/Sensible): 4.80 / 3.40 kW UK Heating: 3.79 kW SEER / SCOP / Energy Label: 5.25 – 4.00 / A – A+ Weight: 44 – 38 kg Dimensions (H × W × D): 1750 × 600 × 210 mm Airflow (High–Medium–Low): 228 – 194 – 167 l/s Sound Pressure (H–M–L): 46 – 42 – 38 dB(A) Pipe Connections (Gas–Liquid): 1/2″ – 1/4″ Min–Max Pipe Length / Height: 5 – 30 m / 30 m Charge-Free Length: 20 m Refrigerant / Additional Charge: R32 / 1.1 kg / 20 g/m Outdoor Unit – RAV-GM561ATP-E1 Cooling Capacity: 5.0
kW Heating Capacity: 5.3 kW Outdoor Dimensions (H × W × D): 550 × 780 × 290 mm Outdoor Weight: 23 – 38 kg Outdoor Airflow (High): 2400 – 667 m³/h Sound Pressure (Outdoor): 46 / 48 dB(A) Suggested Power & Fuse: 220-240V / 1Ph / 50Hz & 16A Interconnecting Cable: 3C+E Refrigerant: R32 Options: Model Description Price RBC-AX31U(W)-E Wireless Receiver Kit for 4-Way Cassette £191 RBC-AX33UYP-E Wireless Receiver Kit for 1-Way Cassette £57 RBC-AX31U-E Wireless Remote Controller Kit – Ceiling £211 RBC-AX31UMP-E Wireless Remote Controller Kit – Others (Exclude High Static Ducted) £317 RBC-AX31U1-E Wireless Receiver Kit for 4-Way Cassette £225 RBC-AX31UME-E Wireless Receiver Kit for Compact Cassette £141 RBC-AX31U4WE-E Wireless Remote Controller Kit for 2-Way Cassette £142 RBC-AX31U3MP-E Wireless Remote Controller Kit for Compact 4-Way White £185 RBC-AX31U3MPB-E Wireless Remote Controller Kit for Compact 4-Way Black £185 RBC-AX33U4PE-E
Wireless Receiver Kit for 4-Way Cassette (MMU-UP, 1HP-E & RAV-HM, 1UP-E) £185 RBC-AX41U-E Wireless Receiver Kit for 4-Way Cassette £225 RBC-AXU33UPB-E Wireless Remote Controller Kit (IR receiver + handset), Black £173 Model Description Price RBC-AS41E Simplified Remote Controller £106 RBC-ASCU11-E Compact Remote Controller £76 RBC-ASCU32YP-E Compact Remote Controller £81 RBC-AMT32E Standard Remote Controller £126 RBC-AMT32E2 Standard Remote Controller £126 RBC-AMT54E Standard Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52E Premium Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52U-E Premium Remote Controller C/W 24/7 Schedule Timer + Bluetooth £157 RBC-MTSC1 Mini Touch Screen Controller £272 RBC-MTSC2 Mini Touch Screen Controller C/W Schedule Timer £272 Model Description Price BMS-CT1280E Touch Screen Controller £4,189 BMS-CT2560U-E 256 Touch Screen Controller (Multi-Language) £6,143 BMS-CT5121E Touch Screen Controller £8,733 RBC-BP2 Black Pear BMS Controller £5,233 RBC-BP1 Black Pear Controller For BACnet £4,254 RBC-BPM1 Black Pear Controller
For Modbus £4,254 These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Toshiba Air Conditioning
- Product SKU: RAV-GM561ATP-E1 HM561FT-E
- MPN / Model: RAV-GM561ATP-E1 HM561FT-E
- Category: Toshiba Air Conditioning RAV Floor Mounted Cabinet
- Parent Category: Toshiba Air Conditioning
- Condition: New
- Availability: InStock
