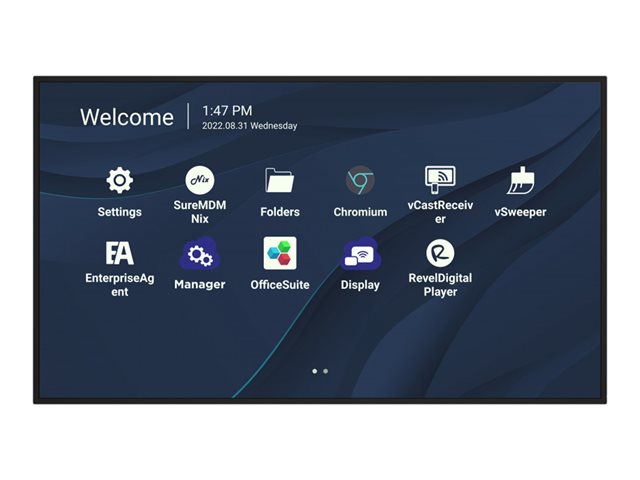

TieDex UK ViewSonic CDE9830 CDE30 Series - 98" LED-backlit LCD display - 4K - for digital signage

ViewSonic CDE9830 - 98" Diagonal Class CDE30 Series LED-backlit LCD display - digital signage - with built-in SoC media player - Android - 4K UHD (2160p) 3840 x 2160 - Direct LED

Basic Specifications

Manufacturer's Part Number

CDE9830

EAN

0766907017526

Product Type

LED-backlit LCD flat panel display with built-in SoC media player

Product Description

ViewSonic CDE9830 CDE30 Series - 98" LED-backlit LCD display - 4K - for digital signage

HDMI Ports Qty

3 ports

LCD Backlight Technology

Direct LED

Resolution

3840 x 2160

Image Aspect Ratio

16:9

Power Consumption Operational

190 Watt

Model

ViewSonic CDE9830

Speaker System

2 speakers

PC Interface

Serial RS-232, USB-C

Dimensions (WxDxH) - without stand

221.29 cm x 7.9 cm x 126.84 cm

Display Format

4K UHD (2160p)

USB

3 ports

Diagonal Class

98"

Video Interface

HDMI

Commercial Use

Digital signage

Environmental Standards

ENERGY STAR Qualified

Voltage

AC 100/240 V (50/60 Hz)

Technology

ADS

TV Tuner

No tuner

Weight

69.4 kg

Manufacturer Warranty

5-year warranty

Display Resolution

4K Ultra HD (2160p)

Input Video Formats

480p, 720p, 1080i, 1080p, 480i, 576i, 576p, 4K

Connectivity

LAN

Platform

Android

Storage Capacity

32 GB

Included Accessories

Remote control, remote control, batteries, wall mounting screw, RS232 adapter

Manufacturer Guarantee

5 Years

Frame Rate & Enhancement Technology

60 Hz Refresh Rate

Manufacturer Warranty

Service & Support

Limited warranty - parts and labour - 5 years - on-site

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 90% RH (non-condensing)

Video Features

Input Video Formats

480p, 720p, 1080i, 1080p, 480i, 576i, 576p, 4K

Remote Control

Type

Remote control

Battery Included

Yes

Audio System

Speaker System

2 speakers

Output Power / Total

32 Watt

Features

Audio Return Channel (ARC)

Speakers

2 x main channel speaker - 16 Watt

Stands & Mounts

Stand

Optional

Flat Panel Mount Interface

800 x 600 mm

VESA Compatibility

Yes

Media Player

Supported Video Formats

MPEG-1, MPEG-2, MPEG-4, Xvid, WMV, ASF, AVI, MKV, MOV, VOB, FLV, RM, TS, H.264, RMVB, DAT, TP, TRP, WebM, MPG, MPEG, OGM, 3GP

Supported Audio Formats

MP3, WMA, WAV, AC3, AAC, M4A, MP4

Supported Pictures Formats

BMP, PNG, JPEG

USB Port

Yes

USB Ports Qty

3

Configuration

ARM Cortex-A55 Quad-Core - 4 GB - 32 GB

Connections

Connector Type

3 x HDMI input ¦ RS-232 input ¦ HDMI output ¦ USB-C with 65W Power Delivery ¦ SPDIF output ¦ LAN ¦ USB 2.0 ¦ USB 3.0

Display

LCD Display Technology

ADS

Colour Support

1070000000 colours

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Image Aspect Ratio

16:9

Frame Rate & Enhancement Technology

60 Hz Refresh Rate

LCD Backlight Technology

Direct LED

Coating

Anti-glare, 3H Hard, 25% haze

Image Contrast Ratio

1200:1

Dynamic Contrast Ratio

5000:1

Brightness

500 cd/m²

Viewing Angle

178 degrees

Viewing Angle (Vertical)

178 degrees

Response Time

8 ms

Backlight Life

50,000 hour(s)

Operation Hours / Days

24 / 7

Features

Dimming Control (DCR), Open Pluggable Specification slot, Crestron Connected Compatible, Flicker free technology, OPS Slot, ViewBoard Cast software, WiFi slot, 1.07 billion colours (8-bit+FRC)

General

Product Type

LED-backlit LCD flat panel display

Power Consumption Operational

190 Watt

Diagonal Class

98"

Commercial Use

Yes - digital signage

Combined With

Built-in SoC media player

Series

CDE30 Series

Platform

Android

Operating System

Android OS 11

TV Tuner

No tuner

TV Tuner Presence

No

Video Interface

HDMI

HDMI Ports Qty

3 ports

PC Interface

Serial RS-232, USB-C

Modes

Portrait mode, landscape mode

Design

Sleek Design

Dimensions

Without stand

Width

221.29 cm

Depth

7.9 cm

Height

126.84 cm

Weight

69.4 kg

Miscellaneous

Included Accessories

Remote control, batteries, wall mounting screw, RS232 adapter

Cables Included

HDMI cable - 3 m ¦ USB-C cable - 1.8 m

Compliant Standards

ICES-003, CB, FCC, WEEE, cTUVus, REACH, UkrSEPRO, ERP, EAC, RCM, CE/EMC, Mexico Energy label, TPCH, Mexico CoC, RoHS DoC, Mexico NOM, CA65, SCIP, Annex II (EU) 2015/863, TUV flicker free

Power

Power Device

Power supply

Input Voltage

AC 100/240 V (50/60 Hz)

Power Consumption (Off Mode)

0.5 Watt

Dimensions & Weight (Shipping)

Width (Shipping)

236 cm

Depth (Shipping)

28 cm

Height (Shipping)

142.5 cm

Weight (Shipping)

90.3 kg

Network & Internet Multimedia

Connectivity

LAN

LAN Protocol

Fast Ethernet

Sustainability Information

ENERGY STAR Certified

Yes

ENERGY STAR Version

8.0
