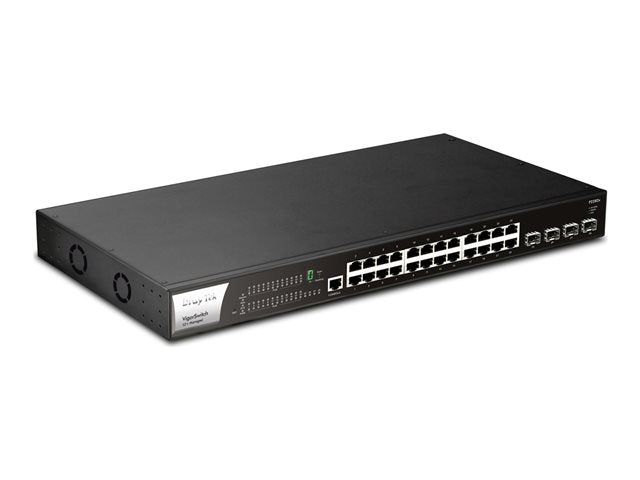

TieDex UK Draytek VigorSwitch P2282X - switch - 24 ports - Managed - rack-mountable

Draytek VigorSwitch P2282X - Switch - L3 - Managed - 24 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+ - desktop, rack-mountable - PoE+ (400 W)

Basic Specifications

Manufacturer's Part Number

VSP2282X-K

EAN

4710484746405

Manufacturer Warranty

2-year warranty

Weight

4.26 kg

Product Description

Draytek VigorSwitch P2282X - switch - 24 ports - Managed - rack-mountable

Model

Draytek VigorSwitch P2282X

Dimensions (WxDxH)

44 cm x 28.1 cm x 4.4 cm

Localisation

United Kingdom, Ireland

Features

VLAN support, IGMP snooping, port mirroring, STP support, RSTP support, VRRP support, MSTP support, ACL support, QoS, DHCP server, MLD snooping, reset button, LACP support, DHCP relay, loop prevention, port isolation, GVRP, ONVIF support, Protocol-based VLANs support, Storm Control, ARP inspection, Link Aggregation, rate limit, MAC address authentication, AAA, IGMP querier, Voice VLAN, VLAN management, Guest VLAN, MAC based VLAN, 12KB packet buffer, VLAN Tagging, MLD querier, UDP support, TCP support, PoE scheduling, VLAN / port mapping, loop detection, static route, PoE PD auto detection, Surveillance VLAN, DoS protection, LLDP, MAC-based Access Control (MAC), QinQ VLAN, stacking scan button

Power

AC 100-240 V

Device Type

Switch - 24 ports - L3 - Managed

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Capacity

VLAN IDs: 4096 ¦ Queues: 8 ¦ Link aggregation groups: 8 ¦ MAC addresses: 16000 ¦ Routing tables: 500 ¦ Multicast groups: 256

MAC Address Table Size

16K entries

Subtype

Gigabit Ethernet / 10 Gigabit Ethernet

Performance

Switching capacity: 128 Gbps ¦ Forwarding rate: 95.2 Mpps

Enclosure Type

Rack-mountable 1U

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI, ICMP, IPv4, IPv6

Jumbo Frame Support

12KB

Ports

24 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+

PoE Budget

400 W

Power Over Ethernet (PoE)

PoE+

General

Device Type

Switch - 24 ports - L3 - Managed

Enclosure Type

Desktop, rack-mountable 1U

Subtype

Gigabit Ethernet / 10 Gigabit Ethernet

Ports

24 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+

Power Over Ethernet (PoE)

PoE+

PoE Budget

400 W

Performance

Switching capacity: 128 Gbps ¦ Forwarding rate: 95.2 Mpps

Capacity

VLAN IDs: 4096 ¦ Queues: 8 ¦ Link aggregation groups: 8 ¦ MAC addresses: 16000 ¦ Routing tables: 500 ¦ Multicast groups: 256

MAC Address Table Size

16K entries

Jumbo Frame Support

12KB

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI, ICMP, IPv4, IPv6

Authentication Method

RADIUS, TACACS+

Features

VLAN support, IGMP snooping, port mirroring, STP support, RSTP support, VRRP support, MSTP support, ACL support, QoS, DHCP server, MLD snooping, reset button, LACP support, DHCP relay, loop prevention, port isolation, GVRP, ONVIF support, Protocol-based VLANs support, Storm Control, ARP inspection, Link Aggregation, rate limit, MAC address authentication, AAA, IGMP querier, Voice VLAN, VLAN management, Guest VLAN, MAC based VLAN, 12KB packet buffer, VLAN Tagging, MLD querier, UDP support, TCP support, PoE scheduling, VLAN / port mapping, loop detection, static route, PoE PD auto detection, Surveillance VLAN, DoS protection, LLDP, MAC-based Access Control (MAC), QinQ VLAN, stacking scan button

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Status Indicators

Power, alert, PoE

Dimensions & Weight

Width

44 cm

Depth

28.1 cm

Height

4.4 cm

Weight

4.26 kg

Miscellaneous

Cables Included

Power cable (UK) ¦ Console cable

Rack Mounting Kit

Included

MTBF

1570.95 hours

Compliant Standards

RoHS, IEEE 802.1Q, IEEE 802.1x, UKCA

Localisation

United Kingdom, Ireland

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Expansion / Connectivity

Interfaces

24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x Gigabit / 10Gbit LAN SFP ¦ 1 x console RJ-45

Power

Power Device

Internal power supply

Voltage Required

AC 100-240 V

Power Consumption Operational

460.4 Watt

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

10 - 90% RH (non-condensing)

Min Storage Temperature

-20 °C

Max Storage Temperature

70 °C

Humidity Range Storage

5 - 90% RH (non-condensing)
