TieDex UK Emulex 16Gb (Gen 6) FC Single-port HBA - host bus adapter - PCIe 3.0 x8 - 16Gb Fibre Channel
Prix régulier
£851.92
£851.92
Prix régulier
Prix réduit
£851.92
£851.92
Épargnez <span class=money>£-851.92</span>
/
- Free UK Mainland Delivery & Returns
- Ship From UK
- Carbon neutral
- Secure payments
- En stock
- En rupture de stock, expédition prochainement

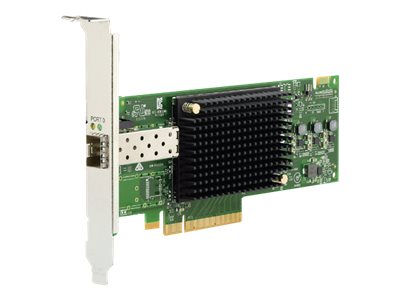

Emulex 16Gb (Gen 6) FC Single-port HBA - Host bus adapter - PCIe 3.0 x8 low profile - 16Gb Fibre Channel - for ThinkSystem SR250; SR530; SR630 V2; SR645; SR650 V2; SR665; SR850 V2; ST250; ST650 V2
Basic Specifications
- Manufacturer's Part Number
- 01CV830
- EAN
- 4058154241837
- Designed For
- NeXtScale nx360 M5; System x3500 M5; x3550 M5; x3650 M5; x3750 M4; x3850 X6; x3950 X6; ThinkSystem SR250; SR530; SR590; SR630; SR630 V2; SR645; SR650; SR650 V2; SR665; SR850 V2; ST250; ST550; ST650 V2
- Manufacturer Warranty
- 1-year warranty
- Product Description
- Emulex 16Gb (Gen 6) FC Single-port HBA - host bus adapter - PCIe 3.0 x8 - 16Gb Fibre Channel
- Model
- Emulex 16Gb (Gen 6) FC Single-port HBA
- Dimensions (WxDxH)
- 16.8 cm x 6.9 cm
- Processor
- 1 x Emulex
- Device Type
- Host bus adapter
- Performance
- Maximum IOPS: 1600000
- System Requirements
- Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 12, VMware vSphere 5.5 update 2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 11 SP3 for AMD64/EM64T, VMware vSphere 5.5 update 3, VMware vSphere 6.0 update 1, VMware vSphere 6.0 update 2, Red Hat Enterprise Linux 7 Update 2, Red Hat Enterprise Linux 7 Update 1, Red Hat Linux Enterprise Server 6 Update 7 x64 Edition
- Ports
- 16Gb Fibre Channel
- Form Factor
- Plug-in card - low profile
- Data Transfer Rate
- 14.025 Gbps
- Data Link Protocol
- 4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel
- Interface (Bus) Type
- PCI Express 3.0 x8
Compatibility Information
- Designed For
- Lenovo NeXtScale nx360 M5 5465 ¦ Lenovo System x3500 M5 5464 ¦ Lenovo System x3550 M5 5463, 8869 ¦ Lenovo System x3650 M5 5462, 8871 ¦ Lenovo System x3750 M4 8753 ¦ Lenovo System x3850 X6 6241 ¦ Lenovo System x3950 X6 6241 ¦ Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR530 7X08 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 7X02 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 7X06 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem ST250 ¦ Lenovo ThinkSystem ST550 7X10 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
General
- Device Type
- Host bus adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 3.0 x8
Dimensions & Weight
- Depth
- 16.8 cm
- Height
- 6.9 cm
Miscellaneous
- Included Accessories
- Low-profile bracket, full-height bracket, 16 Gb shortwave Fibre Channel SFP+ LC transceiver
- MTBF
- 10,000,000 hour(s)
- Compliant Standards
- ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, FCC Part 15 A, BSMI Class A, VCCI Class A, MSIP Class A, China RoHS, RCM, RoHS 2011/65/EU, EN55022:2010 Class A, AS/NZS CISPR22:2009+A1 Class A, EN 55024:2010, EN 55032:2012, EN60950-1+A11+A1+A12+A2
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Networking
- Ports
- 16Gb Fibre Channel
- Connectivity Technology
- Wired
- Data Link Protocol
- 4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel
- Fibre Channel
- FC-DA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-Tape, FCP-4, FCP-2, FC-PI-2, FC-GS-5, FCP-3, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-HBA, FC-PI-5, FC-LS-2, FC-DA-2, SSC-2, SBC-2, SPC-3, FC-PI-6, SBC-3, SPC-4, SSC-4
- Data Transfer Rate
- 14.025 Gbps
- Performance
- Maximum IOPS: 1600000
- Features
- QoS, SR-IOV, FEC, MSI-X
Expansion / Connectivity
- Interfaces
- 1 x 16Gb Fibre Channel - SFP+
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Software / System Requirements
- OS Required
- Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 12, VMware vSphere 5.5 update 2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 11 SP3 for AMD64/EM64T, VMware vSphere 5.5 update 3, VMware vSphere 6.0 update 1, VMware vSphere 6.0 update 2, Red Hat Enterprise Linux 7 Update 2, Red Hat Enterprise Linux 7 Update 1, Red Hat Linux Enterprise Server 6 Update 7 x64 Edition
Processor / Memory
- Processor
- 1 x Emulex
