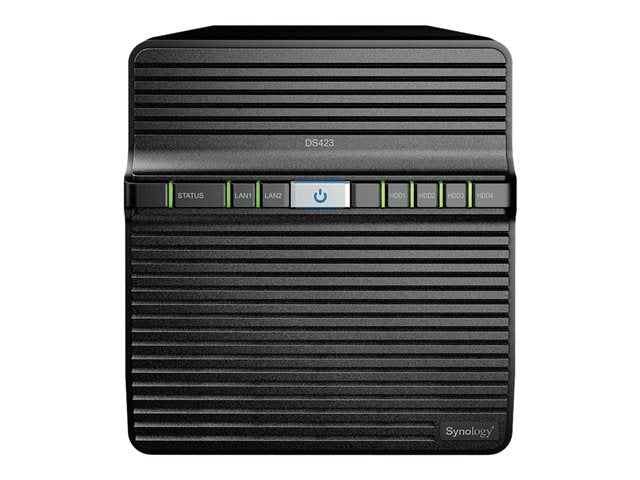

TieDex UK Synology Disk Station DS423 - NAS server

Synology Disk Station DS423 - NAS server - 4 bays - SATA 6Gb/s - RAID JBOD, RAID 0, 1, 5, 6, 10 - RAM 2 GB - Gigabit Ethernet - iSCSI support

Basic Specifications

Manufacturer's Part Number

DS423

EAN

4711174724918

RAM

2 GB

Manufacturer Warranty

2-year warranty

Product Type

NAS server

Networking

10Mb LAN, 100Mb LAN, 1GbE

Weight

2.21 kg ()

Product Description

Synology Disk Station DS423 - NAS server

Model

Synology Disk Station DS423

Dimensions (WxDxH)

16.8 cm x 23 cm x 18.4 cm

Processor

1 x Realtek Semiconductor RTD1619B 1.7 GHz (Quad-Core)

Power

AC 100-240 V (50/60 Hz)

Storage Controller

RAID SATA 6Gb/s RAID JBOD, RAID 0, 1, 5, 6, 10

Device Type

NAS server

Installed Devices / Modules Qty

0 (installed) / 4 (max)

Storage Operating System

Synology DiskStation Manager

Host Connectivity

Gigabit Ethernet

IP Cameras Supported

30

Manufacturer Guarantee

2 years

General

Device Type

NAS server

Host Connectivity

Gigabit Ethernet

Total Storage Capacity

0 GB

Installed Devices / Modules Qty

0 (installed) / 4 (max)

Width

16.8 cm

Depth

23 cm

Height

18.4 cm

Weight

2.21 kg ()

Built-in Devices

2 x fans

Miscellaneous

Cables Included

2 x network cable

Features

Power recovery, scheduled power on/off, security lock slot (cable lock sold separately)

Security Slot Type

Kensington security slot

Compliant Standards

FCC, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, RoHS

Included Accessories

Accessory pack, power cable

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Networking

Data Link Protocol

10Mb LAN, 100Mb LAN, 1GbE

Remote Management Protocol

HTTP, HTTPS, SNMP, LDAP

Network Services Compatibility

Server Message Block (SMB), Apple File Protocol (AFP), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), FTP, Calendaring Extensions to WebDAV (CalDAV), Web-based Distributed Authoring and Versioning (WebDAV), Microsoft CIFS

Features

Hardware encryption, Link Aggregation, failover protection, wake on LAN (WOL), wake on WAN (WOW), SSD trim, Synology Hybrid RAID, RAID migration, NFS Kerberos authentication, Windows ACL, Syslog support, VPN Server, DLNA Media Server

Expansion / Connectivity

Expansion Bays

4 (total) / 4 (free) x hot-swap - 2.5" / 3.5"

Interfaces

2 x USB 3.2 Gen 1 - Type A ¦ 2 x Ethernet 1000Base-T - RJ-45

Power

Power Device

External power adapter

Voltage Required

AC 100-240 V (50/60 Hz)

Power Consumption Operational

32.41 Watt

Power Consumption Stand by

4.97 Watt

Power Provided

90 Watt

Storage Controller

Type

RAID

Interface Type

SATA 6Gb/s

RAID Level

JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

5 - 95% RH

Sound Emission

20.6 dBA

Processor / Memory

Processors Installed

1 x Realtek Semiconductor RTD1619B 1.7 GHz

Number of Cores

Quad-Core

Max Supported Qty

1

RAM

2 GB DDR4

Software / System Requirements

Storage Operating System

Synology DiskStation Manager

Security DVR

IP Cameras Supported

30

Compression Format

H.264, H.265

Image Resolution

1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160
