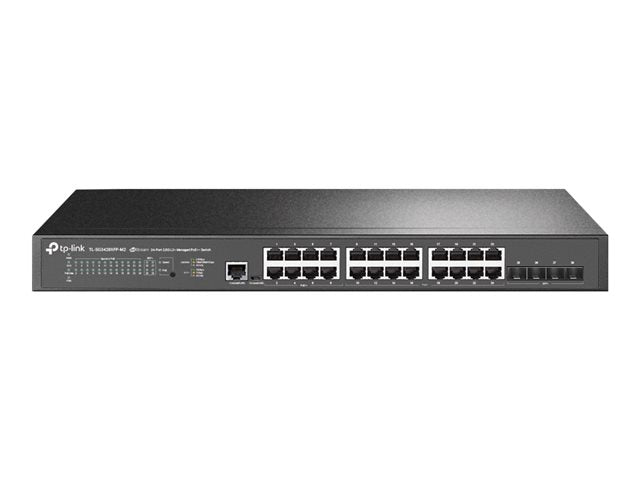

TieDex UK TP-Link JetStream TL-SG3428XPP-M2 V1 - switch - 24 ports - Managed - rack-mountable

TP-Link JetStream TL-SG3428XPP-M2 V1 - Switch - L2+ - Managed - 16 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2500 (PoE++) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE++ (500 W)

Basic Specifications

Manufacturer's Part Number

TL-SG3428XPP-M2

EAN

4897098689769

Product Description

TP-Link JetStream TL-SG3428XPP-M2 V1 - switch - 24 ports - Managed - rack-mountable

Model

TP-Link JetStream TL-SG3428XPP-M2 V1

Dimensions (WxDxH)

44 cm x 33 cm x 4.4 cm

Features

Flow control, BOOTP support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, LLDP support, DHCP relay, Port Security, MIB, MVR, port isolation, CoS, SP, tagged VLAN, 802.1x authentication, DSCP support, 3 fans, MAC and IP-based ACLs support, Storm Control, system log, IP source guard, ARP inspection, BPDU, Link Aggregation, MIB II, dual image support, SDN, fast leave, AAA, Voice VLAN, IPMB, Private VLAN, Guest VLAN, VLAN group, ZTP, EEE, BPDU Filter, WRR, HOL Blocking Prevention, loopback detection, MAB, queue scheduling support, schedule reboot, DSCP prioritisation, DHCPv6 snooping, LLDP-MED

Power

AC 100-240 V (50/60 Hz)

Device Type

Switch - 24 ports - L2+ - Managed

Compliant Standards

IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt

Capacity

IP interfaces: 32 ¦ Packet buffer size: 16 MB ¦ Static routes: 48 ¦ IGMP groups: 511 ¦ Priority queues: 8 ¦ Maximum aggregation groups: 8 ¦ Layer 2 multicast filtering profiles: 256 ¦ VLAN groups: 4000 ¦ MAC addresses per port: up to 64 ¦ Static ARP entries: 128

MAC Address Table Size

32K entries

Subtype

2.5 Gigabit Ethernet

Performance

Switching capacity: 200 Gbps ¦ Packet forwarding rate: 148.80 Mpps

Enclosure Type

Rack-mountable

Routing Protocol

IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP

System Requirements

UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, RSTP, TACACS+, RADIUS, MIB

Jumbo Frame Support

9KB

Ports

16 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2500 (PoE++) + 4 x 10 Gigabit SFP+

PoE Budget

500 W

Power Over Ethernet (PoE)

PoE++

General

Device Type

Switch - 24 ports - L2+ - Managed

Enclosure Type

Rack-mountable

Subtype

2.5 Gigabit Ethernet

Ports

16 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2500 (PoE++) + 4 x 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE++

PoE Budget

500 W

Performance

Switching capacity: 200 Gbps ¦ Packet forwarding rate: 148.80 Mpps

Capacity

IP interfaces: 32 ¦ Packet buffer size: 16 MB ¦ Static routes: 48 ¦ IGMP groups: 511 ¦ Priority queues: 8 ¦ Maximum aggregation groups: 8 ¦ Layer 2 multicast filtering profiles: 256 ¦ VLAN groups: 4000 ¦ MAC addresses per port: up to 64 ¦ Static ARP entries: 128

MAC Address Table Size

32K entries

Jumbo Frame Support

9KB

Routing Protocol

IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, RSTP, TACACS+, RADIUS, MIB

Encryption Algorithm

SSL, SSL 3.0, TLS 1.2

Authentication Method

Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Flow control, BOOTP support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, LLDP support, DHCP relay, Port Security, MIB, MVR, port isolation, CoS, SP, tagged VLAN, 802.1x authentication, DSCP support, 3 fans, MAC and IP-based ACLs support, Storm Control, system log, IP source guard, ARP inspection, BPDU, Link Aggregation, MIB II, dual image support, SDN, fast leave, AAA, Voice VLAN, IPMB, Private VLAN, Guest VLAN, VLAN group, ZTP, EEE, BPDU Filter, WRR, HOL Blocking Prevention, loopback detection, MAB, queue scheduling support, schedule reboot, DSCP prioritisation, DHCPv6 snooping, LLDP-MED

Compliant Standards

IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt

RAM

256 MB

Flash Memory

32 MB

Status Indicators

Status

Dimensions & Weight

Width

44 cm

Depth

33 cm

Height

4.4 cm

Miscellaneous

Included Accessories

Rubber feet

Rack Mounting Kit

Included

Compliant Standards

FCC, RoHS

Expansion / Connectivity

Interfaces

16 x 10/100/1000/2.5G RJ-45 PoE+ - 30 W ¦ 8 x 10/100/1000/2.5G RJ-45 PoE++ - 60 W ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x micro-USB console

Power

Power Device

Internal power supply

Voltage Required

AC 100-240 V (50/60 Hz)

Power Consumption Operational

629.1 Watt

Power Consumption Stand by

24.2 Watt

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 90% RH (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Storage

5 - 90% RH (non-condensing)

Software / System Requirements

OS Required

UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11
