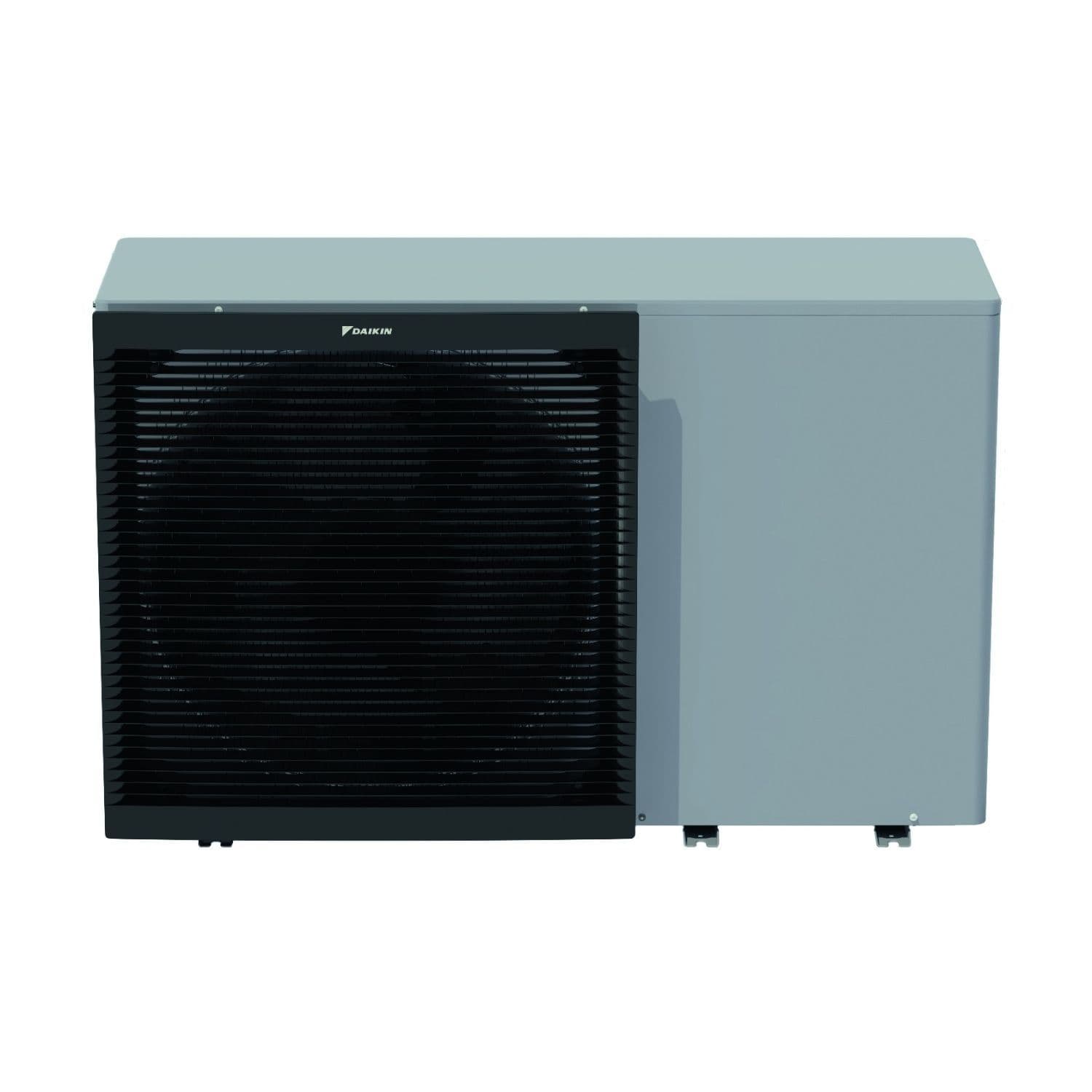

Daikin Air Conditioning Daikin EDLA09D3W1 Altherma 3 Monobloc Air to Water Heating and Cooling 9Kw/30000Btu A+++ 415V
Daikin Air Conditioning Daikin EDLA09D3W1 Altherma 3 Monobloc Air to Water Heating and Cooling 9Kw/30000Btu A+++ 415V is listed for TieDex store sale under Daikin Air Conditioning Altherma Air Source Heat Pump. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
This Kit Includes: 1 X Daikin EDLA09D3W1 Altherma 3 Monobloc Air to Water Heating and Cooling 9Kw/30000Btu A+++ 415V 3Ph 1 x BRC1HHDK - User interface controller The Daikin EDLA09D3W1 Altherma 3 Monobloc Class 9 is a highly efficient air-to-water heating and cooling system, delivering 9Kw/30000Btu with an A+++ energy rating. Designed with a sleek, modern aesthetic, it features a black front grill that conceals the fan, minimizing sound perception. The light grey casing reflects its surroundings, helping the unit blend seamlessly into any decor. This monobloc unit integrates all necessary hydraulic parts, eliminating the need for an indoor unit and making it ideal for installations where indoor space is limited. This third-generation monobloc unit from Daikin utilizes the eco-friendly R-32 refrigerant and features a single, larger fan that replaces the typical double fan used in high-capacity units. The fan's
redesigned shape reduces contact surface with air, enhancing air circulation and lowering sound levels. Capable of operating in temperatures as low as -25°C, the Altherma 3 ensures reliable heating down to -20°C, delivering a leaving water temperature (LWT) of 60°C at -7°C. This makes it suitable for a variety of applications, including renovations, replacements, and large new buildings. The Daikin Altherma 3 Monobloc can be combined with domestic hot water systems, enhancing its versatility. The optional W-LAN cartridge connection allows for remote control and monitoring, adding a layer of convenience. This system supports underfloor heating and heat pump convectors (HPC), making it adaptable to various heating and cooling needs. Its monobloc setup allows for installation under windows, providing a space-saving solution without compromising performance. The Altherma 3 Monobloc is equipped with an integrated 3 kW heater, providing additional heating capacity
during extremely low outdoor temperatures. This backup heater also serves as a safeguard in case of unit malfunction and offers freeze protection for the outdoor water piping during winter. This ensures that the system remains operational and efficient even in the harshest conditions, providing peace of mind and consistent comfort. Overall, the Daikin EBLA09D3V3 Altherma 3 Monobloc offers a comprehensive solution for heating and cooling needs, combining advanced technology with user-friendly design. Its energy efficiency, low noise operation, and versatile application options make it a top choice for both residential and commercial settings. Whether for new installations or upgrades, this unit delivers reliable performance and superior comfort. Key Product Features: Separate back-up heater kit Possible to combine with domestic hot water Energy efficient heating and cooling system based on air to water heat pump technology Possible to combine with domestic
hot water W-LAN cartridge connection (optional) Monobloc all-in-one concept including hydraulic parts 3 phase 415V~50HZ Specification: COP 4.91 , 3.71 Compressor component Main power supply Phase 3N~ Voltage V 400 Dimensions Unit Depth 460 mm Height 870 mm Width 1380 mm Fan Air flow rate Heating High 48.0 m³/min Heater capacity Step 1 3 kW Heating capacity Nom. 9.37 , 9 kW Operation range Domestic hot water Ambient Min. 35 °CDB Water side Min. 55 °C Heating Water side Min. 60 °C Power input Heating Nom. 1.91 , 2.43 kW Power supply Frequency Hz 50 Name W1 Phase 3~ Voltage V 400 Refrigerant Charge 3.8 kg 2.57 tCO2Eq GWP 675 Type R-32 Space heating Average climate water outlet 35°C General SCOP @ 4.72 Seasonal space heating eff. class A+++ Average climate water outlet 55°C General SCOP @ 3.39 Seasonal space
heating eff. class A++ Weight Unit 149 kg
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: EDLA09D3W1
- MPN / Model: EDLA09D3W1
- Category: Daikin Air Conditioning Altherma Air Source Heat Pump
- Parent Category: Daikin Air Conditioning
- Condition: New
- Availability: InStock
