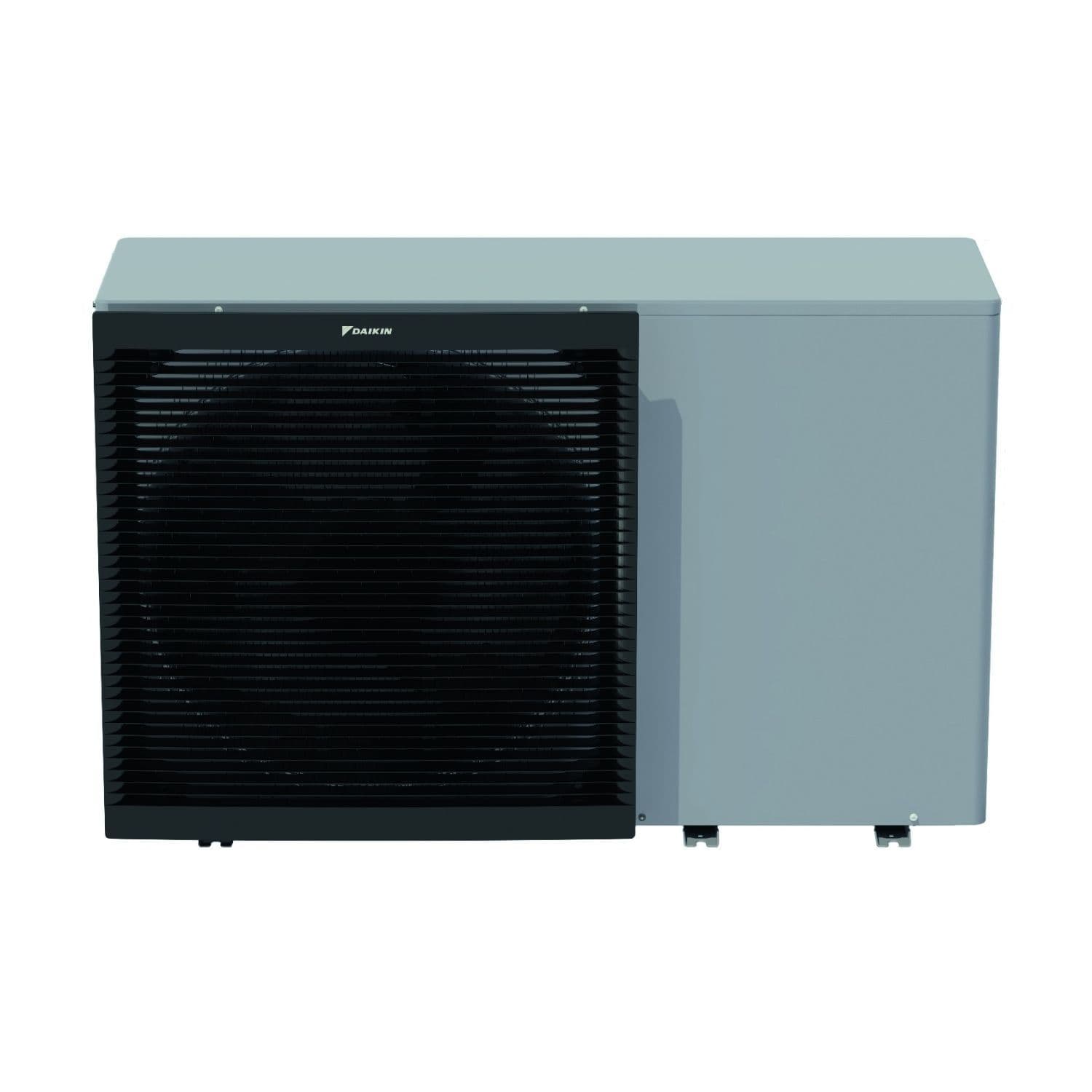

Daikin Air Conditioning Daikin EDLA14D3V3 Altherma 3 Monoblock Air to Water Heat Pump 13Kw/44000Btu A+++.

Daikin Air Conditioning Daikin EDLA14D3V3 Altherma 3 Monoblock Air to Water Heat Pump 13Kw/44000Btu A+++.

Daikin Air Conditioning Daikin EDLA14D3V3 Altherma 3 Monoblock Air to Water Heat Pump 13Kw/44000Btu A+++. is listed for TieDex store sale under Daikin Air Conditioning Altherma Air Source Heat Pump. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.

Product Overview

Daikin EBLA14DA3V3 Altherma 3 Monoblock Ait to Water Heat Pump 13Kw/44000Btu A+++. Heating only air to water monobloc system, ideal when indoor space is limited This Kit Includes: 1 X EBLA11DA3V3 HEATING ONLY Outdoor heat pump 1 x BRC1HHDK - User interface controller The Daikin Altherma 3 M is the Daikin’s first third generation monobloc, benefiting from a new design and using the R-32 refrigerant. The black front grill made of horizontal lines is hiding the fan from view, reducing the perception of the sound produced by the unit. The light grey casing is slightly reflecting the environment where the unit is installed, helping it to blend in in any decor.The single fan is slightly larger, replacing the usual double fan for high capacity units. The shape of the fan has also been reviewed to reduce the contact surface with

air therefore lower the sound level by improving the air circulation.Thanks to the monobloc set-up, no indoor unit is required which helps when space is limited inside. The monobloc can even fit under a window. The Altherma 3 is designed for operation temperatures down to -25°C outside temperature with guaranteed heating capacities down to -20°C while delivering LWT 60°C at -7°C. This product is suitable for renovations, replacement, and large new buildings. Can be used with in combination with underfloor heating applications and with heat pump convectors Daikin Altherma HPC. The units are delivered with an integrated 3 kw heater for additional heating capacity during low outdoor temperatures. The backup heater also serves as a backup in case of malfunctioning of the unit and for freeze protection of the outside water piping during winter time. Key Product Features: W-LAN cartridge

connection (optional) Possible to combine with domestic hot water tanks Heating only air-to-water heat pump Monobloc all-in-one concept including all hydraulic parts Available with Built-in 3 kW electric back-up heater for additional heating or with a separate back-up heater kit Available in one phase and three phase Specification: Model: EBLA14DA3V3 Heating capacity Nom. kW 12.0 (1), 12.5 (2) Cooling capacity Nom. kW 12.8 (3), 12.7 (4) Heater capacity Step 1 kW 3 Power input Cooling Nom. kW 4.06 (3), 2.51 (4) Heating Nom. kW 2.46 (1), 3.42 (2) COP 4.87 (1), 3.64 (2) EER 3.16 (3), 5.04 (4) Dimensions Unit Height Mm 870 Width Mm 1,380 Depth Mm 460 Weight Unit kg 149 Refrigerant Type R-32 GWP 675.0 Charge kg 3.80 Charge TCO2Eq 2.57 Compressor component Main power supply Phase 1~ Voltage V 230 Power supply Name V3 Phase 1~

Frequency Hz 50 Voltage V 230 Notes (1) - Condition: Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) - Condition: Ta DB/WB 7°C/6°C - LWC 45°C (Dt=5°C) (3) - Cooling: EW 12°C; LW 7°C; ambient conditions: 35°CDB (4) - Cooling: EW 23°C; LW 18°C; ambient conditions: 35°CDB (5) - According to EN14825 (6) - For more details, see operation range drawing (7) - Depends on operation mode, refer to installation manual. Accessories: NO BUH BUH H/O REV H/O REV EDLA- DV3/W1 EBLA- DV3/W1 EBLA- D3V3/3W1 EBLA- D3V3/3W1 Type Material name Madoka, remote user interface BRC1HHDW/S/K • • • • WLAN cartridge BRP069A78 • • • • Room thermostat (wired) EKRTWA • • • • Room thermostat (wireless) EKRTR1 • • • • External sensor EKRTETS • • • • Demand PCB EKRP1AHTA • • • • Digital I/O

PCB EKRP1HBAA • • • • Bi-Zone kit (watts kit) BZKA7V3 • • • • Anti-freeze valve AFVALVE1 • • • • Flow switch EKFLSW1 • (1) • (1) • (1) • (1) BY-pass kit EKMBHBP1 • BUH-kit EKLBUHCB6W • • Third party tank kit EKHY3PART • (2) • (2) • (2) • (2) Third party tank kit EKHY3PART2 • (3) • (3) • (3) • (3) Remote indoor sensor KRCS01-1 • • • • Remote outdoor sensor EKRSCA-1 • • • • PC USB cable EKPCCAB4 • • • • PDF Data:

Key Details

• Brand / Vendor: Daikin Air Conditioning
• Product SKU: EBLA14DA3V3
• MPN / Model: EBLA14DA3V3
• Category: Daikin Air Conditioning Altherma Air Source Heat Pump
• Parent Category: Daikin Air Conditioning
• Condition: New
• Availability: OutOfStock
