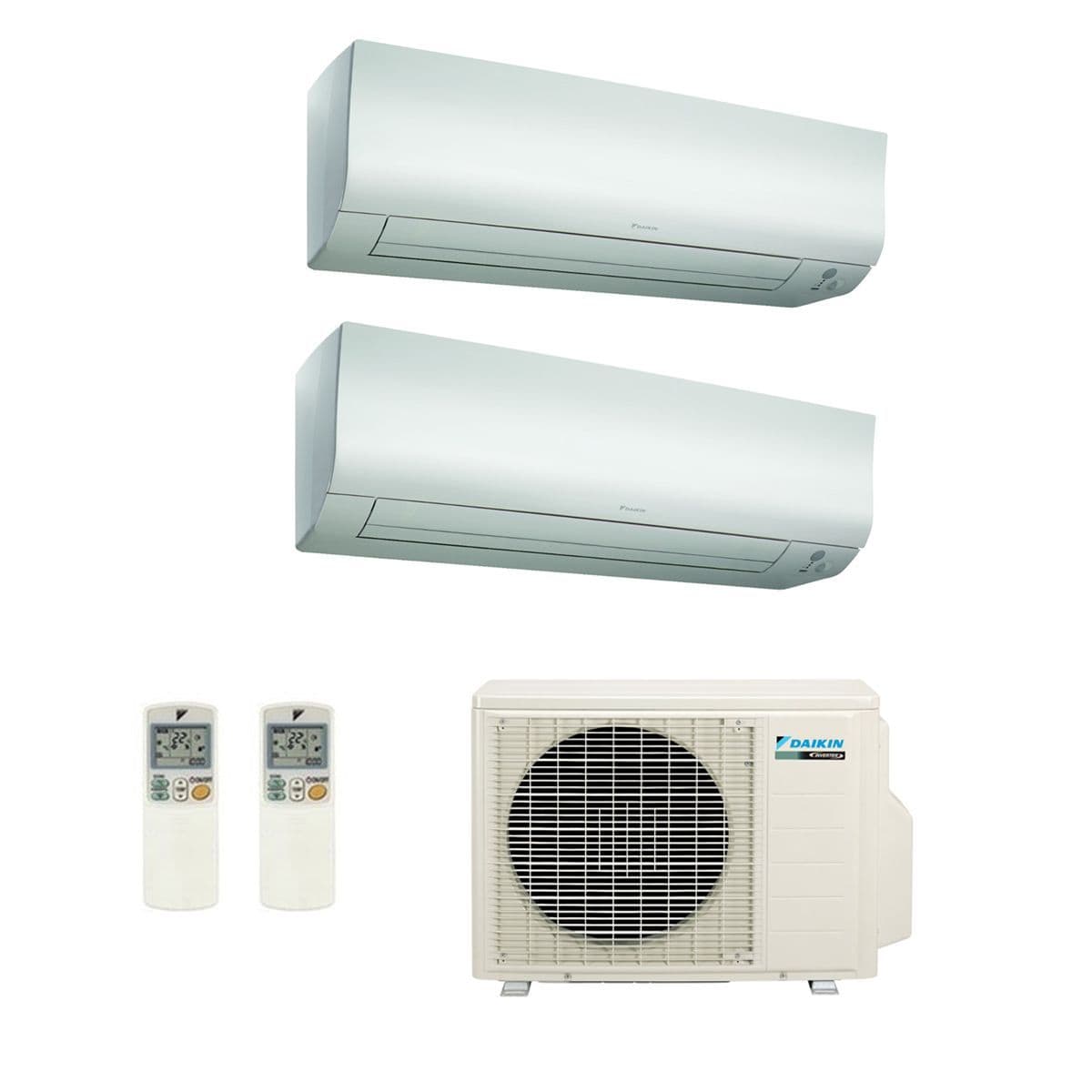

Daikin Air conditioning Multi 1 x 2MXM50A 2 x FTXM42R 4.2Kw Wall Mounted Heat Pump R32 A+ 240V~50Hz
Daikin Air conditioning Multi 1 x 2MXM50A 2 x FTXM42R 4.2Kw Wall Mounted Heat Pump R32 A+ 240V~50Hz is listed for TieDex store sale under Daikin MXS Multi Air Conditioning Inverter Heat Pump A+++. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Daikin Air conditioning Multi 1 x 2MXM50A 2 x FTXP42M9 4.2Kw Wall Mounted Heat Pump R32 A+ 240V~50Hz A+ Rated energy product This Kit Includes: 1 x 2MXM50A 5kw / 18000Btu Inverter Heat Pump Condensing unit 2 port 240V 50Hz 1 x FTXP42M9 4.2kw / 14000 Btu Heat pump wall Indoor Unit 2 x Remote controllers ARC480A53 The variable capacity R32 multi systems are ideal for light commercial and residential applications, having the highest SCoP and low start currents, ideal where there is limited power supply. The Inverter outdoor units are suitable for 2 connected indoor units, depending on the model. Each indoor unit is connected directly by a pair of small diameter refrigerant pipes to the outdoor unit. There are no branch joints involved. All connected indoor units operate in the same mode, i.e. either all Heating, or all
Cooling. There are many permutations of connectible indoor units to each outdoor unit. These are listed below. The cooling and heating data is based on all connected units operational at the same time at full load. In practise the load in each room is unlikely to be at 100% continuously, so the available spare capacity is then shared to other units accordingly. Daikin air conditioning has been manufacturing multi systems for residential applications for many years. The latest state-of-the-art Inverter technology is now applied to the range, delivering exceptionally high efficiency, as well as variable individual unit control for stable and comfortable conditions. Product Key Feature's: • High sCoP • 1 Outdoor unit saving space • Energy saving inverter • New advanced technology control • Infra-red controller with wall mounting bracket • Reduced height slim construction • Pipe runs up
to 30 metres total • Low noise – 19dBA on smaller models • Back-up switch for loss of controller • Cold draft prevention on heat pump start up • Fault diagnosis • Auto re-start after power interruption • PRE-CHARGED WITH REFRIGERANT for up to 20 metres pipe length OUTDOOR UNIT: Compressor Type Hermetically sealed swing compressor Dimensions Unit Depth 350 mm Height 552 mm Width 852 mm Operation range Cooling Ambient Min. 46 °CDB Piping connections Additional refrigerant charge 0.02 (for piping length exceeding 20m) kg/m Level difference IU OU Max. 7.5 m Total piping length System Actual 30 m Power supply Frequency 50 Hz Phase 1~ Voltage 220-240 V Refrigerant Charge 1.15 kg GWP 675 Type R-32 Sound pressure level Cooling Nom. 50 dBA Weight Unit 41 kg INDOOR UNITS: Casing Colour White Control systems Infrared remote control ARC466A67
Wired remote control BRC073A1 Dimensions Unit Depth 272 mm Height 295 mm Width 778 mm Fan Air flow rate Cooling High 11.9 m³/min Medium 9.0 m³/min Low 6.5 m³/min Silent operation 4.3 m³/min Heating High 12.4 m³/min Medium 9.7 m³/min Low 6.5 m³/min Silent operation 4.9 m³/min Piping connections Drain 18 Gas OD 9.50 mm Liquid OD 6.35 mm Power input Cooling Nom. 0.034 kW Heating Nom. 0.038 kW Power supply Frequency 50 Hz Name V1 Phase 1~ Voltage 220-240 V Sound power level Cooling 60 dBA Heating Heating 60 dBA Sound pressure level Cooling High 45 dBA Low 30 dBA Medium 39 dBA Silent operation 21 dBA Heating High 45 dBA Low 29 dBA Medium 39 dBA Silent operation 21 dBA Weight Unit 10.0 kg PDF Data: Accessor ies: Accessory Ref Description BRC073 Wired remote control - connection cable
required BRP069B45 Wi-fi adaptor for connection to on-line controller BRCW901A03 3m extension cord required for wired remote controller BRC073 BRCW901A08 8m extension cord required for wired remote controller BRC073 K.CWB90-2 Wall bracket (90kg, 500mm support arm) K.DT1 Condensate drip tray for use with Split ODU - tray width 800mm K.CGS Condensing unit guard (750 x 1050 x 460) K.CGM Condensing unit guard (1150 x 1150 x 650) KLIC-DDV3 KNX interface for Split type systems KRP413A1S Adaptor PCB for remote on/off control - constant/ pulse contact KRP928A2S Adaptor PCB for interface to Daikin centralised control systems RTD-RA Adaptor PCB for Modbus connection and/or extended system functions These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we
will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: 2MXM50A 2 x FTXM42R
- MPN / Model: 2MXM50A 2 x FTXM42R
- Category: Daikin MXS Multi Air Conditioning Inverter Heat Pump A+++
- Parent Category: Daikin Air Conditioning
- Condition: New
- Availability: InStock
