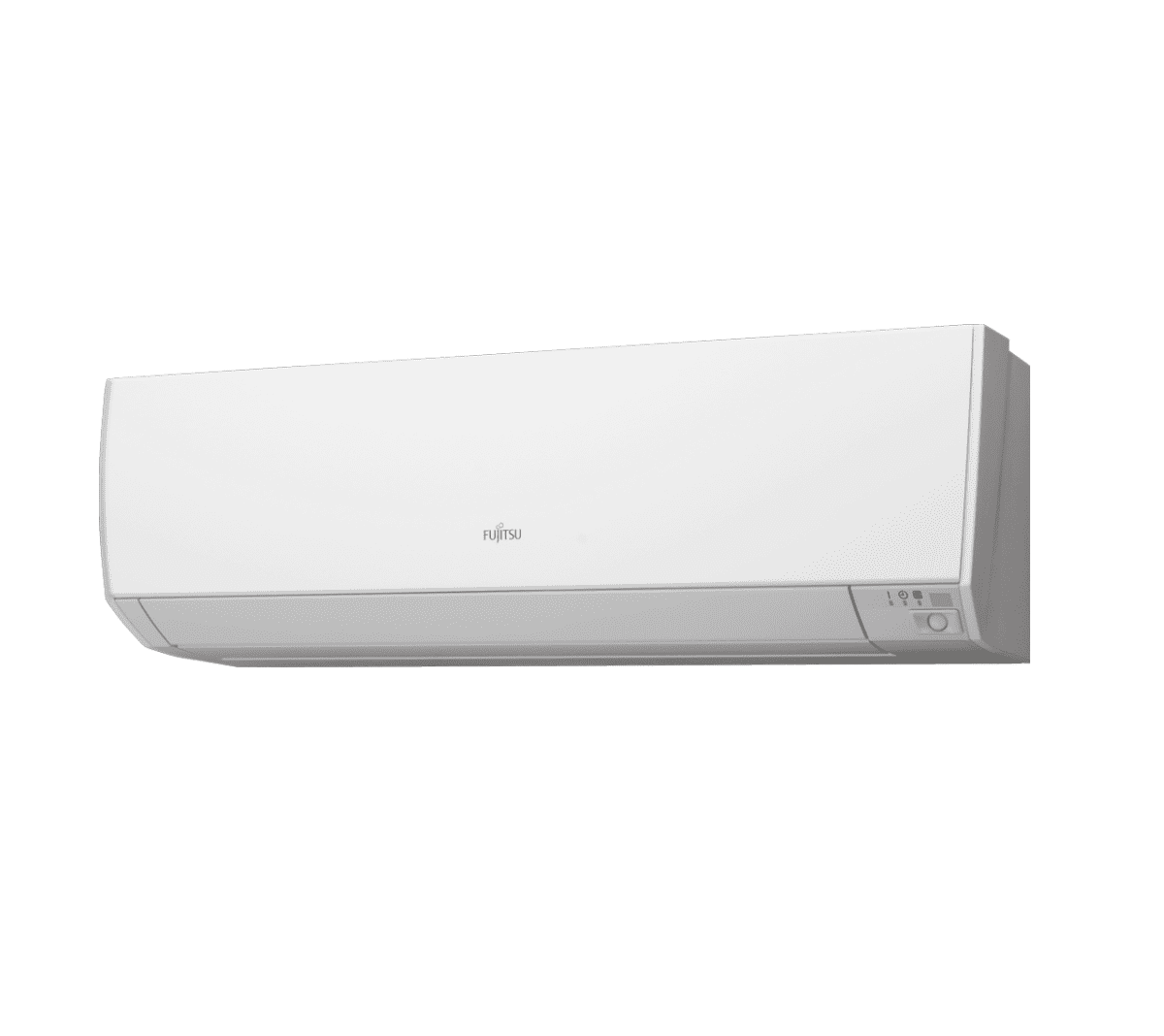

Fujitsu Air conditioning ASYA18GBCH VRF Wall Mounted Indoor Unit R410A 5.6Kw 240V~50Hz INTERNAL EEV
Fujitsu Air conditioning ASYA18GBCH VRF Wall Mounted Indoor Unit R410A 5.6Kw 240V~50Hz INTERNAL EEV is listed for TieDex store sale under Fujitsu Air Conditioning ASYA-GCGH J-IV VRF Wall Units Internal EEV. The brand/vendor is Fujitsu Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Fujitsu Air conditioning ASYA18GBCH VRF Wall Mounted Indoor Unit R410A 5.6Kw 240V~50Hz This Kit Includes: 1 x Fujitsu Air conditioning ASYA18GBCH VRF Wall Mounted Indoor Unit R410A 5.6Kw 240V~50Hz No controller supplied, user to select. The ASYA-GCCGH VRF wall mounted air conditioner is a people-friendly, function packed, environment-friendly range of heating and cooling systems. The Fujitsu ASYA-GCCGH has a flat compact design indoor unit which is quiet and efficient, the indoor wall mounted units offer a basic range of functions designed for living spaces, offices, bedrooms and small rooms. Fujitsu air conditioners make the room more comfortable with automatic operation functions, easy to clean air cleaning filters and easy control functions. All Fujitsu air conditioner models feature heat pump inverter technology which are highly efficient in operation and conserve electricity usage. Product Key Feature's: • High SCOP • Slim square
construction • Low noise • Back-up switch for loss of controller • Cold draft prevention on heat pump start up • Fault diagnosis • Auto re-start after power interruption • Low ambient tested to -15 Deg/C in heating. Technical Data: • Excluding Controller • Nom. Cooling Capacity: 5.6kW • Nom. Heating Capacity: 6.3kW • Height: 320mm • Width: 998mm • Depth: 238mm • Weight: 15kg • Pipe Sizes: 1/4" & 1/2" PDF Data Sheet: Options: Type P art Number Descr iption Controllers UT YRNRYZ5 Wired Remote Controller (Touch panel) UT YRSKY Simple Remote Controller (with Master Control) UT YRHKY Simple Remote Controller (without Master Control) UT YRSRY New Simple Remote Controller (with Master Control) UT YRHRY New Simple Remote Controller (without Master Control) UT YLNHY Wireless Remote Controller UT YRCRYZ1 Compact Remote Controller UT YCGGY Group Remote Controller UT YDCGY
Central Remote Controller UT YDCGYZ1 New Central Remote Controller UT YDTGYZ1 Touch Panel Controller UT YPTGXA Electricity charge apportionment (for UTY-DTGYZ1) UT YALGXZ1 System Controller Lite UT YPLGXA2 Electricity charge apportionment (for UTY-ALGXZ1) UT YLRHYB1 IR Receiver Kit for 4way Cassette UT YLBHXD IR Receiver Kit for Circular Flow Cassette UT Y TRHX IR Receiver Kit for 3D Flow Cassette UT Y TRHX IR Receiver Kit for Ducted Models (Except GATH) UTBYWC IR Reciver Unit for GATH Ducted Units UT YSHZXC Human Sensor for Circular Flow Cassette Converters & Adapters UT YABGXZ1 BACnet Gateway (software)Up-date UT YVBGX BACnet Gateway (Hardware) UT YVLGX Network Convertor for "LONWORKS" FJRCWIFI2 Wireless Lan Interface FJRCKNX1i KNX Interface FJRCMBS1 Modbus Interface UT Y TEKX External Switch Controller FJACWIFI1 IntesisHome for Fujitsu RAC and VRF systems FJIRWIFI1 IntesisHome Universal IR Controller FGACBAC1Z1 Intesis BACnet UART Interface
for Splits & VRF UT Y TERX External Switch Controller UT YVGGXZ1 Network Convertor UT YVSGXZ1 Signal Amplifier UT YVKGX KNX convertor (for VRF System) UTY VKSX KNX convertor (for VRF Indoor Unit) UT Y V TGX Single Split Convertor UT YV TGXV Single Split Convertor (AC power supply type) UT YVMGX Modbus Convertor External Connect Kit UT YXWZXZA For Central Remote Controller / Touch Panel Controller UT YXWZXZB For Indoor unit / For RB unit UT YXWZXZC For Indoor unit UT YXWZXZD For Indoor unit UT YXWZXZE For Indoor unit UT YXWZXZ6 For RB unit / For Outdoor unit UT YXWZXZ7 For Indoor unit / For Central Remote Controller UT YXWZXZ8 For Central Remote Controller UT YXWZXZ9 For Outdoor unit Optional Parts UTDRF204 Round Flange for medium static pressure ducted LM/KM Units UTDSF045T Square Flange for medium static pressure
ducted LM/KM Units UT YXSZX Remote Sensor Unit(for All Duct type) UTDLF25NA Long Life Filter for medium static pressure ducted LM/KM Units UTDLF60KA Long Life Filter for HSP Duct UTDGXTAW Auto Louver Grille for Slim Duct 07-14 / Compact Slim Duct 07-14 UTDGXTBW Auto Louver Grille for Slim Duct 18 / Compact Slim Duct 18 UTDGXTCW Auto Louver Grille for Slim Duct 24 / Compact Slim Duct 24 UTZPX1NBA Drain Pump Unit for ARXA024-045GLEH UTZVXAA Fresh Air Intake Kit for Compact Cassette UTZVXRA Fresh Air Intake Kit for Cassette UTRYDZB Air Outlet Shutter Plate for Compact Cassette UTRYDZK Air Outlet Shutter Plate (for Cassette type) UTRDPB24T Drain Pump Unit (for Ceiling type) These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you
do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Fujitsu Air Conditioning
- Product SKU: ASYA18GBCH
- MPN / Model: ASYA18GBCH
- Category: Fujitsu Air Conditioning ASYA-GCGH J-IV VRF Wall Units Internal EEV
- Parent Category: Fujitsu Air Conditioning VRF Systems
- Condition: New
- Availability: InStock
