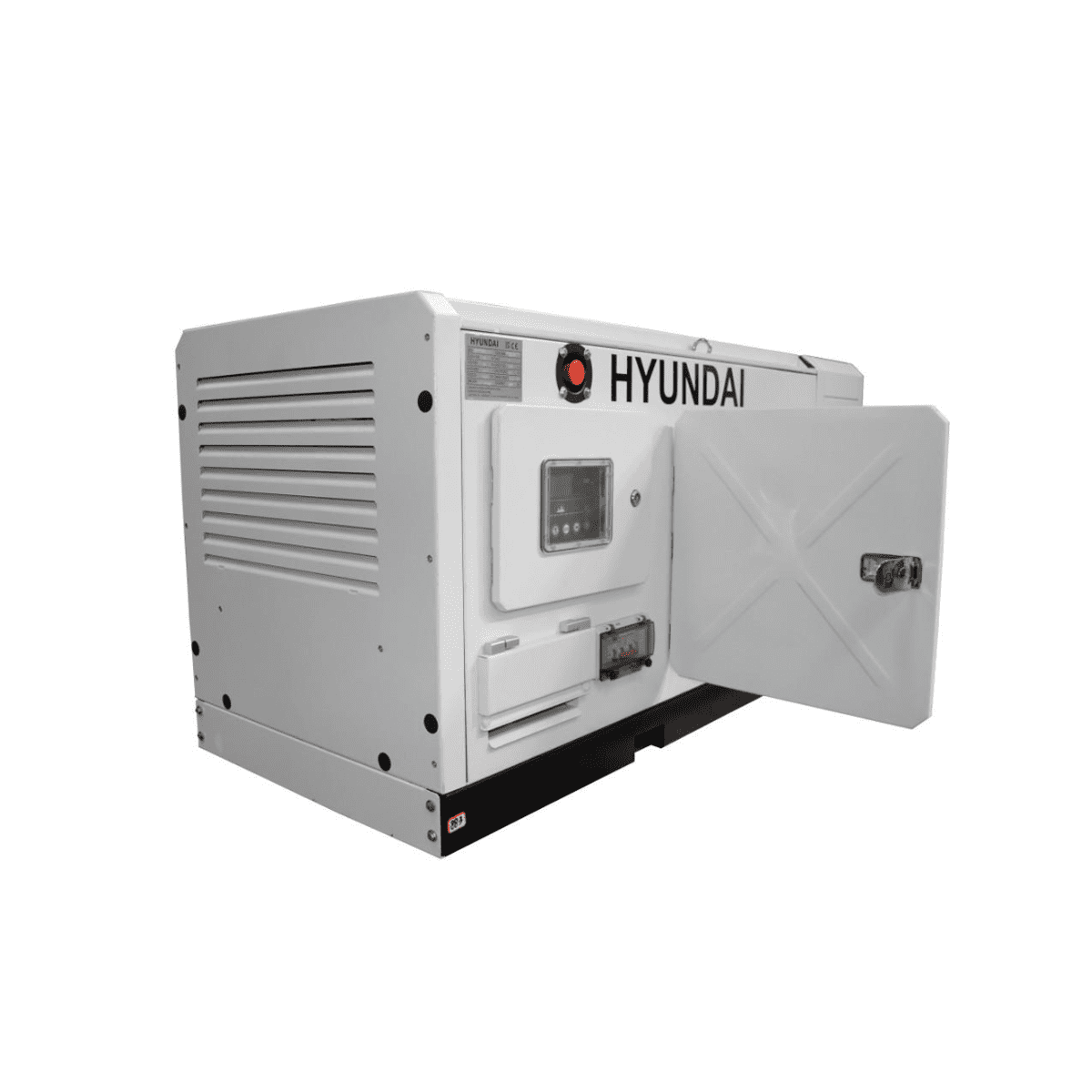

Hyundai DHY18COM-1 Diesel Standby Generator 18kW / 22.5kVA 1500rpm 230V~50Hz
Hyundai DHY18COM-1 Diesel Standby Generator 18kW / 22.5kVA 1500rpm 230V~50Hz is listed for TieDex store sale under Diesel Standby Generators Single And Three Phase. The brand/vendor is Hyundai. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
The DHY18COM-1 is a robust single-phase diesel generator by Hyundai that delivers reliable prime power or backup power when the national grid fails. With its exceptional performance, this high-quality diesel genset has a maximum capacity of 22.5kVA, ensuring your home or business stays powered. Impressive power output powered by the 4-stroke, 4-cylinder, water-cooled Hyundai 4DW91-29D diesel engine, the DHY18COM-1 generates up to 22kVA / 18kW for backup power and 20kVA / 16kW for prime power, providing ample energy for your needs. AVR Alternator for Sensitive Electronics Equipped with an AVR alternator, the DHY18COM-1 is suitable for powering sensitive electronic equipment such as televisions, gaming consoles, computers, and laptops. This makes it an ideal choice for both residential and commercial applications. Compact design despite its impressive power, the DHY18COM-1 is remarkably compact compared to other water-cooled 1500rpm 18kW generators. Its space-saving
design ensures you can enjoy the benefits of prime power or backup power even if you have limited space in your home or business premises. Optimal performance with 1500rpm Engine The 1500rpm engine of the DHY18COM-1 is perfect for static installation as a daily prime power source or as a regular standby/backup generator. Its slower running, water-cooled engine experiences less stress compared to 3000rpm generators, resulting in enhanced performance and prolonged lifespan. ATS compatibility for convenience and for ultimate convenience, the DHY18COM-1 is compatible with an ATS (Automatic Transfer Switch) system. This intelligent system automatically activates the generator when it detects a power outage and safely shuts it down when the mains power returns. This feature is particularly useful for critical applications such as server rooms or refrigeration units. Advanced DSE control panel, the DHY18COM-1 features a top-of-the-line Deep Sea
Electronics DSE6120 MKIII control panel with a large LCD screen. The panel provides clear and concise generator information and incorporates numerous safety features to protect the generator. It is also compatible with ATS, auto-start, MTS, and manual changeover switches. With remote start capability, an easily accessible emergency stop button, voltage and frequency regulation, and alerts for low oil pressure, high water temperature, high/low voltage, and high/low frequency or engine speed, the control panel ensures safe and reliable operation. Hyundai Diesel Generator Hyundai diesel generators are ideal for backup applications, as diesel fuel doesn't deteriorate like petrol, ensuring reliable performance when you need it. Additionally, Hyundai generators are compatible with cost-effective red diesel, allowing for affordable refueling without voiding the warranty. Generator kVA Ratings All our single-phase generators have a higher kVA rating than kW. This accounts for an assumed load
factor/power factor of 0.8 for the appliances you plan to power. It is an industry-standard practice, and it is recommended to select the appropriate unit based on kW requirements. Convenient Delivery Kerbside delivery is included in the price of the DHY18COM-1. Please note that unloading will require a forklift. Peace of Mind Warranty Enjoy peace of mind with the 2-year Hyundai warranty provided with the 22kVA diesel generator. Full UK parts and service backup ensure reliable support whenever you need it. Technical Data: Model DHY18COM-1 Rated/Prime kVA* 22.5 Rated/Prime kW 18 Max/Standby kVA* 20 Max/Standby kW 16 Phase Single Voltage 230 Connection Method(s) Busbar Rated Speed (RPM) 1500 Frequency (Hz) 50 Max/Continuous Current (Amps) 69.6 Power Factor (Cosφ) 1 Fuel/Power Source Diesel Fuel Tank (Litres) 40 Runtime (Hours) @ 100% Load 10 Noise Level @ 1m 75% load (dB) 79.5
Noise Level @ 7m 75% load (dB) 70 Hyundai Diesel Engine Model 4DW91-29D Power Output (kw) 16 Displacement (CC) 1809 No. of Cylinders 4 Displacement (Litres) 1.809 Recommended Oil Type SAE 15W40 Oil Capacity (Litres) 8 Oil Filter Part No. 1012015AB01-0000 Aspiration Natural Fuel Regulation/Governor System Electronic Fuel Consumption (100% Load) [Litres] 4.94 Fuel Filter Part No. 1117010-B01-0000B Cooling Water Alternator Model GP184E Breakers Delixi 125A Alternator Type Brushless Voltage Regulation AVR Air Filter Part No. DHP-0029-04 Net Weight (kg) 520 Gross Weight (kg) 597 Dimensions L x W x H (mm) 1600 x 740 x 825 Battery (Ah) 1x12V-60Ah ATS / MTS Compatible Yes Control Panel ComAp AMF9 Accessories - Model EAN 5059608212549 Warranty 1 Year / 1000 Hours (can extended to 2 years, subject to standby use of 500 hours per year. Terms apply*) Product Type Diesel Generator
Assembly Required? Yes - some assembly may be required
Key Details
- Brand / Vendor: Hyundai
- Product SKU: DHY18COM
- MPN / Model: DHY18COM
- Category: Diesel Standby Generators Single And Three Phase
- Parent Category: Electric Power Generators
- Condition: New
- Availability: OutOfStock
