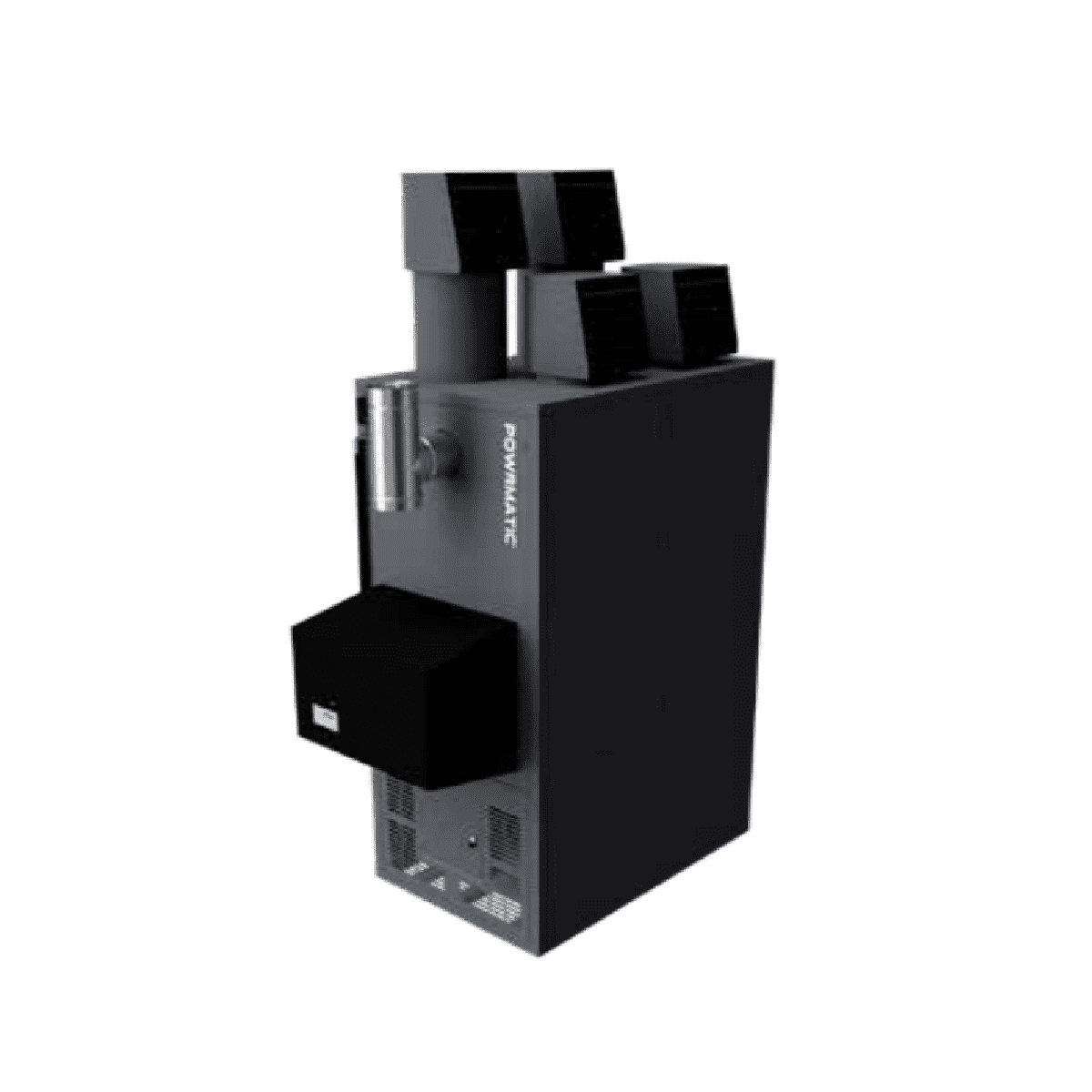

Powrmatic CXO300HD Horizontal Ducted Cabinet Oil-Fired Industrial Heater 300kW/10200000Btu
Powrmatic CXO300HD Horizontal Ducted Cabinet Oil-Fired Industrial Heater 300kW/10200000Btu is listed for TieDex store sale under Arcotherm Cabinet Heaters (Oil Range). The brand/vendor is Powrmatic. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
This Kit Includes: 1 × Powrmatic CXO300HD Cabinet Heater Horizontal Ducted Configuration 1 × Factory-fitted oil burner assembly 1 × Integrated control interface (MC200 compatible) 300kW Horizontal Cabinet Ducted Oil-Fired Industrial Heater (ErP 2021 Compliant) The Powrmatic CXO300HD is an ultra high-capacity, oil-fired cabinet heater engineered to deliver controlled warm air heating to the largest commercial and industrial environments via ducted air distribution. With a powerful 300kW heat output (1,024,000 Btu) and horizontal ducted configuration, it is ideally suited to applications where the heater is mounted at high level or within a plant room and connected to ductwork for managed air delivery across one or multiple zones. Part of Powrmatic’s ErP 2021-compliant CX oil-fired range, the CXO300HD is equipped with a high-performance pressure jet oil burner, delivering dependable combustion, consistent heat output and robust long-term operation. This makes it particularly
suitable for off-gas locations, rural sites and heavy-duty industrial buildings where natural gas is unavailable. The heavy-duty cabinet construction, horizontal mounting orientation and compatibility with advanced control systems make the CXO300HD a dependable heating solution for distribution centres, aircraft hangars, manufacturing facilities, logistics hubs and extensive commercial or industrial spaces requiring high-capacity ducted warm air distribution. Key Product Features: • Heat output: 300kW / 1,024,000 Btu • Horizontal ducted configuration for controlled air distribution • High-efficiency oil-fired pressure jet burner • ErP 2021 compliant for energy efficiency • Reliable performance for off-gas and rural locations • Suitable for internal installation • Heavy-duty cabinet construction for industrial environments • Compatible with duct sensors, dampers and BMS integration • Designed for kerosene (28 sec oil) operation Technical Specifications: Model: CXO300HD Heater Type: Oil-fired cabinet heater Output: 300kW / 1,024,000 Btu Air Delivery:
Ducted (external ductwork connection required) Orientation: Horizontal Installation Location: Internal Burner Type: Pressure jet oil burner Fuel Type: Kerosene (28 sec oil) Power Supply: 220–240V ~ 50Hz (control circuit dependent on configuration) Control Compatibility: Powrmatic MC200 and remote sensor options Heat Exchanger: High-grade steel (optional stainless steel variants available) Compatible Accessories: • MC200 remote room sensor • MC200 duct temperature sensor • Variable speed drive (inverter option) • Soft start option • Proportional or two-position air dampers • Weatherproof inlet and filtration options • Galvanised cabinet finish • Stainless steel heat exchanger upgrade CX & CPx - Heater Accessories: Model Part Number Used on Wired 1 phase ***/1PH As shown Wired 3 phase ***/3PH As shown Uprated fan ***/LHP UD/HD Variable Speed Drive (inverter) ***/INV All Soft start option ***/SOFT All Heater less standard controls ***/NC All Heater supplied in
kit form (note 1) ***/KIT All Heater supplied in split form ***/SPLIT All Galvanised heater option ***/GALV All 409 S/S heat exchanger ***/409 All Painted colour options (BS or RAL) ***/RAL All Model Part Number Used on Combustion air intake adapter ***/CAA All Side or rear inlet duct spigot ***/LDS-(S/R) All Screened air intake ***/SAI All Inlet filter – EU1 ***/FB All Weatherproofed inlet filter – EU1 **EA/FB CPx EA Proportional air damper ***/PAD All Weatherproofed proportional air damper **EA/PAD CPx EA Two position damper motor (24v) 2DM-24 PAD Two position damper motor (230v) 2DM-230 PAD Modulating damper motor (24v) MDM-24 PAD Modulating damper motor (230v) MDM-230 PAD Two position damper motor (230v) 2DM All Model Part Number Used on MC200 remote sensor 143070031 All MC200 duct sensor 143070035 All Differential Pressure Switch ECP/DPS All Disclaimer: Specifications may be subject
to change based on manufacturer updates. Images are for illustrative purposes only.
Key Details
- Brand / Vendor: Powrmatic
- Product SKU: CXO300HD
- MPN / Model: CXO300HD
- Category: Arcotherm Cabinet Heaters (Oil Range)
- Parent Category: Oil Fired Space Heater
- Condition: New
- Availability: InStock
