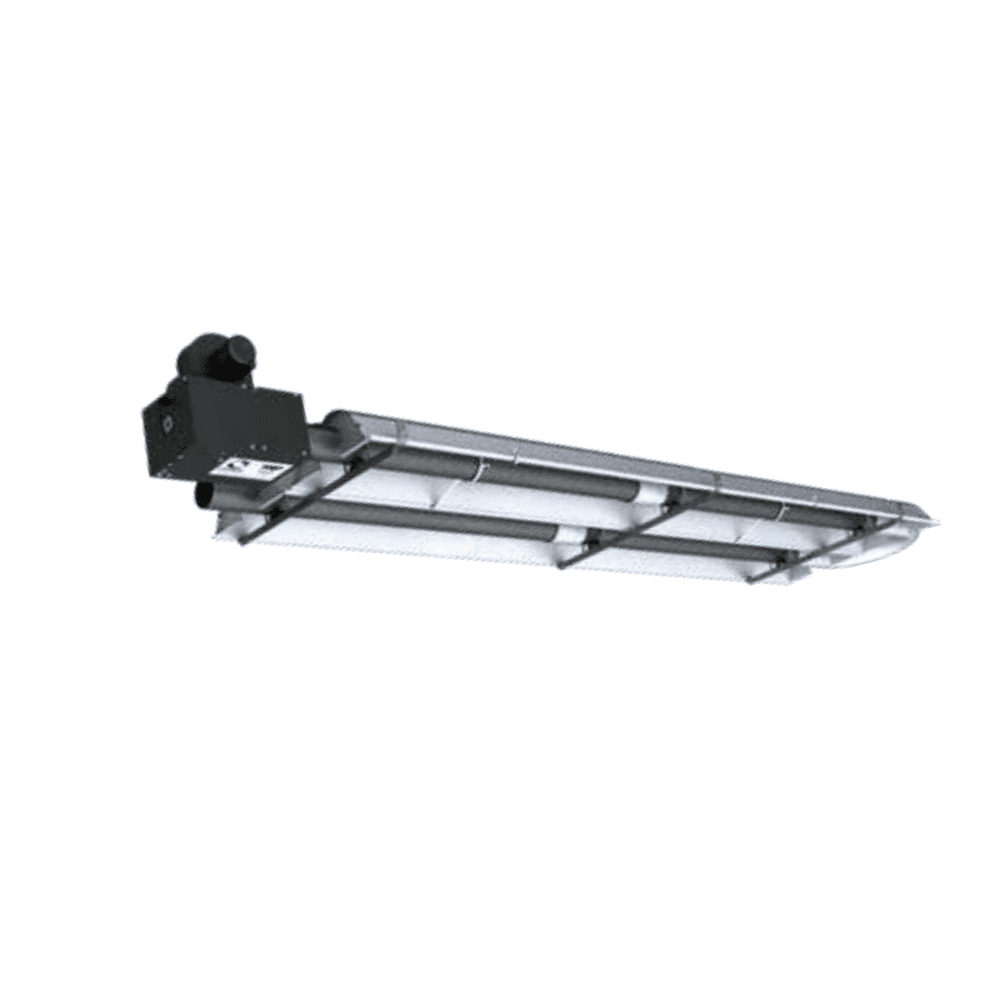

Powrmatic PVDL30 Warehouse Double Linear Radiant Vacuum Tube Heaters 61kW/207000Btu 220-240V~50Hz
Powrmatic PVDL30 Warehouse Double Linear Radiant Vacuum Tube Heaters 61kW/207000Btu 220-240V~50Hz is listed for TieDex store sale under Gas Radiant Tube Heater. The brand/vendor is Powrmatic. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
This Kit Includes: 1 × Powrmatic PVDL30 Double Linear Vacuum Radiant Tube Heater 1 × Twin aluminised steel radiant emitter tube assemblies 1 × High-efficiency aluminium reflector system 1 × Induced vacuum gas burner assembly with combustion fan 1 × Galvanised suspension mounting bracket set 1 × Factory-installed ignition and safety control module 1 × MC200 Optimised Control MC200V3 High Output Double Linear Radiant Heating for Large Industrial Warehouses The Powrmatic PVDL30 is a high-capacity double linear radiant tube heater engineered to provide powerful infrared heating for large warehouses, factories and distribution centres. Delivering 61 kW heat input, the heater uses vacuum burner technology to draw combustion gases through the emitter tubes, maintaining consistent tube temperatures and ensuring even heat distribution along the radiant surface. Unlike traditional warm-air heating systems that heat the air volume within a building, radiant heaters
emit infrared energy that directly warms floors, machinery and people within the occupied zone. This approach significantly reduces heat loss from stratification in buildings with high ceilings, improving comfort and heating efficiency in industrial environments. The double linear radiant configuration effectively doubles the emitter surface area compared with single linear heaters, enabling greater heat coverage across wide warehouse bays and large manufacturing areas. Combined with high-efficiency aluminium reflectors, radiant energy is directed downward into the working zone to maximise usable heat output. Powrmatic SRP radiant heaters incorporate two-stage high/low burner technology, allowing rapid warm-up on high fire and energy-efficient steady operation on low fire once the required temperature is reached. This design helps reduce fuel consumption while maintaining consistent thermal comfort across large industrial buildings. Key Product Features: • Double linear vacuum radiant tube heater • Heat input (high fire):
61 kW / 207,000 Btu • Heat input (low fire): 50 kW • Vacuum burner technology for consistent radiant tube temperature • Two-stage high / low burner operation • High-efficiency aluminium reflector system • Twin radiant emitter tube design for wider heat coverage • Designed for suspended installation in large buildings • Compatible with MC200 optimised radiant heating controller • Suitable for Natural Gas or LPG (injector change required) • Ideal for warehouses, factories and distribution centres Technical Specifications: Model: PVDL30 Product Type: Double Linear Vacuum Radiant Tube Heater Heat Input (High Fire): 61 kW Heat Input (Low Fire): 50 kW Heating Capacity: 61 kW / 207,000 Btu Fuel Type: Natural Gas (G20) or LPG (G31) Electrical Supply: 220-240V~50Hz 1Ph Burner Type: Induced vacuum gas burner Emitter Configuration: Double linear radiant tubes Flue Diameter: 130 mm Heater Length: 25,800 mm
Installation Type: Suspended ceiling mounting Applications: • Industrial warehouses • Manufacturing plants • Logistics and distribution centres • Workshops and engineering facilities • Agricultural buildings • Commercial storage facilities Compatible Accessories: Description Included Part Number Used On Flue Dia (mm) £ Vertical B22 (Single Pipe) Flue Kit 1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands PSRP/VFK/1 PU/PVU 100 503 PSRP/VFK/2 PL/PVL 100 555 PSRP/VFK/3 PVDL 130 657 Horizontal B22 (Single Pipe) Flue Kit 2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands PSRP/HFK/1 PU/PVU 100 733 PSRP/HFK/2 PL/PVL 100 483 PSRP/HFK/3 PVDL 130 609 Vertical C32 (Twin Pipe Balanced) Flue Kit 1 × Terminal kit, 1 × Adaptor
to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 PSRP/VBFK/1 PVU 100 881 PSRP/VBFK/2 PU 100 961 Description Included Part Number Used On Flue Dia (mm) £ Vertical B22 (Single Pipe) Flue Kit 1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands PSRP/VFK/1 PU/PVU 100 503 PSRP/VFK/2 PL/PVL 100 555 PSRP/VFK/3 PVDL 130 657 Horizontal B22 (Single Pipe) Flue Kit 2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands PSRP/HFK/1 PU/PVU 100 733 PSRP/HFK/2 PL/PVL 100 483 PSRP/HFK/3 PVDL 130 609 Vertical C32 (Twin Pipe
Balanced) Flue Kit 1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 PSRP/VBFK/1 PVU 100 881 PSRP/VBFK/2 PU 100 961 Difference Between PVL20LS and PVL20: Model Heat Input Main Difference Tube Length PVL20LS 22 kW Longer radiant tube system ~8 m PVL20 22 kW Standard length radiant tube system ~9.85 m
Key Details
- Brand / Vendor: Powrmatic
- Product SKU: PVDL30
- MPN / Model: PVDL30
- Category: Gas Radiant Tube Heater
- Parent Category: Heating
- Condition: New
- Availability: InStock
