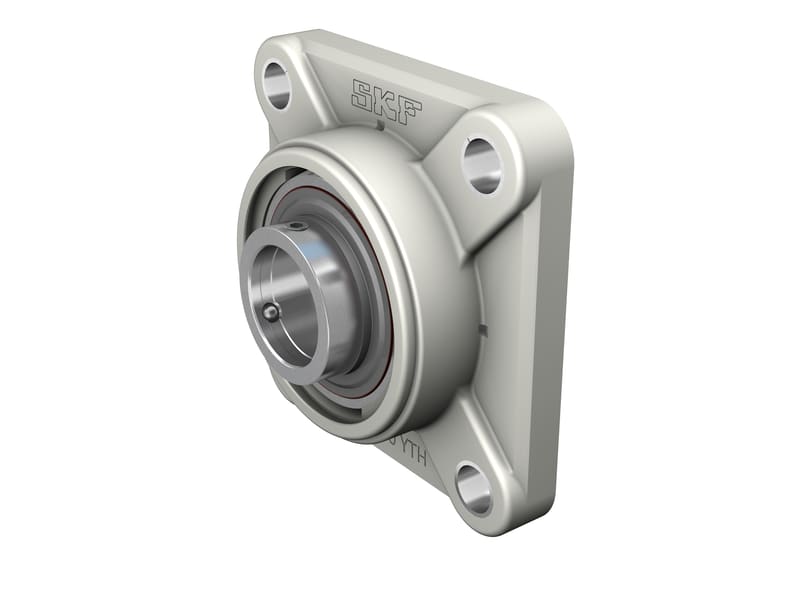

This bearing unit provides a Compact mounted solution for rotating shafts in hygienic or industrial environments. It combines a cylindrical bore with a screw‑type locking mechanism and a composite housing developed for food‑industry applications. The product suits installations where a 30mm shaft support with standardised mounting and industry approvals is required.
Features and Benefits
- Dynamic load capacity 16.3 kN improves operational load handling
Static load capacity 11.2 kN increases resistance to Peak forces
Limiting speed 3800 r/min enables higher rotational throughput
Four mounting holes with 12.3mm diameter simplify secure fixing
Mount hole centre‑to‑centre 82.5mm ensures accurate alignment
Composite material for the SKF Food Line reduces contamination risk
Applications
- Suitable for conveyor drives in food processing lines
Ideal for pick‑and‑place automation in packaging machines
Used with small gearboxes in electrical drive assemblies
Can be used for shaft support in inspection equipment
Used for rotating elements in electronics assembly conveyors
What shaft size does it accept?
It is designed for a 30mm shaft using a cylindrical bore configuration and a screw locking arrangement to clamp the shaft.
How many fixing points are required for mounting?
The unit uses four bolts with 12.3mm holes positioned on an 82.5mm centre‑to‑centre pattern for stable attachment.
What performance limits should installers consider?
The bearing unit’s upper rotational limit is 3800 r/min, sustained operation should remain at or below this speed to avoid overheating.
Is the material appropriate for food‑industry environments?
The housing is MADE from a composite specified for the SKF Food Line to reduce contamination and support hygienic installations.
How does it cope with intermittent high loads?
The unit’s static rating of 11.2 kN provides capacity to withstand short‑duration Peak forces without permanent deformation.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
