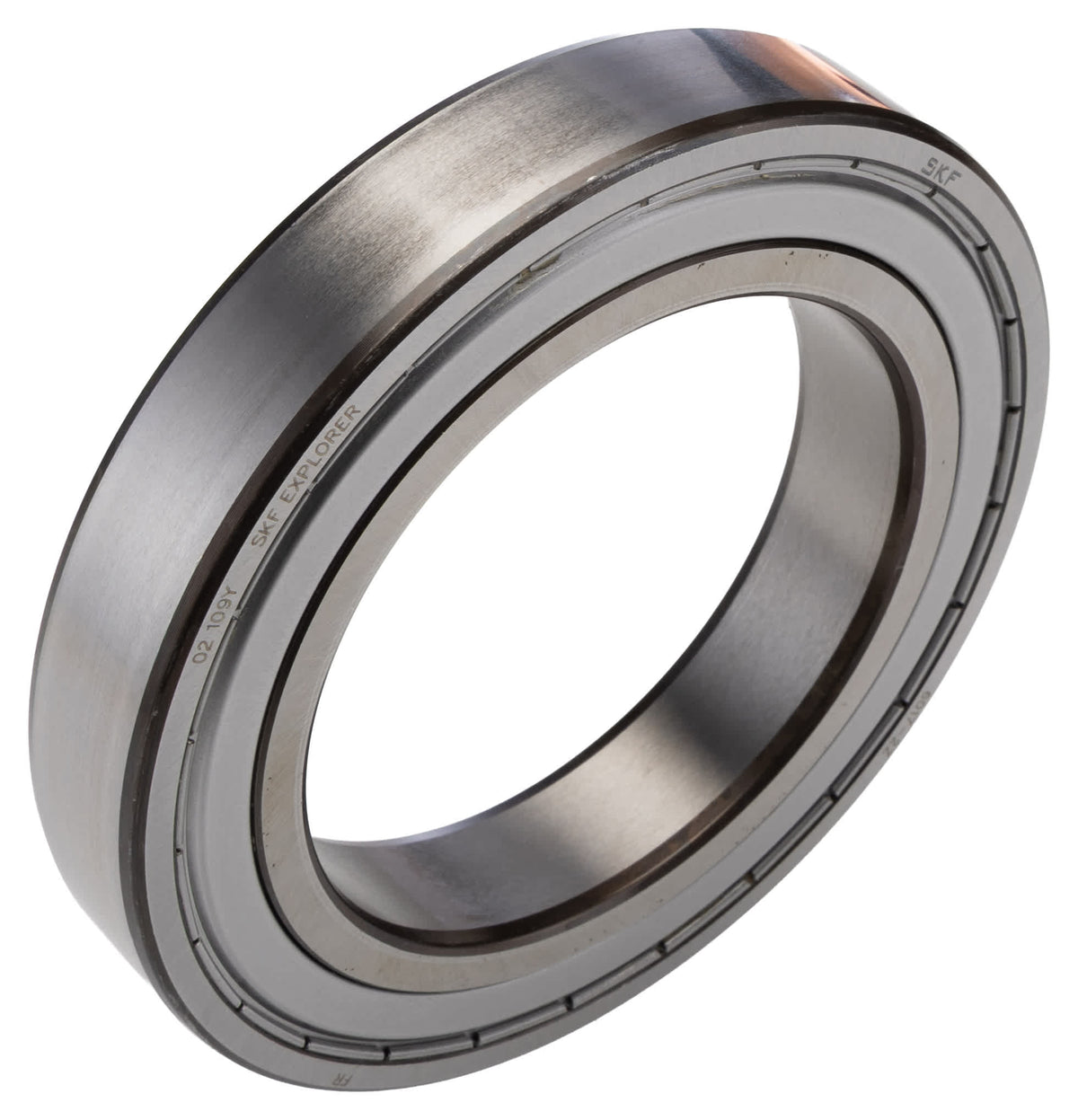

This ball bearing is designed to support radial loads and rotational movement in machinery requiring a sealed, steel construction. It incorporates a single-row deep-groove geometry and double shielding to reduce contamination ingress while operating at moderate to high rotational speeds.
Features and Benefits
- Steel balls and races provide high wear resistance
Double shields reduce contamination without lubrication loss
Sheet-metal cage ensures robust ball spacing under load
Internal clearance CN offers controlled axial displacement
Dynamic load capacity 52 kN supports sustained operational loads
Limiting speed 5,300 r/min enables high-speed rotation
Applications
- Suitable for industrial drive shafts requiring sealed bearings
Ideal for conveyor rollers with moderate radial loads
Used with electric motor assemblies operating at high speed
Can be used for gearbox input shafts under dynamic loading
Suitable for rotating equipment needing Compact sealed bearings
What bore configuration does this bearing use?
It features a cylindrical bore to mount on straight shafts.
How wide is the race to accommodate axial forces?
The race width measures 22 mm to provide axial contact support.
What static load capacity can be expected at rest?
The bearing has a static load rating of 43 kN for non-rotating loads.
How many rows and what groove type are present internally?
There is a single row configured as a deep-groove ball arrangement.
What overall dimensions define the external envelope?
The outer diameter is 130 mm with an inner diameter of 85 mm.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
