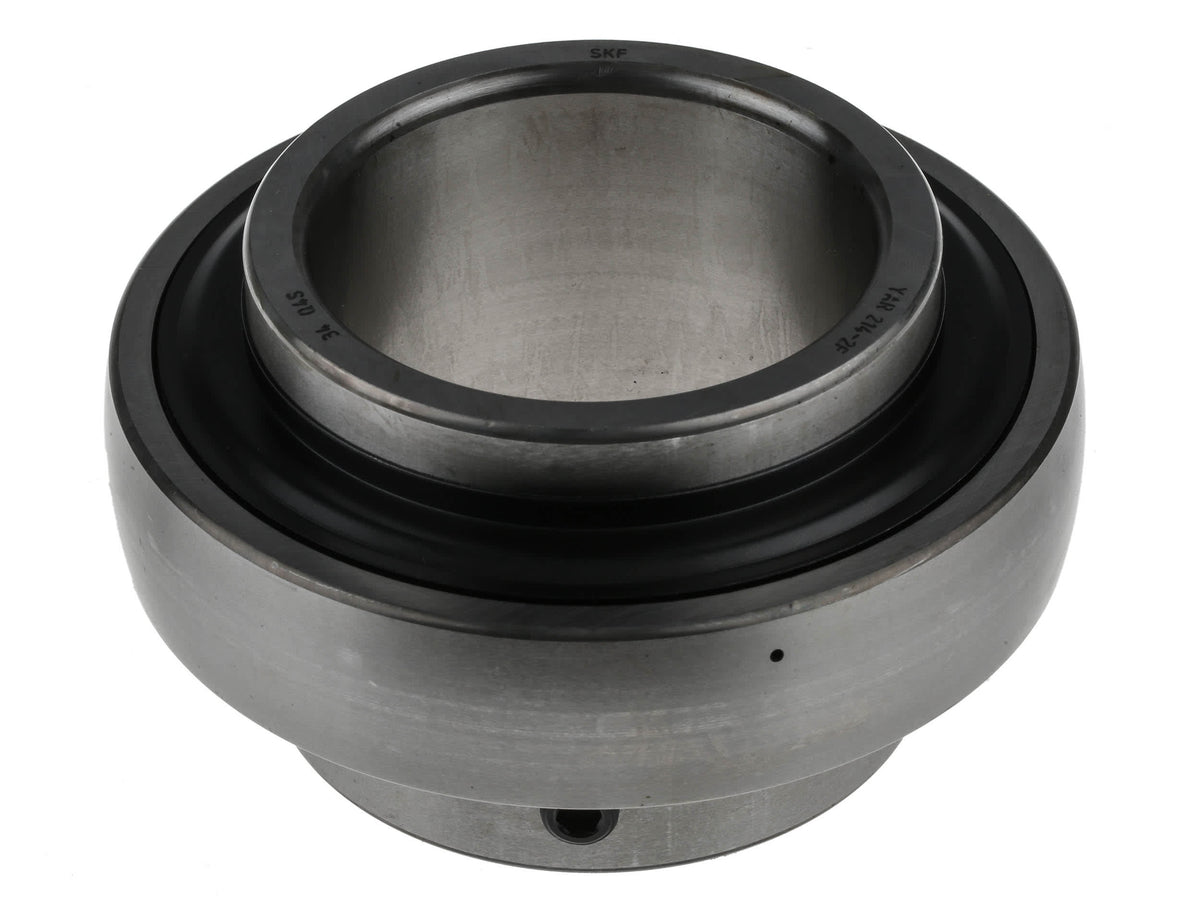

This bearing unit insert is designed to support rotating shafts within mounted housings in industrial systems. It provides radial load support for driven components and is intended for integration where a cylindrical bore fit and screw-based locking are required. The insert is suited to machinery and equipment in automation, electrical and mechanical environments where dependable shaft alignment and straightforward replacement are needed.
Features & Benefits
- Cylindrical bore delivers secure concentric shaft support
Screw locking type enables quick, tool-based retention
Steel construction offers robust material strength for assemblies
Limiting speed of 2800 r/min accommodates moderate-speed drives
**Applications**
- Suitable for conveyor drive shaft support in automation systems
Ideal for motor and gearbox mounting in electrical drives
Used with precision rollers in electronics assembly lines
Can be used for pivot supports in mechanical handling equipment
What bore size should the shaft be for correct fit?
Use a 70mm shaft diameter where a cylindrical bore match is required for proper seating and load transfer.
What outside dimension is needed in the housing pocket?
The component has an outside diameter of 125mm, which determines the housing recess requirement for a secure fit.
How much axial or radial load can it tolerate without movement?
It withstands static loads up to 45 kN at standstill conditions and dynamic loads up to 62.4 kN during rotation.
What is the overall thickness to consider for axial space planning?
The unit requires 69.9mm of axial clearance for proper installation and accommodation within a housing.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
