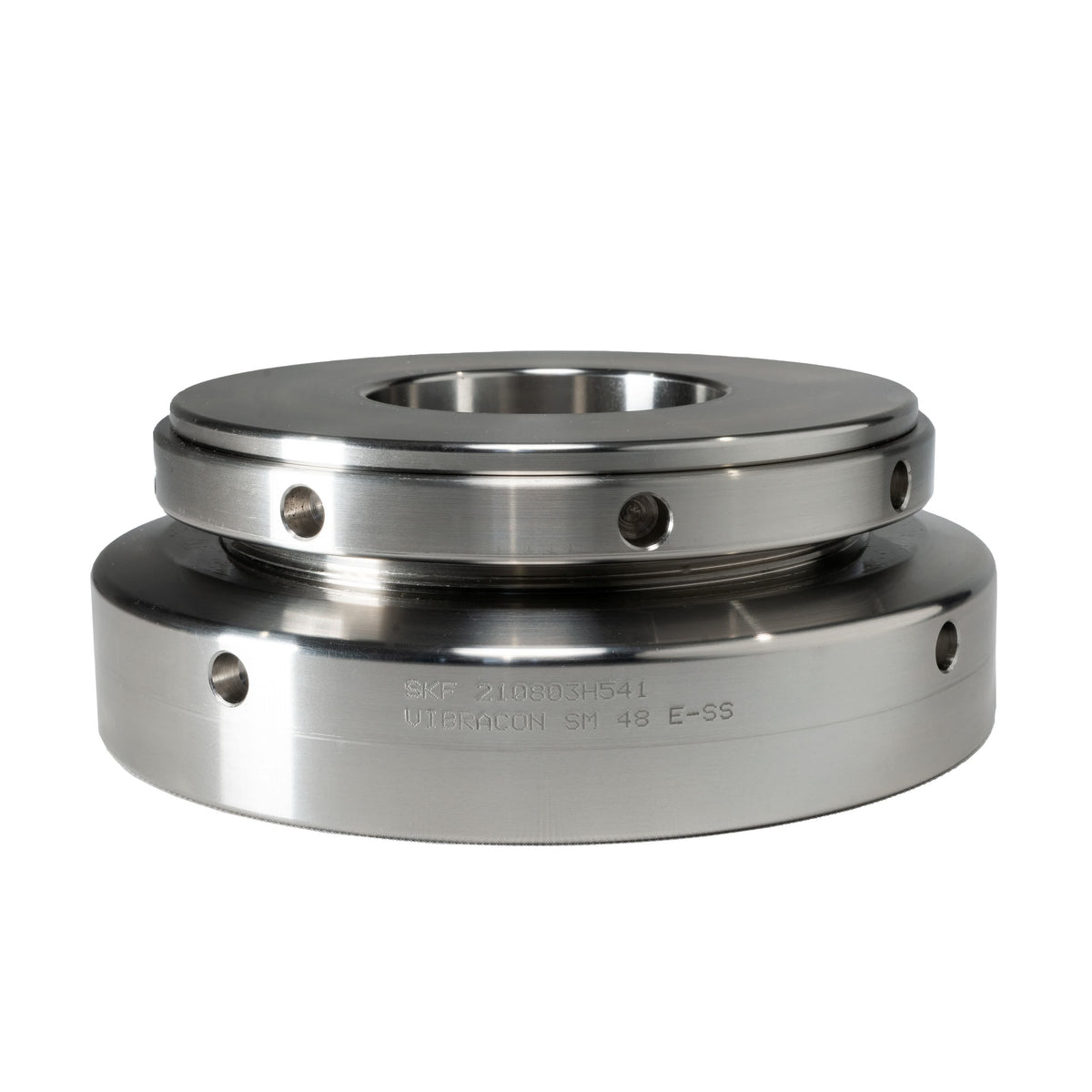

This anti-vibration mount provides mechanical isolation for heavy rotating and vibrating equipment in industrial environments. It is a bolt-mounted adjustable chock designed to reduce transmission of forces and support substantial static loads while being suitable for corrosive or hygienic settings owing to its stainless steel construction.
Features and Benefits
- Static capacity 115000daN delivers substantial support and stability
Compression rating 1150kN absorbs heavy transient loads effectively
60mm bore accommodates common shaft and Anchor sizes
316L stainless construction resists corrosion in aggressive atmospheres
Circular grey foot offers consistent contact and load distribution
M48x56 threaded connection enables secure bolt mounting
Applications
- Suitable for mounting large motors and driven units in factories
Ideal for isolation of pumps in chemical and food plants
Used with compressors requiring adjustable chassis alignment
Can be used for vibration control on HVAC chillers and blowers
Used for base support in precision automation assemblies
How does adjustment work to align equipment?
The chock design permits fine axial adjustment via the threaded interface, allowing alignment corrections during installation without replacing shims.
What mounting arrangement is required for high axial forces?
A bolted flange connection using the specified thread size secures the isolator and transfers compressive and shear loads into the foundation.
How long is the internal bore for accommodating shafts or fasteners?
The bore extends to an internal length of 89mm to accept long studs or through-bolting where required.
What foot geometry affects seating on baseplates?
The circular foot shape creates a uniform seating area to reduce point stresses and aid predictable load distribution.
Which material property improves suitability in hygienic environments?
The 316L stainless composition provides enhanced resistance to pitting and crevice corrosion where contaminants or cleaning agents are present.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
