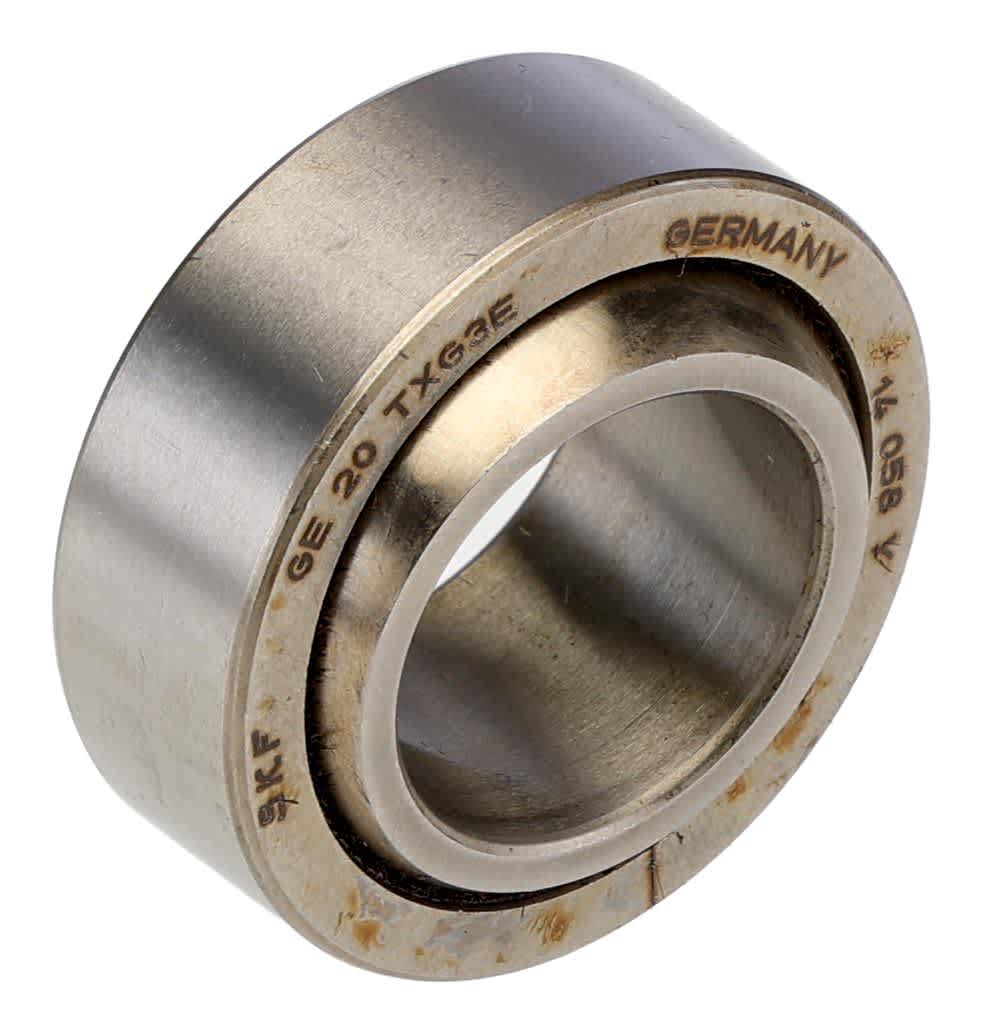

This plain bearing is a highly efficient component specifically designed for applications requiring radial spherical plain bearings. With a bore diameter of 20mm and an outside diameter of 35mm, it offers a nominal width of 16mm. This bearing boasts a high static radial load rating of 140 kN, ensuring it can withstand significant forces in various mechanical systems.
Features & Benefits
- Maintenance-free design ensures reduced upkeep requirements
- Constructed with a steel/PTFE fabric combination for durability
- Triple-lip seals provide effective protection against contaminants
- Offers a basic dynamic load rating of 83 kN
- Suitable for high-performance applications demanding reliability
- Lightweight at just 0.06 kg for ease of installation
Applications
- Used with automated machinery to enhance motion reliability
- Utilised in electric motors for smooth rotational performance
- Ideal for various mechanical assemblies where load distribution is critical
- Employed in industrial equipment to minimise friction and wear
- Suitable for requiring robust sealing solutions against dirt and moisture
What type of lubrication is recommended for this bearing?
This bearing features a maintenance-free design with dry lubrication, eliminating the need for regular oiling or greasing.
What load ratings should I consider when selecting this bearing for my application?
It has a static load rating of 140 kN and a dynamic load rating of 83 kN, making it suitable for applications with significant load requirements.
How does the sealing solution enhance the bearing's performance?
The triple-lip seals provide an effective defence against contaminants, ensuring optimal operation and extending the service life of the bearing.
What are the implications of the bearing's weight on installation?
Weighing only 0.06 kg, this bearing allows for straightforward installation and can be integrated easily within various systems without adding significant weight.
What are the abutment dimensions critical for system compatibility?
The minimum abutment diameter for the shaft is 22.1mm, while the minimum abutment diameter for housing is 27.6mm, which is vital for ensuring proper fit and function in your setup.
