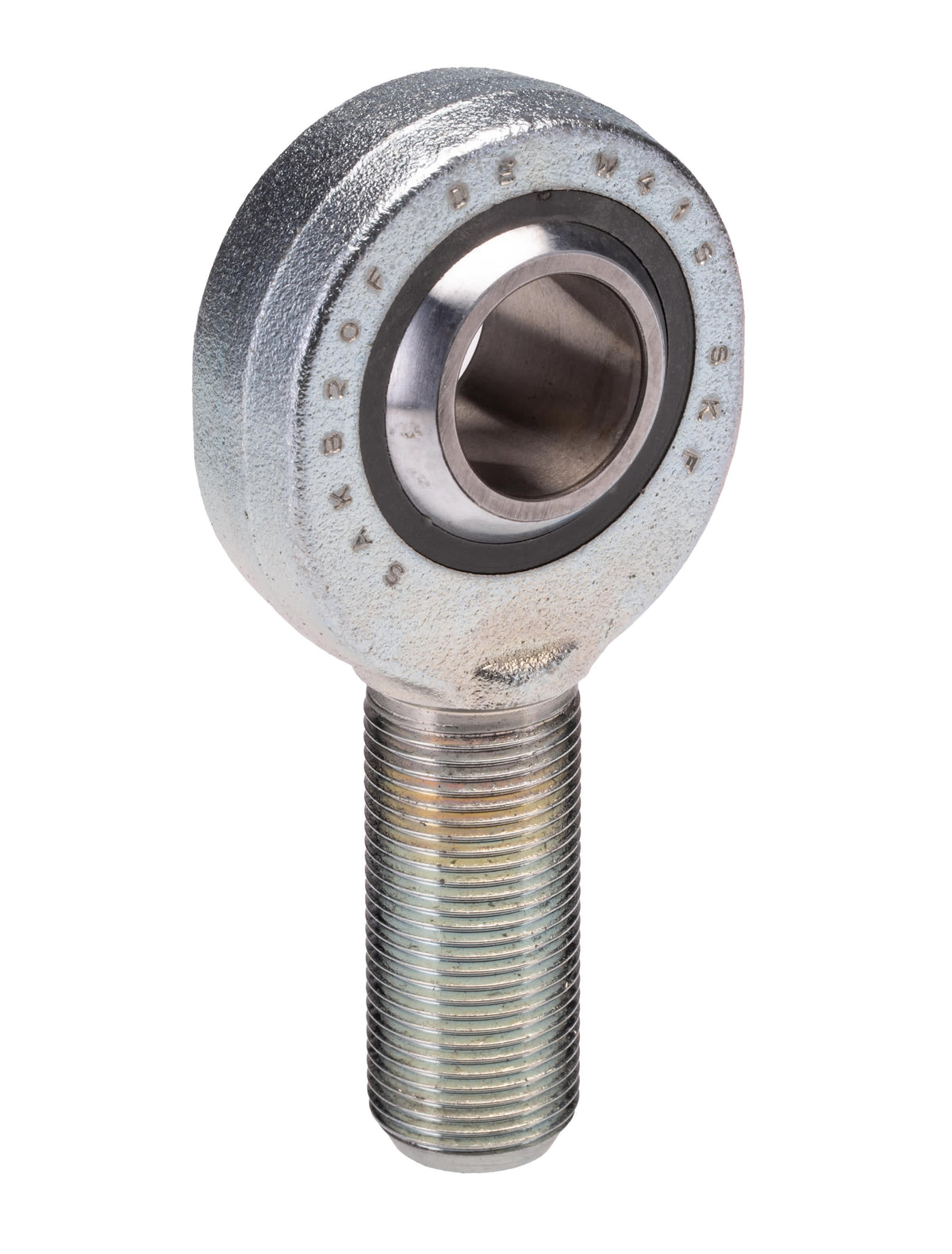

This rod end is intended for efficient transmission in various mechanical and automation applications. Its male connection is ideal for joints requiring sturdy and precise motion, making it an essential component in systems with high-load performance. Designed to meet dynamic and static load requirements, this rod end enhances both reliability and efficiency in machinery.
Features & Benefits
- Male rod end designed for secure and precise connections
- Constructed from steel for durability and strength
- Dynamic load rating of 31kN suitable for high-performance uses
- Static load rating of 50kN provides reliability under stationary conditions
- Metric thread standard ensures compatibility with standard connectors
- Compact design supports space-efficient installations
Applications
- Utilised with robotic arms for improved motion precision
- Employed for connecting actuators in automation systems
- Applicable in the automotive sector
- Suitable for linkages in mechanical equipment
How do I determine the appropriate sising for installation?
Consider the bore size of the rod end, which is 20mm, along with the connection size of M20x1.5 to ensure compatibility with threaded components.
Is additional maintenance required for this rod end?
Regular inspections for wear and tear should be conducted to maintain functionality, ensuring smooth operation under dynamic conditions.
