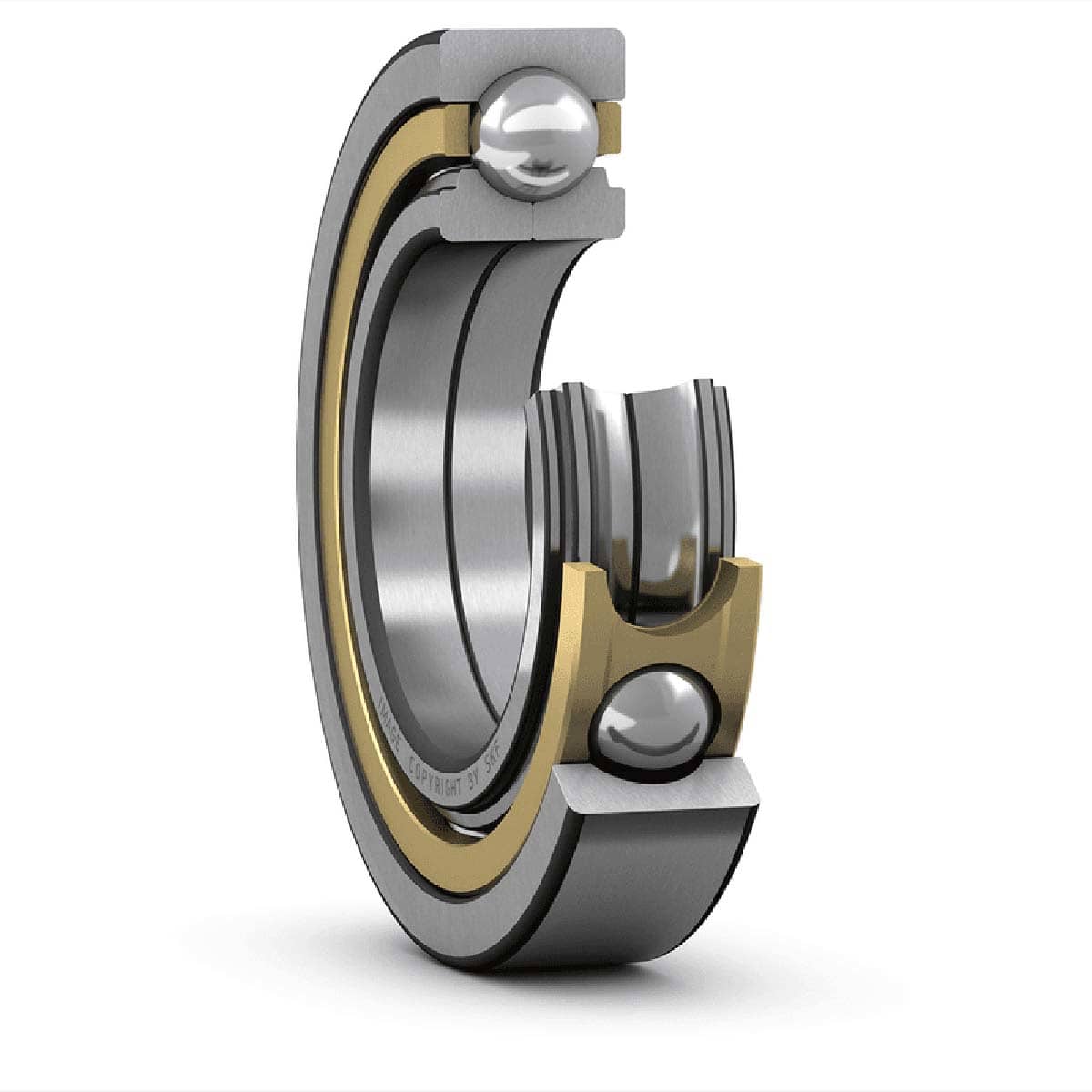

This ball bearing is a single-row four-point contact component designed for applications requiring angular contact capacity and high rotational speed. It accommodates combined radial and axial loads within Compact assemblies and is supplied with an open-end configuration for straightforward integration into rotating machinery.
Features and Benefits
- 24,000 r/min limiting speed supports high-speed operation
35° contact angle provides enhanced axial load handling
Machined brass cage reduces internal friction for smoother running
CN internal clearance allows controlled axial play under load
Dynamic load capacity 32 kN increases operational load endurance
Static load capacity 21.6 kN sustains high stationary loads
Applications
- Suitable for spindle and rotary tool assemblies
Ideal for high-rpm testing rigs and balancing machines
Used with drives requiring combined axial and radial support
Can be used for precision index tables and turntables
Used for machinery where open-ended access is required
What bore preparation is required for mounting?
The bore is parallel so a straight cylindrical housing bore is required for correct seating.
How does the bearing handle axial reversals in service?
The four-point contact geometry shares axial loads in both directions, enabling bidirectional axial load accommodation.
What materials are engaged in the rolling elements and cage?
The rolling elements are steel balls and the cage is MADE from machined brass.
What external dimensions must the housing accept?
The unit requires accommodation for a 20 mm inside diameter and a 52 mm outside diameter.
How thick is the section that contacts the races?
The race assembly presents a 15 mm overall width across the rolling elements.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
