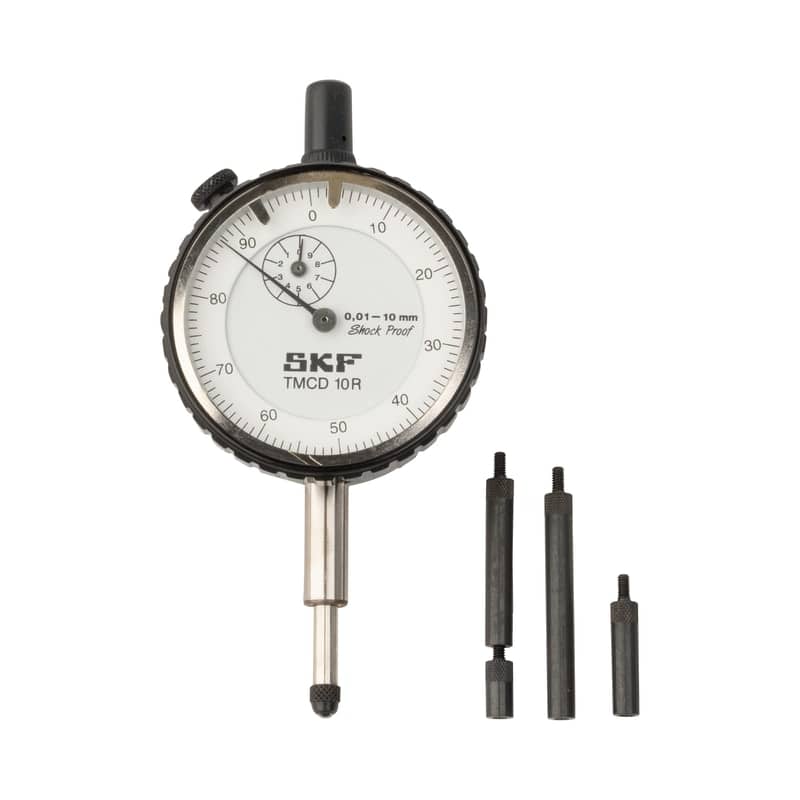

This dial indicator is a mechanical inspection instrument designed to measure small linear displacements in metric units for workshop and production settings. It provides a clear Visual readout on a 10mm dial and is suited to precision checking and alignment tasks where metric-to-imperial comparison may be required.
Features and Benefits
- Metric readout with integral imperial conversion for dual-scale reference
10mm dial face for precise small-travel measurement
Mechanical contact operation for battery-free reliability
Compact design suitable for tight-access inspection points
Robust construction enabling repeated workshop measurement cycles
Applications
- Suitable for shaft run-out verification in machining operations
Ideal for setting up fixtures and jigs on assembly lines
Used for checking component flatness and parallelism on inspection benches
Can be used for comparative measurement between metric and imperial gauges
Used with test stands for repeatable contact measurement
How is readout conversion handled between metric and imperial units?
The indicator includes a conversion scale that allows readings in metric while providing corresponding imperial values for quick cross-reference.
Can it operate without external power sources?
Yes, it functions purely mechanically and does not require batteries or an electrical supply.
What type of contact measurement does it perform?
It uses a contact probe to register linear displacement directly from the workpiece surface.
Is the instrument suitable for frequent use in production environments?
The mechanical design and Compact dial make it appropriate for routine inspection and repetitive measurement tasks.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
