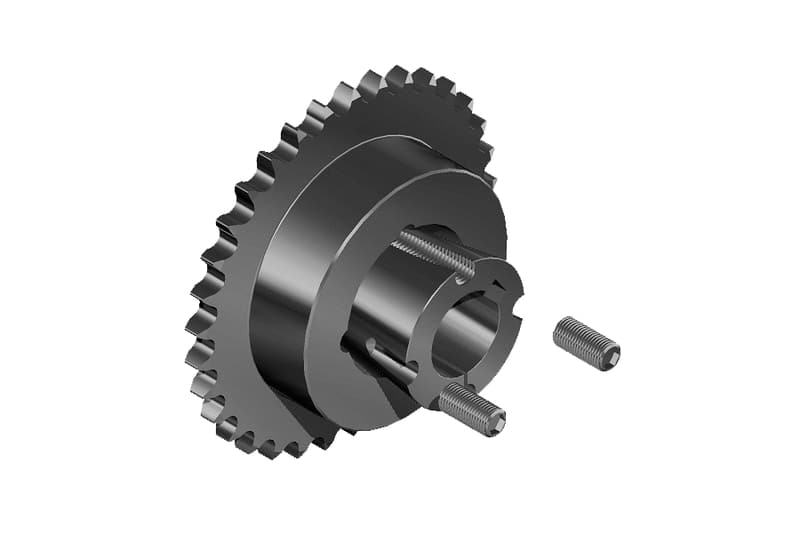

This sprocket is a steel drive wheel designed to transmit rotary motion in chain-driven systems using a simplex taper bush for secure mounting. It is intended for industrial conveyor and machinery applications where a compatible chain form and standard approvals are required for integration into existing power-transmission assemblies.
Features and Benefits
- 45 teeth optimise speed ratio and torque distribution for driven shafts
Compatible with 12B-1 chain enabling straightforward chain selection
Steel construction provides high-strength load-bearing capacity
Taper bush bore affords compact, removable hub attachment
BS and EN approvals meet recognised national and European standards
Applications
- Suitable for industrial conveyor 45T installations requiring indexed gearing
Used with 12 B-1 chain in material-handling lines
Ideal for retrofit drives needing a simplex taper-bore sprocket with 45 teeth
Can be used for production-line rotary power transfer requiring robust steel sprockets
What is the maximum internal diameter available for mounting?
The maximum internal diameter for the taper bore is 63.5 mm.
What is the hub Interface size for shaft accommodation?
The hub diameter measures 108 mm for hub-related clearances.
What pitch diameter determines chain engagement geometry?
The pitch diameter is 273.1 mm, which sets the chain path and centre distances.
What is the overall sprocket face width for chain contact?
The sprocket width across the teeth engagement area is 45 mm.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
