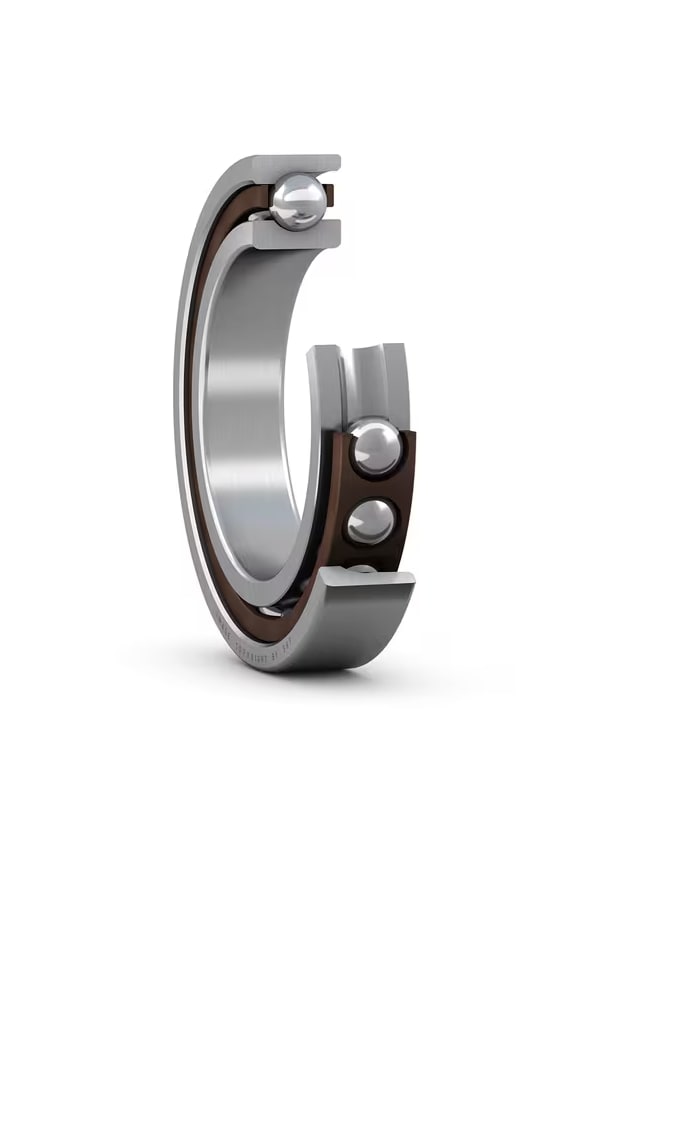

This angular contact ball bearing provides axial and radial load handling for precision rotating assemblies in automation and electromechanical systems. Designed as a single-row unit with an open-end configuration, it suits applications requiring accurate rotational alignment and consistent contact geometry at moderate contact angles. The product is intended for use where compact, high-speed performance and defined internal clearance are required.
Features and Benefits
- 15° contact angle for combined axial and radial load support
Steel balls for Durable rolling contact and wear resistance
Limiting speed 22,000 r/min for high-speed operational demands
Internal clearance CN to maintain predictable preload and stiffness
Dynamic load capacity 40.3 kN for sustained operational loads
Static load capacity 34.5 kN to withstand stationary loads
Applications
- Suitable for high-speed spindle systems in automation equipment
Ideal for precision motor shafts in electrical drives
Used with servo gearboxes requiring axial load accommodation
Can be used for rotary encoders and indexing mechanisms
Used for Compact gearboxes in robotics and motion control
What shaft Interface does it require for installation?
The bore is manufactured with a parallel internal profile for slip-fit mounting onto cylindrical shafts.
How does the open-end design affect maintenance?
With exposed rings and rolling elements, Visual inspection and lubrication access are simplified compared with sealed variants.
What element material is used for rolling contact?
The bearing utilises steel balls to provide consistent contact behaviour and long service under dynamic cycling.
How many rows of rolling elements are provided?
The bearing is configured as a single row to allow axial load transmission in one direction while retaining compactness.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
