Daikin Air Conditioning AZEZ6DAIST07XS2 Eazyzone 2 of 200mm FXSQ15A, FXSQ20A, FXSQ25A, FXSQ32A
Daikin Air Conditioning AZEZ6DAIST07XS2 Eazyzone 2 of 200mm FXSQ15A, FXSQ20A, FXSQ25A, FXSQ32A is listed for TieDex store sale under Daikin Air Conditioning Accessories. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

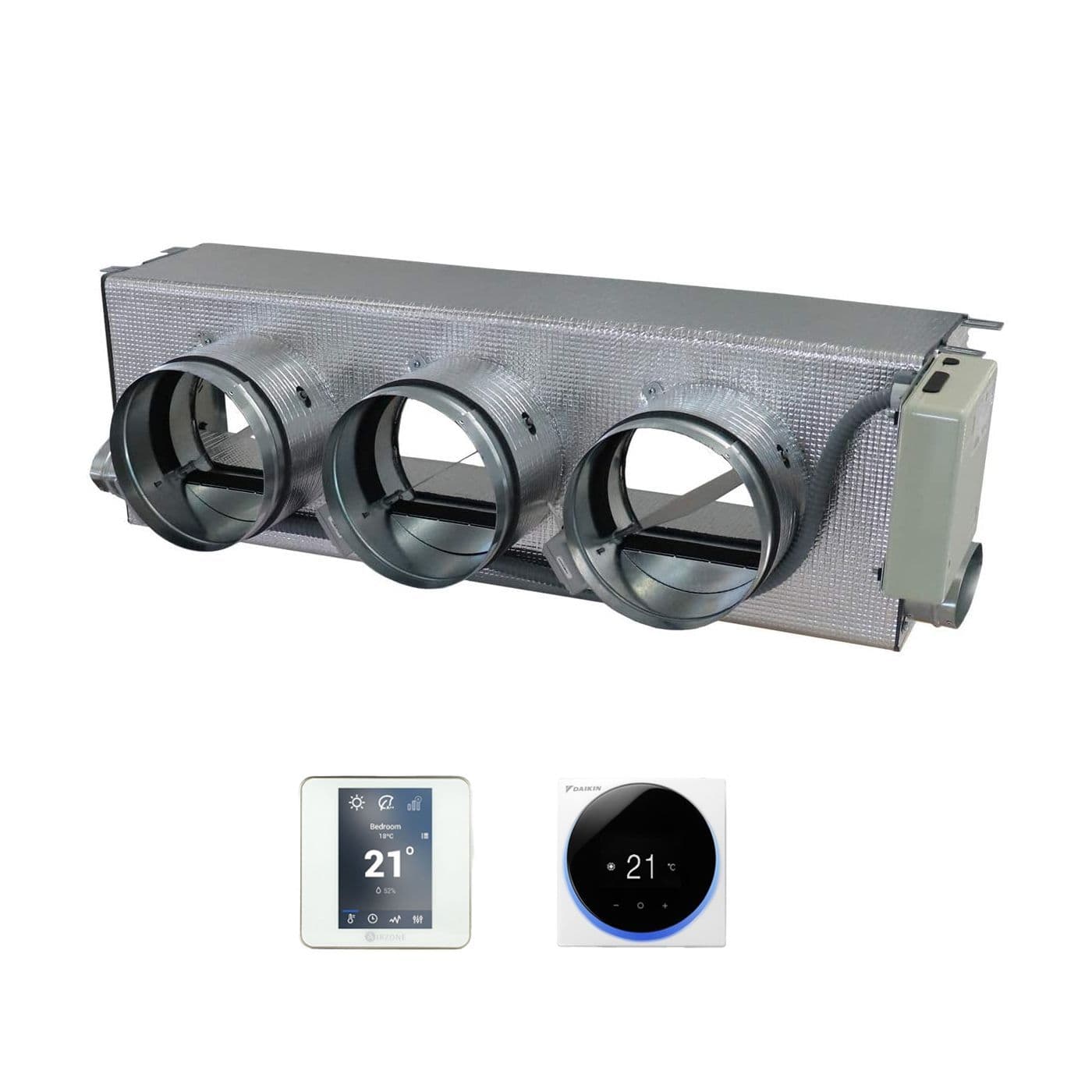

Daikin Air Conditioning AZEZ6DAIST07XS2 Eazyzone 2 of 200mm FXSQ15A, FXSQ20A, FXSQ25A, FXSQ32A The Easyzone system offers a low installation cost and versatile way to control the temperature of multiple spaces from a single ducted fan coil as part of a Split, Sky Air or VRV system. This Easyzone Kit AZEZ6DAIST07XS2 Includes: 1 Piece AZEZ6DAIST07XS2 200mm 2 duct outlets 1 Piece AZCE6BLURFACECB Blueface central controller 1 Piece BRC1H* Remote Control singe area The system consists of an adaptor that fits on to the ducted fan coil which has between two and eight round duct adaptors depending on how many rooms you want to supply. Each adaptor has its own motorised damper which is able to control the volume of conditioned air delivered to the space, enabling individual temperature control in each room. Each room can have either a wireless standard (Think),
simplified (Lite) controller or centralised (Blueface) controller which is linked to the Easyzone adaptor kit. The system must have at least one centralised (Blueface) controller and a BRC1H*. Easyzone is available for the following fan coils: Model Class FXSQ-A 15 20 25 32 40 50 63 80 100 125 140 FXDQ-A3 20 25 32 40 50 63 FBA-A(9) 35 50 60 71 100 125 140 FDXM-F9 25 35 50 60 Model: Easyzone kit Part Number No of ducts Duct size mm Compatible models Trade Price AZEZ6DAIST07XS2 2 200 FXSQ15A FXSQ20A FXSQ25A FXSQ32A £851.00 AZEZ6DAIST07XS3 3 200 FXSQ15A FXSQ20A FXSQ25A FXSQ32A £917.00 AZEZ6DAIST07S2 2 200 FBA35A9 FBA50A9 FXSQ40A FXSQ50A £851.00 AZEZ6DAIST07S3 3 200 FBA35A9 FBA50A9 FXSQ40A FXSQ50A £917.00 AZEZ6DAIST07S4 4 200 FBA35A9 FBA50A9 FXSQ40A FXSQ50A £978.00 AZEZ6DAIST07M4 4 200 FBA60A9 FBA71A9 FXSQ63A FXSQ80A £978.00 AZEZ6DAIST07M5 5 200 FBA60A9 FBA71A9 FXSQ63A FXSQ80A
£1,092.00 AZEZ6DAIST07M6 6 200 FBA60A9 FBA71A9 FXSQ63A FXSQ80A £1,250.00 AZEZ6DAIST07L5 5 200 FBA100A FBA125A FBA140A FXSQ100A FXSQ125A £1,092.00 AZEZ6DAIST07L6 6 200 FBA100A FBA125A FBA140A FXSQ100A FXSQ125A £1,250.00 AZEZ6DAIST07L7 7 200 FBA100A FBA125A FBA140A FXSQ100A FXSQ125A £1,321.00 AZEZ6DAIST07L8 8 200 FBA100A FBA125A FBA140A FXSQ100A FXSQ125A £1,392.00 AZEZ6DAIST07XL7 7 200 FXSQ140A £1,321.00 AZEZ6DAIST07XL8 8 200 FXSQ140A £1,392.00 AZEZ6DAISL01S2 2 150 FDXM25F9 FDXM35F9 FXDQ15A3 FXDQ20A3 FXDQ25A3 FXDQ32A3 £884.00 AZEZ6DAISL01S3 3 150 FDXM25F9 FDXM35F9 FXDQ15A3 FXDQ20A3 FXDQ25A3 FXDQ32A3 £951.00 AZEZ6DAISL01M4 4 150 FDXM50F9 FXDQ40A3 FXDQ50A3 £1,014.00 AZEZ6DAISL01L5 5 150 FDXM60F9 FXDQ63A3 £1,083.00 Minimum requirements: Daikin Ducted unit from the list above + associated Easyzone kit, 1xBRC1H*, 1xAZCE6BLURFACECB Blueface controller and additional AZCE*controllers per room as required. Accessories: Accessory Ref Trade Price BRP069A81 Wifi adaptor for connection to on-line controller £87.00 BRC1H519W7 Wired touch screen remote controller - White (Included as standard) £96.00 BRC1H519S7 Wired
touch screen remote controller - Silver £100.00 BRC1H519K7 Wired touch screen remote controller - Black £104.00 BRC4C65 Wireless remote controller £181.00 K.CGL Condensing unit guard size 100-140 including RXYSQ £421.00 K.CGM Condensing unit guard size 42-71 £352.00 K.CWB140-2 Condensing unit bracket - size 100 to 140 £53.00 K.CWB90-2 Condensing unit bracket - up to size 71, max weight 90kg of ODU £41.00 K.DT1 Condensate drip tray for use with K.CWB90-2 £63.00 K.DT2 Condensate drip tray for use with K.CWB140-2 £68.00 K.RSS Wireless room mounted temperature sensor and receiver £106.00 KLIC-DI KNX Interface for Sky Air and VRV systems £221.00 KRCS01-4 Remote room mounted temperature sensor £47.00 KRP4A53 and UK.FB2 Unit/group adaptor PCB for remote on/off, status indication and temperature setting £108.00 RS-SE Service and configuration tool for K.RSS £110.00 RTD-10 and UK.FB2 Enhanced function PCB for Sky Air and VRV.
Duty rotation, Lead Lag control and heating interlock £278.00 RTD-20 and UK.FB2 Energy control PCB for Sky Air and VRV £297.00 RTD-NET and UK.FB2 Modbus interface PCB for Sky Air and VRV £224.00 UK.RC3 Return Chamber - FBA60-71 - 2X200mm Spg £97.00 UK.RC3A Return Chamber - FBA60-71 - 3X200mm Spg £105.00 UK.RC4 Return Chamber - FBA100-125-140 - 4X200mm Spg £131.00 UK.SF3 Supply flange - FBA60-71 - 2x200 Spg £88.00 UK.SF3A Supply flange - FBA60-71 - 3x200 Spg £94.00 UK.SF4 Supply flange - FBA100-125-140 - 4x200 Spg £117.00
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: Easyzone-14425
- MPN / Model: AZEZ6DAIST07XS2
- Category: Daikin Air Conditioning Accessories
- Parent Category: Daikin Air Conditioning
- Condition: New
- Availability: InStock
