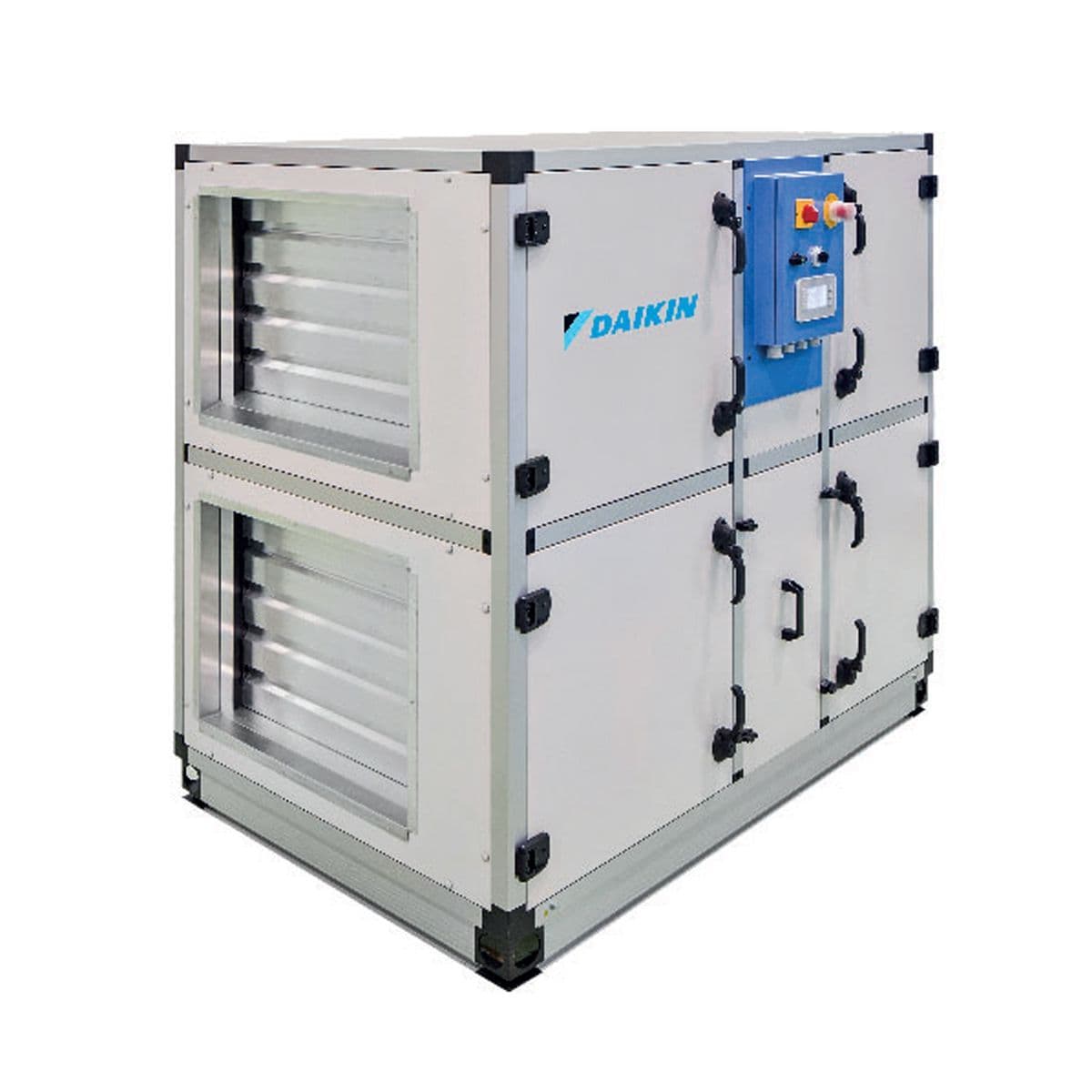

Daikin Air Conditioning Daikin ADT02FCD1 Modular Air Handling Unit Base Unit c/w Thermal Wheel & DX Module 0.52 m3/s

Daikin Air Conditioning Daikin ADT02FCD1 Modular Air Handling Unit Base Unit c/w Thermal Wheel & DX Module 0.52 m3/s

Daikin Air Conditioning Daikin ADT02FCD1 Modular Air Handling Unit Base Unit c/w Thermal Wheel & DX Module 0.52 m3/s is listed for TieDex store sale under Daikin ADTModular-R AHU Heat Recovery Units. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.

Product Overview

Daikin ADT02FCD1 Modular Air Handling Unit Base Unit c/w Thermal Wheel & DX Module 0.52 m3/s Typical Lead Time 6-8 Weeks ADT-F/B Modular-R AHU with high efficiency heat recovery. The Modular series’ Plug & Play design is more than just a convenient feature for installers. It offers cost-saving benefits as there is no need for expensive adjustments before the unit is commissioned. Plug & Play makes everyone’s life simpler, safer and more economical. Energy efficiency and indoor air quality Predefined sizes up to +46 °C ambient temperature VRV IV and ERQ coupling capability IE4 premium efficiency motor High efficiency heat wheel (heat recovery) Compact design Advanced control features Easy installation Indoor air quality compliant with VDI 6022 hygiene guideline Operating limits from -25 °C, -40 °C with electric heaters, Indoor and outdoor versions Free cooling capability Economy and Night mode

operation Monitoring and control through Daikin ITM Technical Data: D - AHU Modular R - Base Unit c/w T hermal W heel & D X Module Uni t Nomina l P e r forman c e Si z e A D T02FCD1 Supply/E x tra c t Ai r f lo w [m 3 /s] 0.52 T emp Efficien c y W in t er [%] 81.90 T emp Efficien c y Summer [%] 81.20 ESP nominal [ P a] 250 Nominal F an C ur r ent - Supply/E x tract [A ] 3.1/3.1 P o w er I nput Suppl y , Nominal [k W ] 0.58 P o w er I nput E x tra c t, Nominal [k W ] 0.56 SFPv [kW/m 3 /s] 2.00 Ele c trical Supply [ V -Ph- H z] 230-1-50

L ength [mm] 2400 Depth [mm] 820 Height ( I ncluding Base F r ame) [mm] 1320 W eight [kg] 414 D X T otal C ooling C apacity [k W ] 4.6 Ou t door Unit Nominal C ooling P o w er I nput [k W ] - Sound P o w er L e v el - L w dB ( A) (1) 76 Product Features: Single refrigerant circuit (2 scroll compressors) with single evaporator Compact design Micro channel heat exchanger technology reduces the amount of refrigerant used in the system, lowering environmental impact Partial and total heat recovery option available Stainless steel plate heat exchanger Controller with superior control logic and easy interfacing R32 refrigerant PDF Data Sheet:

Key Details

• Brand / Vendor: Daikin Air Conditioning
• Product SKU: ADT02FCD1
• MPN / Model: ADT02FCD1
• Category: Daikin ADTModular-R AHU Heat Recovery Units
• Parent Category: Daikin Air Conditioning
• Condition: New
• Availability: InStock
