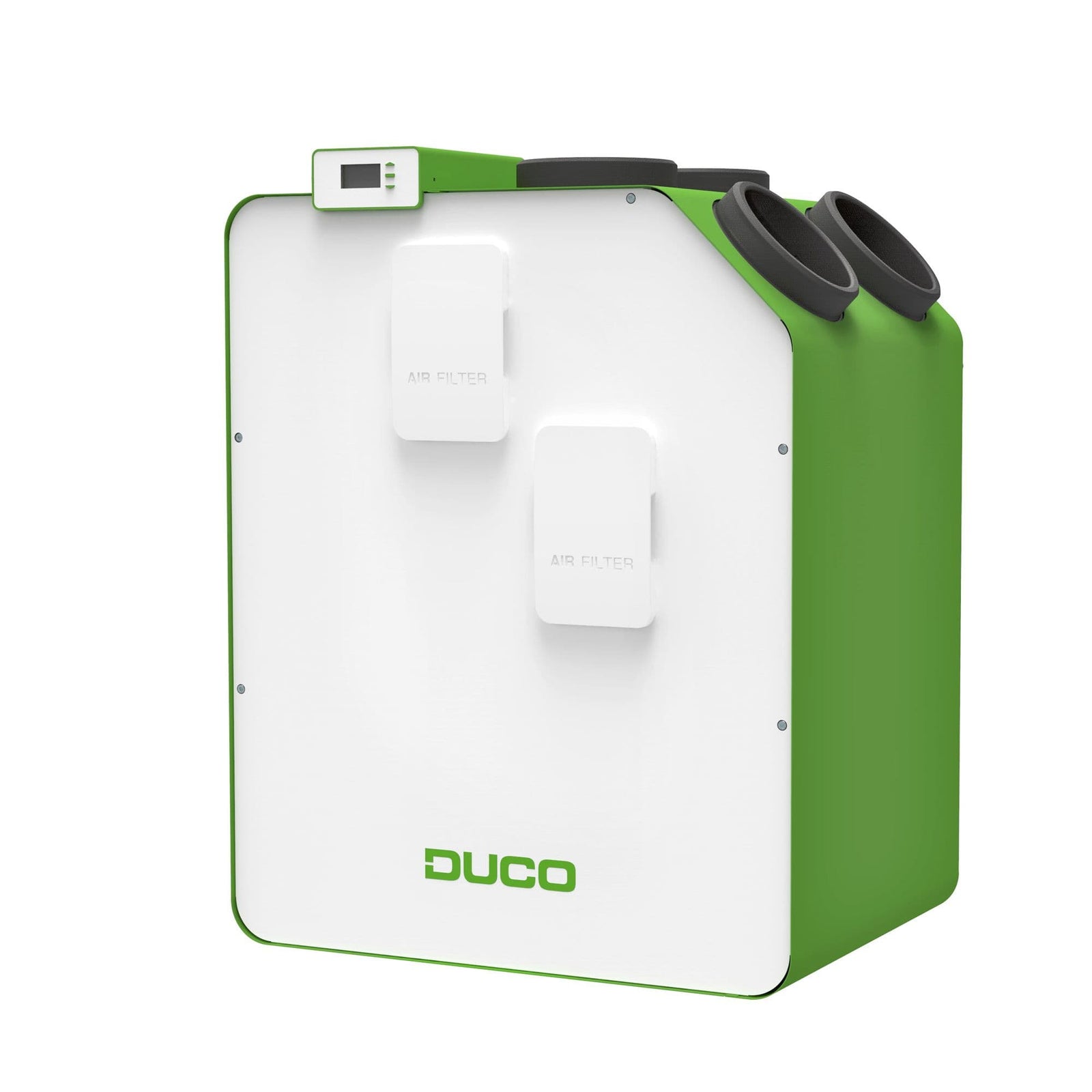

Daikin Air Conditioning Daikin Residential Centralized CHRV DucoBox Energy Comfort 325 325 m³/h 230V~50Hz
Daikin Air Conditioning Daikin Residential Centralized CHRV DucoBox Energy Comfort 325 325 m³/h 230V~50Hz is listed for TieDex store sale under Daikin Air Conditioning Total Heat Exchanger VAM / VKM. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Daikin Residential Centralized CHRV DucoBox Energy Comfort 325. The Duco systems from Daikin offer a complete range of Centralized Heat Recovery Ventilation (CHRV) units, ducts & accessories. The DucoBox Energy Comfort is a compact and light mechanical ventilation unit with heat recovery. With a capacity of up to 325 m³/h, this is the balanced ventilation solution for apartments and serial housing construction.The demand control of the DucoBox Energy Comfort results in intelligent and energy-efficient operation.Together with the smart demand control based on CO2 and humidity, the dynamic air distribution filters ensure exceptional efficiency within this compact unit.The left/right switch is carried out 100% by software thanks to a patented principle of double bypass.Moreover, this lightweight unit weighs just 21 kg. In other words: it is easy to install by one person. The automatic configuration ensures the device can be installed
quickly and professionally. With DucoFlex, Daikin provides a complete air duct system for CHRV. When you use DucoFlex, you will also benefit from a low noise package. This consists of the highest airtightness class D, the lowest air resistance and maximum acoustic comfort.The result is an energy-efficient and quiet ventilation system. The room is only ventilated when necessary and in the correct amount. CO2 concentration and air humidity are used as indicators. This helps avoiding unnecessary heat loss while guaranteeing an optimal indoor climate. With the optional Communication Print you have the option of allowing the DUCO ventilation systems to communicate via ModBus and/or Ethernet. ModBus integration enables them to be linked to a building management system. Key Product Features: Smart demand control based on CO2 and/or humidity measurement Automatic calibration Compact & light unit: 705 x 700 x 525
mm L/R switch - 100% software-based Dynamic Airflow Filters Low power consumption due to energy-efficient EC motors Auto fan mode One of the quietest ventilation systems on the market Optimal indoor air quality in the most energetically optimised manner thanks to the two-zone control Technical Specifications: Physical Properties Dimensions Height x Width x Depth mm 705 x 700 x 525 Weight kg 21 Casing Coated sheet steel + EPP Colours White + black Connections Interior diameter: Ø 160 mm Condensate drain Ø 32 mm (1 ¼”) (2x) Heat exchanger PET / Polystyrene Interior material EPP / PP / ABS Power plug cable length 2 m (from top of device) Mounting Wall mounting (standard) - Floor mounting optional Electrical Characteristics Maximum electrical capacity 325 m3/h at 150 Pa 111.5W Power supply 230 V, 50 Hz via 3-core power cable with earthed
plug Plugs 0-10 V in/outputs Motor type DC IP class IP40 Efficiency 91.1 % (EN 13141-7) Miscellaneous Energy Class With 2 sensors: A+. Others: A Filters Supply air: Standard: ISO 16890 Coarse 65 % (= G4) Exhaust air: Standard: ISO 16890 Coarse 65 % (= G4) Summer bypass Full (100% modulating) Frost protection Imbalance Fans EC fan with curved blades Automatic configuration Yes (constant pressure) Constant flow control Yes Controls Integrated display Use via control switches and room sensors Optionally via smartphone / tablet (if communication print in device*) Sensors Integrated: pressure, temperature, humidity (via optional box sensor), onboard switch contact External: CO2 (via optional room sensor), humidity (via optional room sensor), external switch contact (voltage-free input) (optional) Communication Standard: DUCO RF, DUCO Wired, Switch contact Can be expanded with communication print: ModBus, PWM-IN, PWM-OUT, Switch contact (3x), Ether- net,
Micro SD-card slot * Optional PCB to communicate via Modbus, PWM-IN / PWM-OUT, 3 x Switch Sensor (volt-free input), Ethernet, Micro SD card slot. Options: Type Reference Description CHRV 00004591 Comfort 325 00004456 Premium 325 / 1 Zone LEFT 00004460 Premium 325 / 1 Zone RIGHT 00004458 Premium 325 / 2 Zone LEFT 00004462 Premium 325 / 2 Zone RIGHT 00004464 Premium 400 / 1 Zone LEFT 00004468 Premium 400 / 1 Zone RIGHT 00004466 Premium 400 / 2 Zone LEFT 00004470 Premium 400 / 2 Zone RIGHT Category Reference Description DucoFlex 00004552 Circular air duct D63 - 50m 00004563 Floor plenum 12 x 63 - D180 00004565 Floor plenum 12 x 63 - 2 oval 00004564 Ceiling plenum 12 x 63 - D180 00004560 Valve connector right angled 3x63 - D125 00004561 Valve connector right angled short 3x63 -
D125 00004562 Adaptor 3 x 63 oval 00004608 Connector riser round 3 x 63 - D125 00004566 Connector riser round D160 - 2 oval 00004567 Oval rigid W163 x H68 - 1.15m 00004568 Oval rigid - Connection Pieces 00004609 Oval Rigid - 90° horizontal (can be split into 45°) 00004553 O-ring D63 (10 units) 00004554 Coupling D63 00004599 Duct cutter 00004569 Star Round Rigid Duct D160 - 1000mm - Insulated EPP 00004570 Star Round Rigid Duct D180 - 1000mm - Insulated - EPS 00004571 Star Elbow 90° - D160 - Insulated - EPP 00004572 Star Elbow 90° - D180 - Insulated - EPS 00004573 Star Elbow 45° - D160 - Insulated - EPP 00004574 Star Elbow 45° - D180 - Insulated - EPS 00004575 Star Connection Piece D160 - Insulated - EPP Category Reference Description DucoFlex 00004576 Star Connection D180
- insulated - EPS 00004627 Wall terminal white D160 00004582 Roof terminal Compact D160 - Slate 00004578 Roof terminal D160 / D180 00004581 Roof terminal for flat roofs D160 / D180 00004579 Roof terminal tile D160/180 00004631 Silencer D160 (M/M) - 1000mm 00004632 Silencer D180 (M/M) - 1000mm 00004587 Silencer Semi Rigid D160 - 1000mm 00004588 Silencer Semi Rigid D180 - 1000mm PDF Brochure Data sheet:
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: Energy Comfort 325
- MPN / Model: Energy Comfort 325
- Category: Daikin Air Conditioning Total Heat Exchanger VAM / VKM
- Parent Category: Daikin Air Conditioning
- Condition: New
- Availability: InStock
