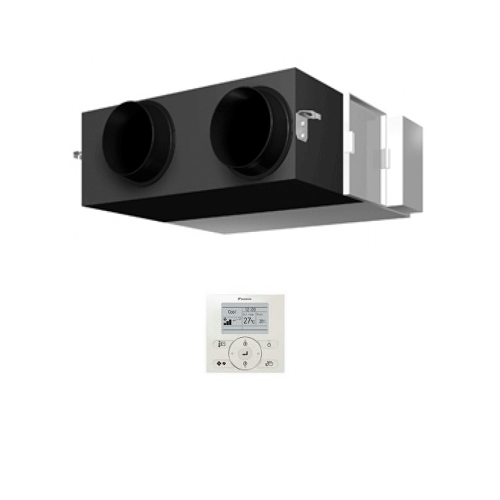

Daikin Air Conditioning Ducted Heat Exchanger VAM250FC 250M3/hr 240V~50Hz
Daikin Air Conditioning Ducted Heat Exchanger VAM250FC 250M3/hr 240V~50Hz is listed for TieDex store sale under Daikin Air Conditioning Total Heat Exchanger VAM / VKM. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Includes Premium Controller: BRC1E53A Buildings need year round ventilation. In traditional ventilation systems the conditioned inside air is lost when exhausted externally and new unconditioned air is brought into the building. This results in large amounts of air being heated up or cooled down over and above the actual load of the air conditioning system and leads to a substantial waste of energy. The Daikin VAM and VKM systems however, automatically balances outside and inside temperature and humidity enabling the recovery of heat/cold with significant savings in running costs. The Daikin VAM heat exchange system can be utilised virtually anywhere to extract stale air and then recover the heating or cooling energy to either warm or cool incoming fresh air.The heat exchange element uses a high efficiency paper (HEp) possessing superior moisture absorption and humidifying properties. The heat exchange unit
rapidly recovers heat contained in latent heat (vapour). The element is made of a material with flame resistant properties and is treated with an anti-moulding agent. The free cooling option reduces the air conditioning energy consumption and uses energy in a more efficient way by actively introducing fresh air into rooms. Free cooling maintains indoor comfort through the introduction of low temperature outdoor air into rooms. Product Key Feature's: Effective Fresh Air Ventilation Free Cooling Function Good Sound Attenuation Temperature Exchange Efficiency (up to 80%) No Outdoor Unit Unit Specifications: VAM250FC Dimensions (excluding switch box & transitions) Height mm 285 Width mm 776 Depth mm 525 Weight kg 24 Duct Connection Diameter mm 150 Air Flow Rate Ultra-High m3/hr 250 High m3/hr 230 Low m3/hr 155 Ultra-High m3/sec 0.069 High m3/sec 0.064 Low m3/sec 0.043 External Static Pressure Ultra-High Pa
70 High Pa 63 Low Pa 25 Sound Pressure Level (Heat Exchange Mode) Ultra-High dBA 28.0 High dBA 26.0 Low dBA 21.0 Electrical Details Power Supply V / Hz / Phase 230 / 50 / 1 Running Cur rent A 0.9 Max Fuse Siz e A 16 Optional Accessory Compatibility VAM250FC Inlet Heater Battery+ VH2B + Heater battery does NOT require PCB adaptor to connect to VAM. UK.VH-CK VAM EHBX24 conversion kit cable included. Optional Inlet Heater Batter y VH1B VH2B Capacity kW 1 1 Duct Diameter mm 100 150 Accessories: Wired touch screen remote controller - White BRC1H519S7 Wired touch screen remote controller - Silver BRC1H519K7 Wired touch screen remote controller - Black KRP2A52 and UK.FB2 System adaptor PCB for remote on/off, status indication and temperature setting RTD-Net and UK.FB2 Modbus Interface PCB for Sky Air and VRV RTD-20
and UK.FB2 Energy control PCB for Sky Air and VRV BRP4A50 PCB Adaptor for VAM-FC series connection to 3rd party heater KRP50-2 PCB Adaptor for VAM-FC series connection to humidifier BRP4A50A PCB Adaptor for VAM-J Series connection to 3rd party heater or humidifier EKMP65VAM Mounting Plate for adaptor PCB installation on VAM650J EKMPVAM Mounting Plate for adaptor PCB installation on VAM1500 / 2000 J EKAFVJ50F6 Air filter for VAM350 / 500 J : ePM10 70% (M6) EKAFVJ50F7 Air filter for VAM350 / 500 J : ePM1 55% (F7) EKAFVJ50F8 Air filter for VAM350 / 500 J : ePM1 70% (F8) EKAFVJ65F6 Air filter for VAM650J: ePM10 70% (M6) EKAFVJ65F7 Air filter for VAM650J: ePM1 55% (F7) EKAFVJ65F8 Air filter for VAM650J: ePM1 70% (F8) EKAFVJ100F6 Air filter for VAM800 / 1000 / 1500 / 2000 J : ePM10 70% (M6)
EKAFVJ100F7 Air filter for VAM800 / 1000 / 1500 / 2000 J : ePM1 55% (F7) EKAFVJ100F8 Air filter for VAM800 / 1000 / 1500 / 2000 J : ePM1 70% (F8) BRYMA65 CO2 Sensor for VAM350 / 500 / 650 J BRYMA100 CO2 Sensor for VAM800 / 1000 J BRYMA200 CO2 Sensor for VAM1500 / 2000 J EKPLEN200 Plenum chamber for VAM1500 / 2000 J (4 required per VAM) 350mm duct
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: VAM250FC
- MPN / Model: VAM250FC
- Category: Daikin Air Conditioning Total Heat Exchanger VAM / VKM
- Parent Category: Daikin Air Conditioning
- Condition: New
- Availability: InStock
