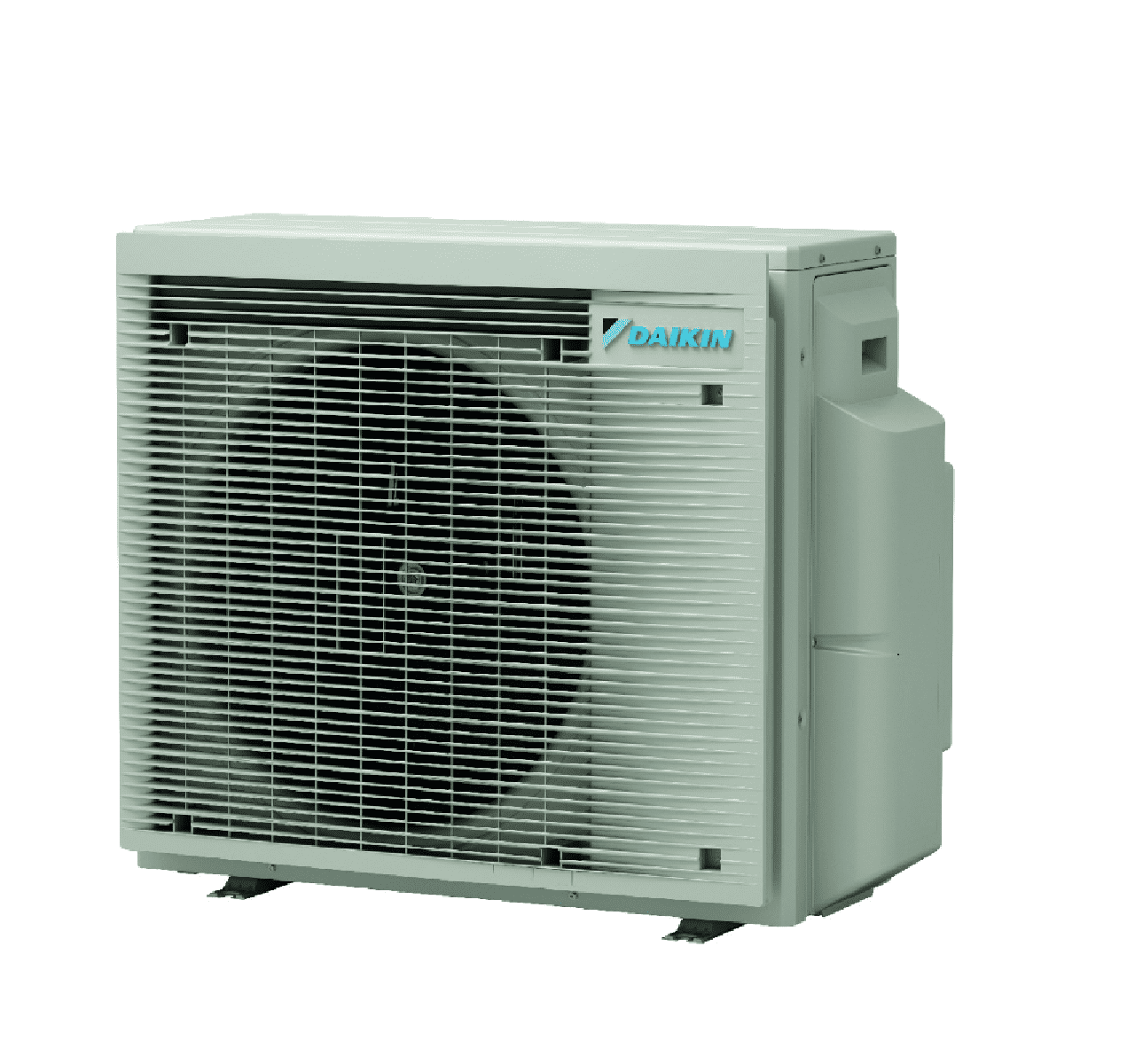

Daikin Air conditioning Multi 2MXM40A Condensing Unit Inverter Heat Pump 2 Port R32 A+++ 240V~50Hz
Daikin Air conditioning Multi 2MXM40A Condensing Unit Inverter Heat Pump 2 Port R32 A+++ 240V~50Hz is listed for TieDex store sale under Daikin MXS Multi Air Conditioning Inverter Heat Pump A+++. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Daikin Air conditioning Multi 2MXM40A Condensing Unit Inverter Heat Pump 2 Port R32 A+++ 240V~50Hz This Kit Includes: 1 of Daikin Air conditioning Multi 2MXM40A Condensing Unit Inverter Heat Pump 2 Port R32 A+++ 240V~50Hz The variable capacity R32 multi systems are ideal for light commercial and residential applications, having the highest SCoP and low start currents, ideal where there is limited power supply. The Inverter outdoor units are suitable for 2 connected indoor units, depending on the model. Each indoor unit is connected directly by a pair of small diameter refrigerant pipes to the outdoor unit. There are no branch joints involved. All connected indoor units operate in the same mode, i.e. either all Heating, or all Cooling. There are many permutations of connectible indoor units to each outdoor unit. These are listed below. The cooling and heating data
is based on all connected units operational at the same time at full load. In practise the load in each room is unlikely to be at 100% continuously, so the available spare capacity is then shared to other units accordingly. Daikin air conditioning has been manufacturing multi systems for residential applications for many years. The latest state-of-the-art Inverter technology is now applied to the range, delivering exceptionally high efficiency, as well as variable individual unit control for stable and comfortable conditions. OUTDOOR UNIT: Different types of indoor units can be connected: e.g. wall mounted, ceiling mounted cassette corner, concealed ceiling unit Outdoor units are fitted with a swing compressor, renowned for its low noise and high energy efficiency Up to 2 indoor units can be connected to 1 multi outdoor unit; all indoor units are individually controllable and do not
need to be installed in the same room or at the same time. They operate simultaneously within the same heating or cooling mode. Choosing for an R-32 product, reduces the environmental impact with 68% compared to R-410A and leads directly to lower energy consumption thanks to its high energy efficiency Seasonal efficiency values up to A+++ in cooling and A++ in heating thanks to its up-to-date technology and built-in intelligence New design outlook for outdoor unit Compressor Type Hermetically sealed swing compressor Dimensions Unit Depth 350 mm Height 552 mm Width 852 mm Operation range Cooling Ambient Min. 46 °CDB Piping connections Additional refrigerant charge 0.02 (for piping length exceeding 20m) kg/m Level difference IU OU Max. 7.5 m Total piping length System Actual 30 m Power supply Frequency 50 Hz Phase 1~ Voltage 220-240 V Refrigerant Charge 0.88 kg
GWP 675 Type R-32 Sound pressure level Cooling Nom. 48 dBA Weight Unit 36 kg PDF Data: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: 2MXM40A
- MPN / Model: 2MXM40A
- Category: Daikin MXS Multi Air Conditioning Inverter Heat Pump A+++
- Parent Category: Daikin Air Conditioning
- Condition: New
- Availability: InStock
