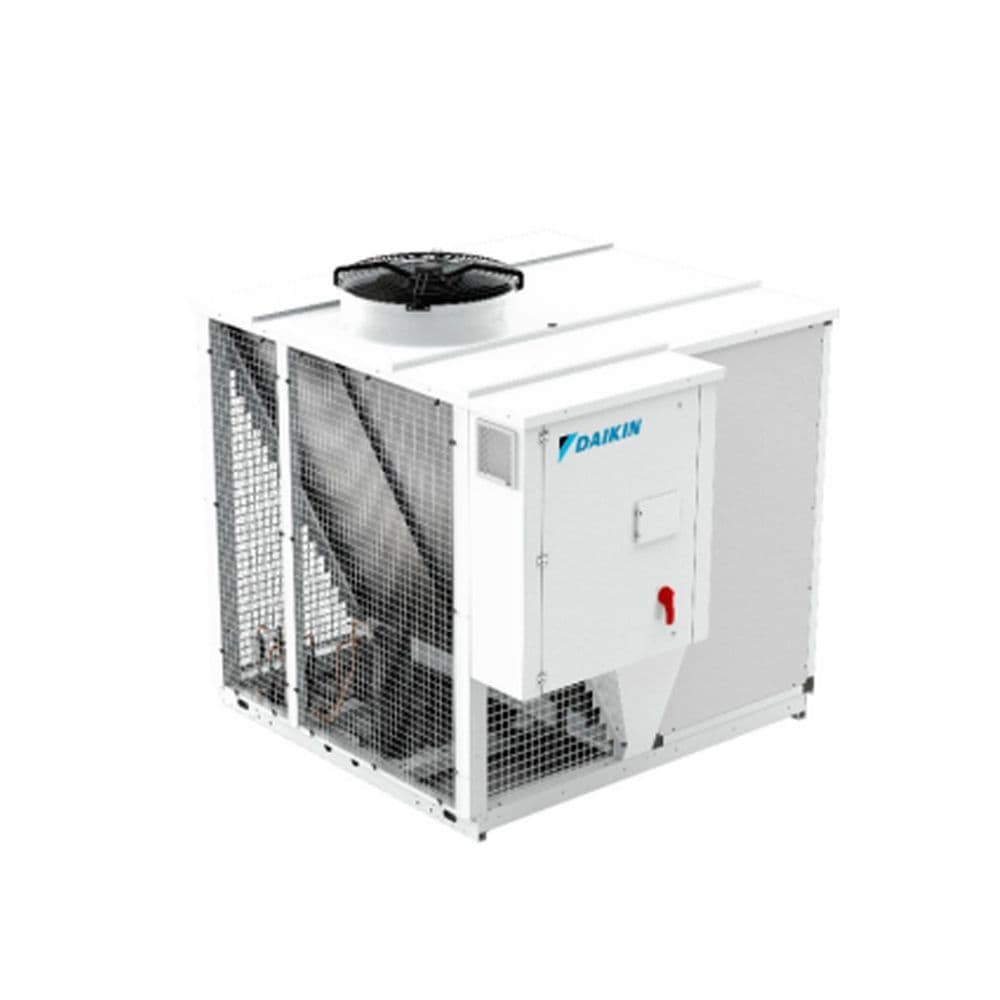

Daikin Air Conditioning Rooftop Packaged UATYA110BBAY1 Heat Pump 110Kw/374000Btu 415V~50Hz
Daikin Air Conditioning Rooftop Packaged UATYA110BBAY1 Heat Pump 110Kw/374000Btu 415V~50Hz is listed for TieDex store sale under Daikin Air Conditioning Rooftop Packaged UATYA-BBAY1 Heat Pump Base Model. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
UATYA110BBAY1 This package includes the UATYA complete system assembled and delivery to site with crane curb side delivery, the unit is delivered via a hiab truck with a 6 metre reach. The Daikin packaged rooftop UATYA cooling and heating air conditioning system (now in R32 2021) combines the economy and simplicity of split system technology with the flexibility of ducted air distribution. The compressor, evaporator and condenser units are combined into a fully integrated package which can supply efficient cooling or heating, all through conventional ducting and air grilles located throughout the building. It has a wide operating range, flat top unit design which allows maximum use of warehouse and container space. Easy to install ‘plug and play’ concept plus single installation configuration, no additional piping is required since indoor and outdoor sides are pre-connected. Daikin UATYA convertible return and
supply air: fan can be mounted in two directions and is factory pre-charged refrigerant ensures clean and efficient operation. Belt driven fan enables air volume and static pressure to be adjusted as required. Anti-corrosion treated coil. Supplied with high efficiency and reliable scroll compressors, optimised heat exchangers and high-performing fans, the rooftop UATYA series are designed to ensure a high energy efficiency and reduced consumption. ​ Rooftop for Retail, Warehouses & Industry: For building managers and engineers, warehouses or industrial applications can pose serious HVAC challenges because of their size and unique design. Daikin rooftops provide the solution: Indoor/outdoor packaged unit and factory charged refrigerant provide cost-effective installation. High ESP up to 800Pa allows extensive duct-work to evenly distribute the air across a large space. Scroll compressor and free cooling ensure highly efficient 24/7 operation. Clogged filter alarm indicates when
filter needs cleaning, ensuring optimum operation and minimised energy consumption. Retail & department stores need challenging design because of limited space and complex building structure, containing different floors and spaces. Daikin rooftops provide the solution: Duct-work can be connected flexibly (front, left, right, bottom) to optimise installation space High efficiency EC plug fans are maintenance free, limiting the downtime of the system for maintenance. Extraction damper and fan ensure there is no overpressure in the building and air circulation is optimised. High indoor air quality can be guaranteed thanks to integrated fresh air provision and multiple air filtration possibilities. Key Product Features: Heat Pump heating and cooling R32 refrigerant 3 phase power supply ON/OFF Switch & Auto-restart Temperature Setting (16°C to 30°C) Operation Modes: - Cooling Only: Cool / Dry / Fan Heat Pump: Auto / Cool / Dry /
Heat / Fan Fan Speed Selection & Air Swing Timer (setting range between 1 to 15 hours) Sleep Mode (only possible under ‘cool’ or ‘heat’ mode operation) Technical Data: Model: UATYA-BBAY1 110 Cooling capacity Nom. kW 108.9 Heating capacity Nom. kW 101.5 EER 2.99 COP 3.35 Space cooling Capacity Pdesign kW 108.9 SEER 5.29 ηs,c % 208.64 Space heating (Average climate) Capacity Pdesign kW 101.5 SCOP/A 3.56 ηs,h % 139.28 Evaporator Supply side Air discharge direction Bottom, Right, Left Fan Air flow rate m³/h 19,800 Nominal ESP Pa 300 Return side Air intake direction Rear Thermodynamic heat recovery No Fresh air Standard No Condenser Air flow rate Cooling m³/h 38,143 Refrigerant Type R-32 GWP 675 Charge tCO2Eq 20.250 kg 30 Dimensions Unit Height mm 2,374 Width mm 2,250 Depth mm 4,317 Weight Unit kg 2,242 Casing Colour RAL 7035 Sound
pressure level Cooling dBA 70.6 Sound power level Cooling dBA 90.5 Operation range Cooling Min. °CDB 26 Power supply Phase 3~ Frequency Hz 50 Voltage V 400 Recommended fuses A 100 Field applied accessories for Made-To-Stock units: Ac cessories MTS - BASE series - UATYA-BBAY1 80-120 Air treatment Filter ISO Coarse 75% (G4) 12x UATYAC75C (Standard) Filter ISO ePM10 50% (M5/F5) 12x UATYAEP- M1050C Filter ISO ePM10 70% (M6) 12x UATYAEP- M1070C Rigid bag filter ISO ePM1 50% (F7) 12x UATYAEP- M150C Rigid bag filter ISO ePM1 85% (F9) 12x UATYAEP- M185C Control UATYACO2P - Duct air quality CO2 probe • UATYACAP - Constant air pressure control airflow transducer • UATYAWRC - Remote touch screen wired remote controller • UATYARRP - Room temperature return probe (incl. housing) • UATYASA - Fire and smoke alarm • Other Rubber antivibration mounts 4x
UATYAAVM1 Rainproof hood with anti-intrusion grille Control UATYACO2P - Duct air quality CO2 probe UATYACAP - Constant air pressure control airflow transducer UATYAWRC - Remote touch screen wired remote controller UATYARRP - Room temperature return probe (incl. housing) UATYASA - Fire and smoke detector Other Rubber anti vibration mounts Rainproof hood with anti-intrusion grille PDF Data:
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: UATYA-BBAY1-14748
- MPN / Model: UATYA110BBAY1
- Category: Daikin Air Conditioning Rooftop Packaged UATYA-BBAY1 Heat Pump Base Model
- Parent Category: Daikin Air Conditioning Rooftop Packaged Units (Heat Pumps)
- Condition: New
- Availability: InStock
