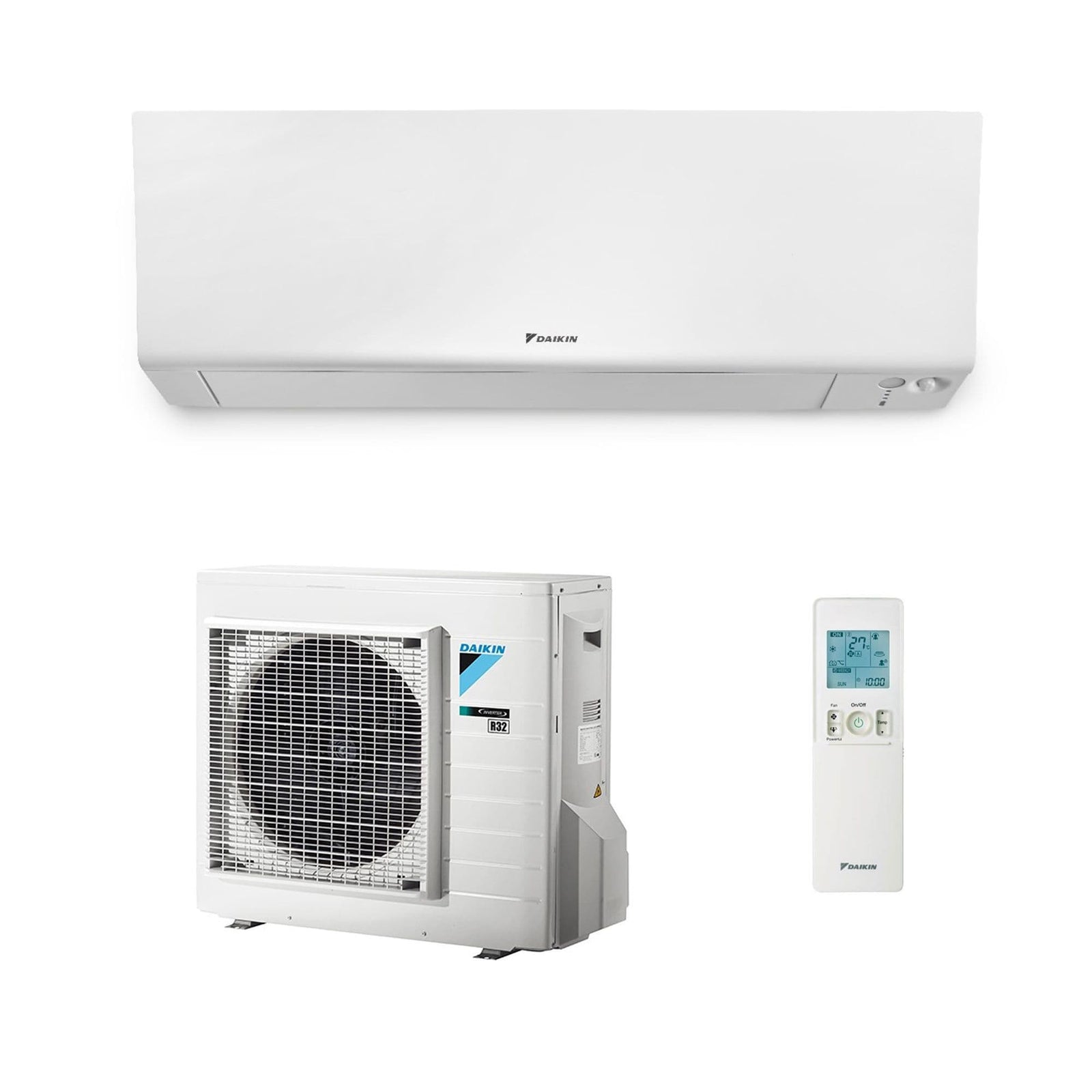

Daikin Air Conditioning RXM25R-FTXM25R Wall Mounted 2.5Kw/9000Btu Inverter Heat Pump Install Kit
Daikin Air Conditioning RXM25R-FTXM25R Wall Mounted 2.5Kw/9000Btu Inverter Heat Pump Install Kit is listed for TieDex store sale under Daikin Air Conditioning Wall Mounted R32 Inverter Heat Pump FTXM, FTXA. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Daikin Air Conditioning RXM25R-FTXM25R Wall Mounted 2.5Kw/9000Btu Inverter Heat Pump R32 A+++ Wi-Fi embedded Wi-Fi 220-240V~50Hz This Is a Complete Kit which Includes: 1 x Daikin Air Conditioning FTXM25R Wall Mounted 2.5Kw/9000Btu Heat Pump R32 A+++ With Wi-Fi fitted as standard 1 x Daikin Air Conditioning RXM20R Outdoor Unit 2.5Kw/9000Btu Inverter Heat Pump R32 A+++ 240V~50Hz 1 x Daikin Air Conditioning ARC466A67 Ir remote control 15 Meters x 1/4 inch coil pipe. 15 Meters x 3/8 inch coil pipe. 8 x Isoline (1/4 x 3/8) insulation 2 meter lengths Black 8 x Isoline (3/8 x 3/8) insulation 2 meter lengths Black 1 x Wall Bracket Outdoor Unit BJ TYPE 2 60KG LOAD 15 Meters cable rated inter-connecting 4 core 1.5mm High Seasonal Efficiency A+++ Rated The new FTXM range is equipped with an advanced heating function to provide ideal comfort.
When the Heat Boost mode is activated, the space is warmed up rapidly as the set temperature is reached 14% faster when compared with common air conditioners. Suitable for bedrooms, living rooms or small offices, the FTXM range is equipped with an infra-red remote control with a 7-day timer. The timer allows you to programme a 7-day schedule with 4 different actions per day. Alternatively, the FTXM can be controlled via smart phone or tablet using the “Residential Controller App”, Alexa or Google Home. The indoor unit is easily connected using the integrated WLAN PCB board. All units are fitted with 2-area Intelligent Eye sensors, which keep the room comfortable while ensuring running costs are kept to a minimum. About the Intelligent eye: If the sensor detects the room is empty, it will switch to economy mode to save energy
then restarts when someone re-enters. When people are detected in the room the sensor will direct air-flow away from them. All units in the FTXM range are fitted with a Titanium apatite deodorising filter which eliminates odours from e.g. tobacco and pets smells. The Flash Streamer, which breaks down allergens such as pollen and fungal spores, provides better and cleaner air. Please note the Flash Streamer technology has not been certified for medical purposes. Key Product Features: Features Benefits Heat Boost Mode Compressor frequency is adjusted for a quick and comfortable heating start up so set temperature can be reached faster. Flash Streamer Breaks down allergens such as pollen and fungal spores and removes odours providing better, cleaner air. The Flash Streamer is not meant to be used for medical purposes. Intelligent Eye Sensor Reduced running costs by switching to
economy mode when the room is empty. 7 day timer Set a full week of on and off-timings, allowing differences in schedule for week and weekends Very low noise level Quiet operation means that the FTXM series is unobtrusive when operating. Automatic airflow adjustment Can improve comfort levels as the unit will automatically match fan-speed according to room temperature. Technical Data: Indoor Units FTXM25R Capacity Nominal Cooling kW 2.5 Nominal Heating kW 2.8 Seasonal Efficiency (EN14825) COOLING Energy Label A+++ Pdesign kW 2.5 SEER 8.65 Annual Energy Consumption kWh 101 Seasonal Efficiency (EN14825) HEATING Energy Label A+++ Pdesign kW 2.4 SCOP 5.10 Annual Energy Consumption kWh 659 Nominal Efficiency EER/COP 4.50 / 5.00 Air Flow Rate (Cooling) High / Nom / Low / Silent m3/sec 0.185 / - / 0.103 / 0.073 Dimensions Height mm 295 Width mm 778 Depth
mm 272 Weight kg 12 Sound Pressure (Cooling) High / Nom / Low / Silent dBA 41 /19 Sound Pressure (Heating) High / Nom / Low / Silent dBA 39 / 20 Sound Power (Cooling) dBA 57 Outdoor Units RXM25R Dimensions Height x Width x Depth mm 550 x 765 x 285 Weight kg 32 Electrical Details Power Supply 1ph Running Current - Cooling A 2.60 Max Fuse Size A 13 Interconnection Wiring Core / Cable size 3+E / 1.5 Piping Connections Liquid / Gas inches (mm) 1/4 (6.35) / 3/8 (9.5) Pipe-work Maximum Length m 20 Maximum Vertical Rise m 20 Pre-charged to m 10 Additional Charge g/m 20 Holding Charge kg 0.76 Sound Pressure (Cooling) Nominal dBA 46 Sound Pressure (Heating) Nominal dBA 47 Sound Power (Cooling) dBA 58 Operating Range (Cooling) Min / Max °CDB -10 /
50 Operating Range (Heating) Min / Max °CWB -20 / 24 Accessory Description: BRC073 Optional wired remote controller BRC1E53A style - Connection cable required BRCW901A03 3m connection cable for BRC073 BRCW901A08 8m connection cable for BRC073 K.CGS Condensing unit guard size 20-35 KLIC-DD KNX interface for Split type systems KRP928A2S Adaptor PCB for interface to Daikin centralised control systems KRP413A1S Adaptor PCB for remote on/off control - constant/pulse contact RTD-RA Adaptor PCB for Modbus connection and/or extended system functions PDF Data: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer.
This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: RXM25R - FTXM25R inst
- MPN / Model: RXM25R - FTXM25R inst
- Category: Daikin Air Conditioning Wall Mounted R32 Inverter Heat Pump FTXM, FTXA
- Parent Category: Daikin Wall Air Conditioning FTXP, FAQ, FTXJ, FTXZ and FTXM A+, A++, A+++
- Condition: New
- Availability: InStock
- TieDex UK
