Danfoss Optyma Frozen Food EVS201/BED OP-LSQM026AJW05G -21 DegC 5M3 Room Coldroom Kit
Danfoss Optyma Frozen Food EVS201/BED OP-LSQM026AJW05G -21 DegC 5M3 Room Coldroom Kit is listed for TieDex store sale under Coldstore Chiller and Freezer Kits. The brand/vendor is Danfoss. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

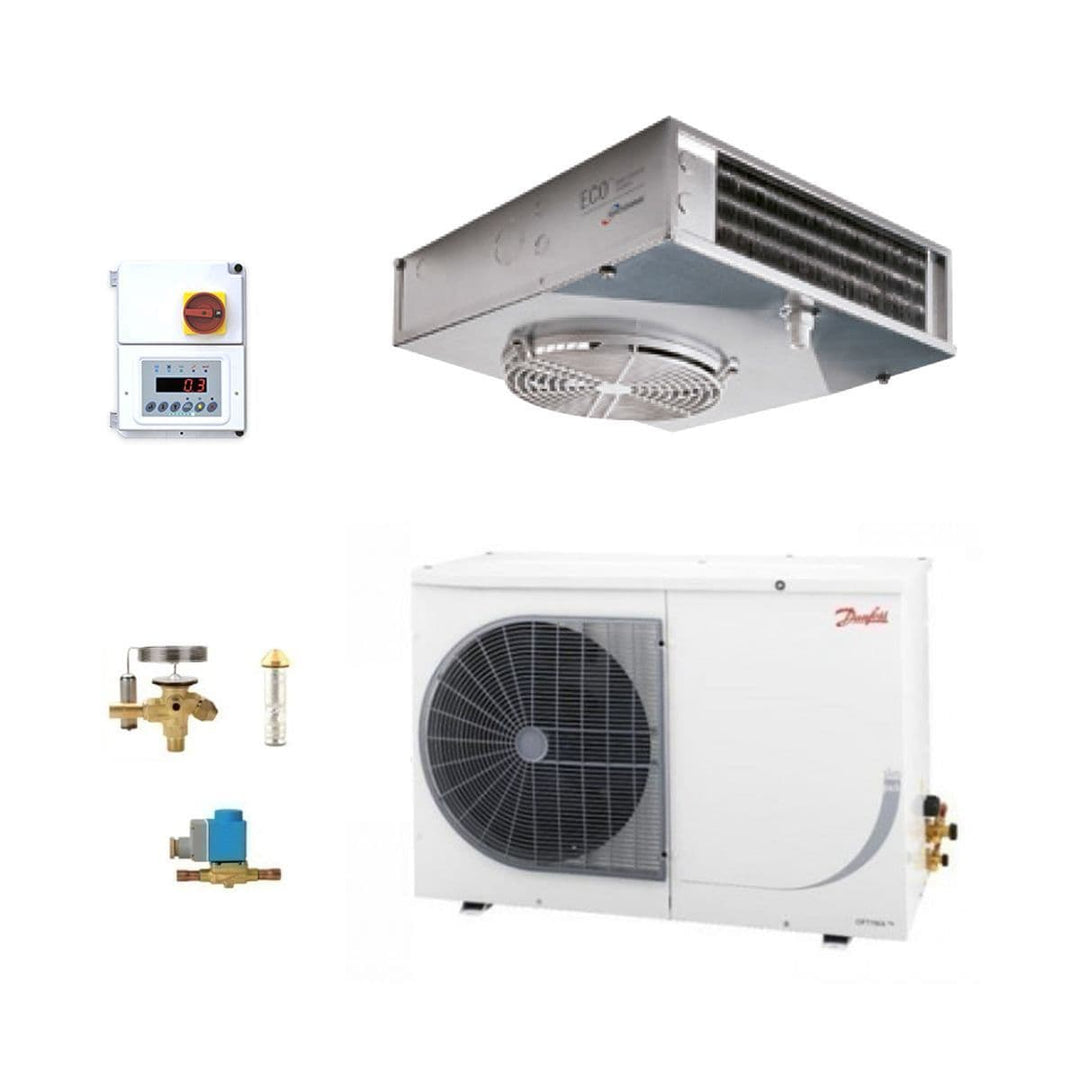

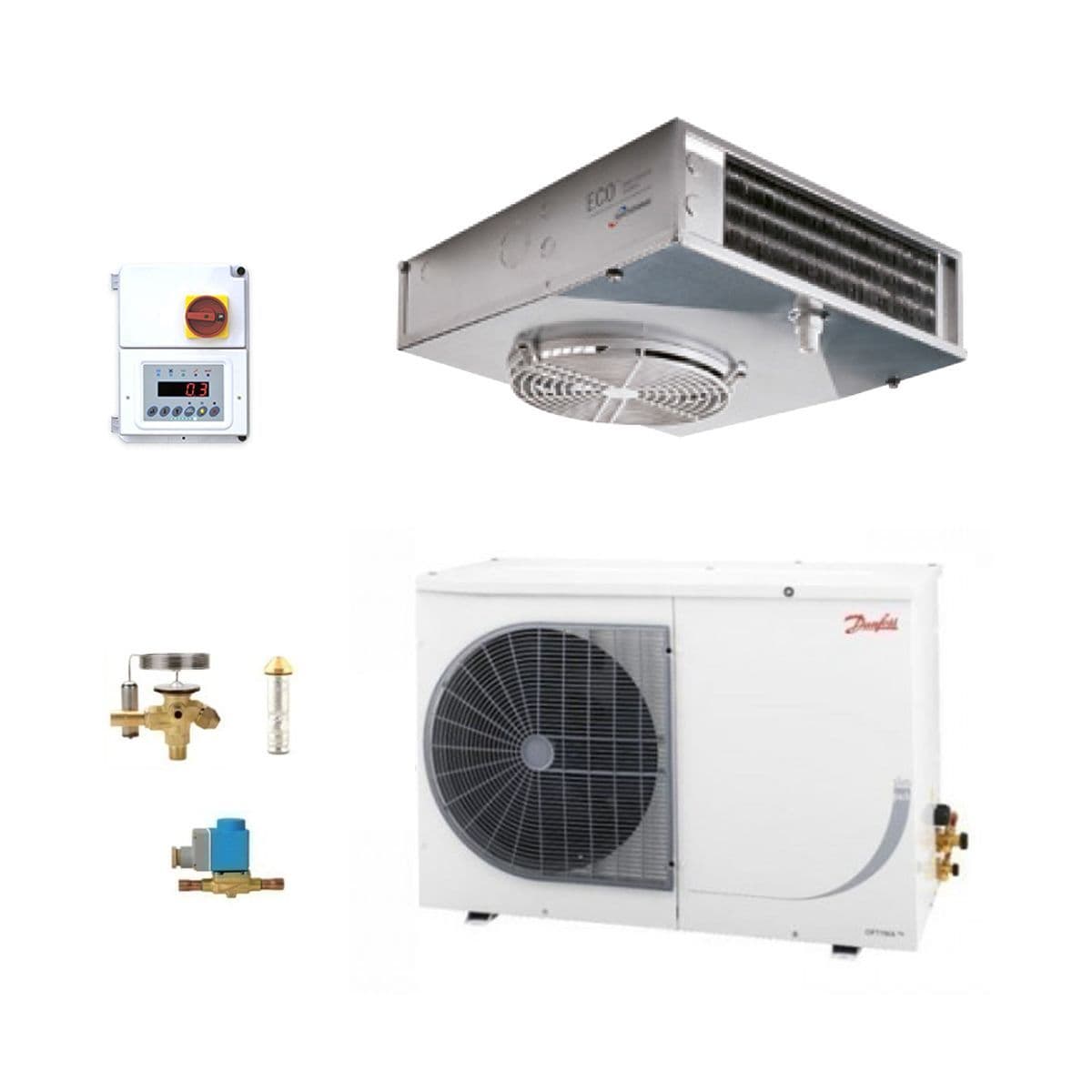

Frozen Food Danfoss Optyma OP-LSQM026AJW05G Condensing Unit With Eco EVS EVS201/BED Internal Evaporator Blower Cooler -21 DegC Room Size: 5 Meters Cubed This refrigeration kit includes: 1 Piece Low Temperature OP-LSQM026AJW05G Danfoss Optyma Condensing Unit (Not charged with refrigerants) 230V~50Hz 1 Piece EVS201/BED ECO GCE Compact Cooler Evaporator Blower 230V~50Hz 1 Piece Danfoss TEV TE2 R452A Range N, 3/8" Flare Inlet + 1/2" Solder Outlet 1 Piece Danfoss T2/TE2 Orifice No 1 3 Pieces 3/8 Flare Nut 1 Piece Danfoss Solenoid Valve 032F1204 (EVR 3) 3/8" Solder 1 Piece Danfoss Solenoid coil 230V~50Hz 018F670200 1 Piece 3/8 Flared Drier 1 Piece 3/8 Sight Glass Flared This is a complete refrigeration plant kit for a frozen food holding room with a operating temperature of -21 DegC. This kit contains a Danfoss condensing unit, Eco EVS indoor evaporator, flare nuts, drier, sight-glass,
solenoid valve + coil and an electronic controller. This kit is ideal for a freezer cold room replacement or as a new installation. Danfoss Optyma Condensing Unit: Compact and cost effective, when space, quieter operation, efficiency, faster and safer installation are required Danfoss Optyma is the natural choice. Danfoss Optyma condensing units are the market leader in refrigeration chiller/freezer product with a global presence and wide equipment range. The Danfoss Optyma slim all in one A/C style outdoor units work on refrigerant R404A, R452A and R507A and operate with a low temperature back pressure. This kit has been designed to operate at temperatures of -21 Deg centigrade and work with R452A refrigerant. Mobine Eco Compact Indoor Cooler: The Mobine Eco compact indoor unit range is a high grade european manufactured cooler coil which has been designed for installation in low
temp reach-in cabinets, display cases and small cold rooms. This range is for lower temperatures (≥ –25 °c) and have dual fin spacing, high quality coils made from special profile aluminium fins with inner grooved copper tube for high efficiency and better heat transfer making them suitable for the new generation of refrigerants. The pre-installed fan motors are single-phase 230V/1/50-60Hz, have tough fibreglass charged polyamide polymer fan guard and comes with a iP42 protection grade. This cooler coil evaporator product is designed to operate at temperatures of –40 to +40 °c and as standard comes with pre-installed electric defrost stainless steel heaters, internal drip tray, vulcanised power terminals within the junction box (iP54 rated) with space for extra wiring connections. A full range of spares available (see pdf data sheet). Electronic Refrigeration Controller: The value packed RDM PRO150MSB electronic refrigeration
controller comes with all you need to operate your refrigeration plant effectively and efficiently. It offers the user full temperature control, easy navigation, selectable defrost periods, digital temperature display and warning signals/audible alarm signals. Technical Data: Model Indoor Unit: EVS201/BED Air volume 605 m3/hr Defrost Heaters Yes Air throw 4.5 m Width 611 mm Depth 435 mm Height 170 mm No of Fans 230V 50/60Hz 1~ Phase 2 Net Weight 10.7 kg Outdoor Unit Model Number OP-LSQM026AJW05G Gross Weight 77 kg Net weight 62 kg EAN 5702428562133 Air flow @ 50Hz [m³/h] 3300 m³/h Applications LBP Approval standard CE EAC Ukranian UA TR mark Morocco Cم mark Compressor model CAJ2446Z Compressor power supply [V/Ph/Hz] 230/1/50 Condenser type D7 Electrical code G Fan blade size [mm] 450 mm Fan cowl/grill type B2 Fan current @ 50Hz [A] 0.47 A Fan diameter
[mm] 450 mm Fan power consumption @ 50Hz [W] 110 W Fan power output @ 50Hz [W] 68 W Fan power supply [V/Ph/Hz] 230/1/50 Fan voltage @ 50Hz (max) [V] [Max] 230 V Fan voltage @ 50Hz (max) [V] [Min] 230 V Length [mm] 464 mm Liquid line connection [in] 1/2 in Liquid line connection type Solder MCC 7.9 A No. of phases (compressor) 1 No. of phases (fan) 1 Number of fans 1 Receiver approval CE Refrigerant R404A R452A R507A Region Europe RLA 29 A Segment usage Low Back Pressure Sound power @ 50Hz [db(A)] 67 dBA Sound pressure level 50Hz (@10 m distance) [db(A)] 36 dBA Suction connection size [in] 1/2 in Suction connection type Solder Technology Reciprocating Total height [mm] 690 mm Type Optymaâ„¢ Slim Pack Type designation Condensing Units Version W05 Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V Width [mm] 1087 mm PDF DATA: Indoor Eco Coil Optyma Packaged condensing units This kit excludes pipe services which can be ordered as an option.
Key Details
- Brand / Vendor: Danfoss
- Product SKU: OP-LSQM026AJW05G
- MPN / Model: EVS201/BED OP-LSQM026AJW05G
- Category: Coldstore Chiller and Freezer Kits
- Parent Category: Refrigeration Condensing and Blower Systems
- Condition: New
- Availability: OutOfStock
