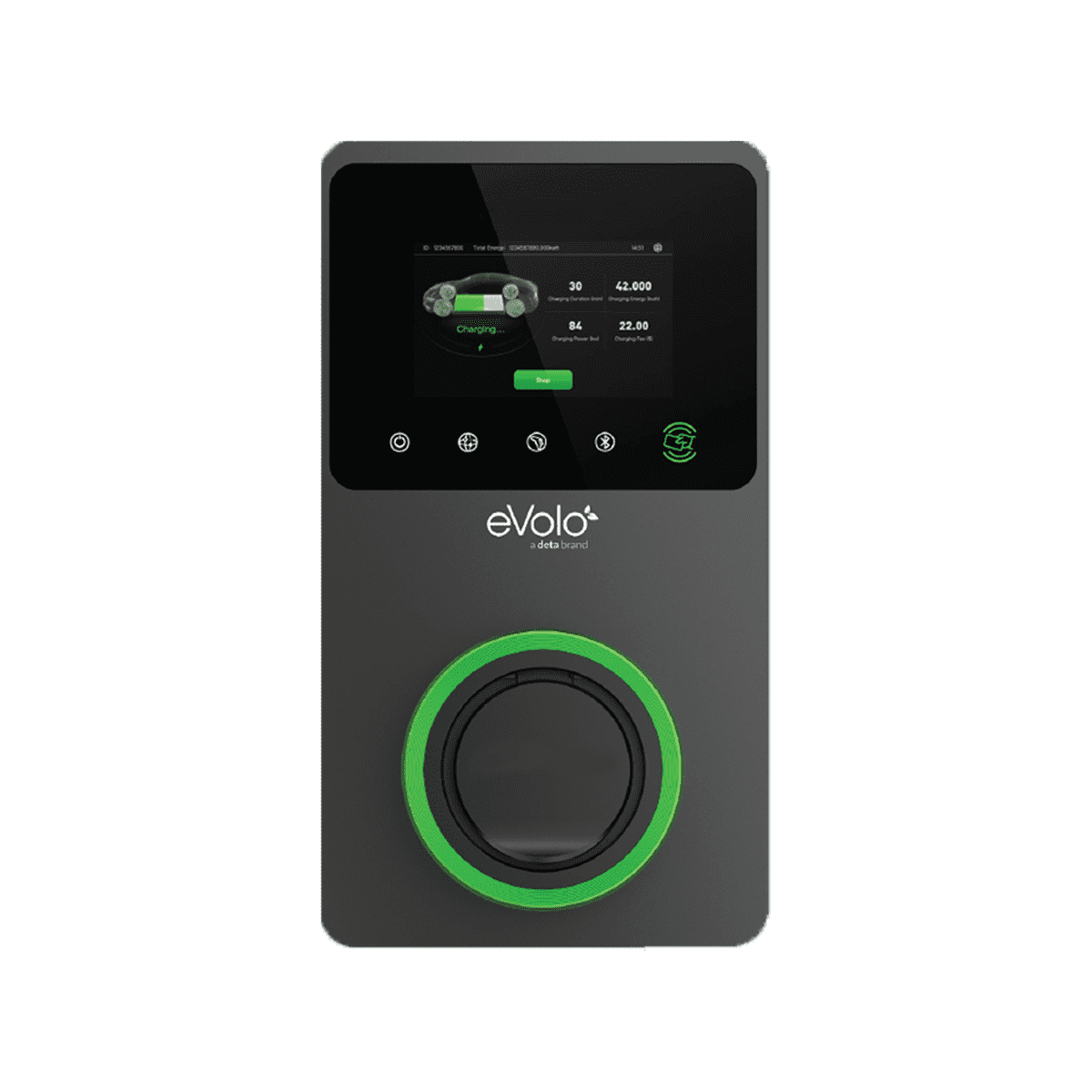

eVolo eVoom EVC7005 EV Charger Type 2 Un-tethered Wi-Fi, Ethernet, Bluetooth, RS485 22kW 415V~50Hz
eVolo eVoom EVC7005 EV Charger Type 2 Un-tethered Wi-Fi, Ethernet, Bluetooth, RS485 22kW 415V~50Hz is listed for TieDex store sale under Single Phase Electric Vehicle Charging. The brand/vendor is eVolo. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
The eVolo eVoom range are compact and smart, suitable for charging all electric and hybrid plug-in vehicles in residential single dwellings eVolo eVoom charging points were created to give your electric vehicle a powerful smart charger from an incredibly small size of only 335mm x 187mm x 85mm. Designed with cutting edge technology, eVolo EV charge points offer smart, safe and secure EV charging solutions for residential (single dwelling and communal) and commercial (workplace and public) parking. Quick to install and easy to use, these smart charge points provide users with a best in class charging experience. A simple to use app provides users with a convenient solution for managing their charge point(s) either in situ or remotely from the palm of their hand. Designed for quick installation and ease-of-use, the eVoom offers a reliable and secure EV charging solution
for the whole family. With an array of smart features, it provides up to a either a single phase 7.4kW or three phase, 22kW AC power rating, which is faster and safer than a 3-pin plug. Flexible and compact, the eVoom can be mounted directly onto a wall or on a post in remote car parking spaces. It can be operated via the app or RFID card, making it easy to switch the charge point on and off and restricting access to approved users only. The eVoom is ‘smart’, which enables users to send and receive information as well as respond to signals by increasing/decreasing the rate and/or timings for charging to take advantage of demand side response services. The incorporated PEN Protection, provides loss of earth protection, eliminating the time, cost and disruption for an earth rod to be
installed. The Smart App Control comes complete with a multitude of smart features, eVolo’s charge points come with an app to track, manage and optimise EV charging. Through the app, which can be downloaded from eVolo.uk (or Apple/Google Play stores), users can carry out vehicle charging to suit their lifestyles. Charging can be scheduled remotely to power up vehicles at the times that offer lower energy prices, and the battery charge status can be tracked whilst charging. Providing an excellent experience whether charging at home or on the road, the advantages of the app for home use include: • Scanning the QR code on a home charge point to streamline the setup and configuration process • Fast and convenient charging via the Auto-start feature • Schedule charging sessions during off-peak times to reduce electricity costs • View real-time charging statistics
and monthly energy consumption When on the road, the app includes the following features: • Start and stop charging using your charge card or by scanning the QR code on the public charge point • Displays the availability status of public charge point • View site information • Link your credit card to streamline the payment process using public charge points. Technical Data: Model: eVoomXT Product Number: EVC7005 Connection Capacity: Single Phase, 7.4kW & Three Phase, 22kW AC Charging Connector: Un-tethered, IEC 62196/Type 2 Charging Protocol: Mode 3 (EN/IEC61851) AC Charging: Output 7.4kW, 32A@230V AC & 22kW, 32A@400V AC * Input Voltage: 230V AC & 400V AC nominal Input Frequency: 50 Hz Input Current (max): 32 A Energy Monitoring: Power and energy monitoring as standard via APP & LCD display Overcurrent Protection: Internal overcurrent protection Status Indication / HMI: Touch
Screen & Multi-colour LEDs Standard: WiFi 802.11b/g/n @ 2.4GHz; Ethernet; Bluetooth; 4G; RS485 PEN Fault Protection: Built-in open PEN protection (detection + isolation). Can safely be installed without an earth-rod RCD Protection: Integrated 30mA AC and 6mA DC RCD Service Fuse Protection: Automated load management via wired CT & MID Meter (Only CT available seperately) MID Meter: Inbuilt +/- 1% Dimensions: (H xWx D) 335mm x 187mm x 85mm Mounting Type: Pole/Wall mounted Colour: Grey Unit Material: PC Operating Temperature: -40 to +55° C Operating Humidity: Up to 95%RH, non-condensing IP Rating: IP54, IK10 EMC Compliance: EN61000-6-3:2006, EN61000-6-2:2019 Safety Compliance: EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022 EV Charging Compliance: EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1 This product requires fitting by a qualified electrician, ask us for details on finding a fitter in your area as well as free
training for installers.
Key Details
- Brand / Vendor: eVolo
- Product SKU: eVoomXT
- MPN / Model: eVoom EVC7007
- Category: Single Phase Electric Vehicle Charging
- Parent Category: EV Electric Vehicle Charging
- Condition: New
- Availability: InStock
