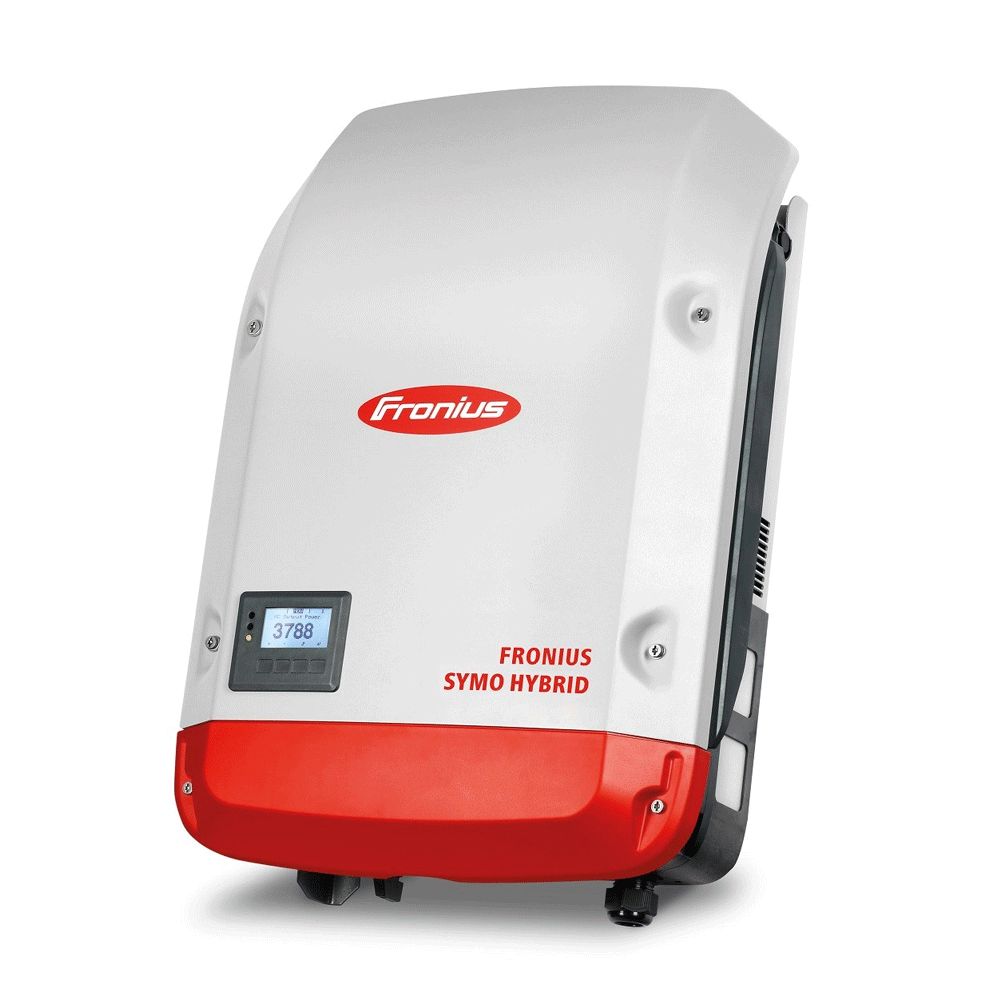

Fronius "Symo Hybrid 4.0-3-S" 48V Inverter Charger 1MPPT With Communication 4.0kW 230V~50Hz
Fronius "Symo Hybrid 4.0-3-S" 48V Inverter Charger 1MPPT With Communication 4.0kW 230V~50Hz is listed for TieDex store sale under Battery Inverters. The brand/vendor is Fronius. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
24 hours of sun is the Fronius vision of how energy will be supplied in the coming decades. The Fronius Symo Hybrid is the heart of the storage solution for 24 hours of sun - the Fronius Energy Package. With power categories from 3.0 to 5.0 kW, the three-phase inverter allows surplus energy from a photovoltaic system to be temporarily stored in the high quality Fronius Solar Battery. The result: maximum self-consumption of the available power and maximum energy independence. Excess solar power can thus be used at times when generating conditions are poor or impossible. With the emergency power function, the household can enjoy an optimum electricity supply even during power outages (the function can easily be added to the Fronius Symo Hybrid from mid-2016 with a software update). Perfect system configuration and visualisation are provided by the built-in
web server with graphical interface, WLAN and Ethernet. In addition, the DC coupling on the battery guarantees maximum efficiency of the overall system. SNAPINVERTER The user-friendly design of SnapINverter offers a simple installation and servicing process for the user. INTEGRATED WLAN INTERFACE Fronius have included simple data monitoring with this inverter with the WLAN interface. SUPERFLEX DESIGN The innovative SuperFlex Design permits the inverter the ability to manage any difficulties that it may encounter alone, such as varying roof orientations, shading or if modules are added to the system at a later date. DYNAMIC PEAK MANAGER Dynamic Peak Manager is a new MPPT algorithm that changes when searching for the peak operating point. The full characteristic curve, routinely checks to find the global maximum power point (GMPP), even in partial shading. SMART GRID READY Fronius have future-proofed their technology by
equipping them for the Smart Grid of the future. Advanced Grid features have been built into these inverters, these include control functions for optimum feed-in of reactive/effective power READY FOR STORAGE The ‘ready for storage’ design of this inverter means it can be altered to suit individual requirements. The inverter has full functionality so it can be adapted into a larger storage solution if required. MULTI FLOW TECHNOLOGY Multi Flow Technology enables varying DC and AC energy flows to run side by side. This means that energy from the solar panels and battery are both usable at the same time in a domestic environment but also means that the energy from the solar panels can be fed to the battery and the in-house network. Technical Specification Built-in DC Isolator N/A Communication Integrated Country of Manufacture Austria Dimensions (mm) 645 x
431 x 204 MPPT N/A Phasing Three Phase Power (Watts) 4000 Power Rating 1W-4kW SKU 4.210.071 Weight (kgs) 19.9
Key Details
- Brand / Vendor: Fronius
- Product SKU: SYMO HYBRID 4.0-3-S
- MPN / Model: SYMO HYBRID 4.0-3-S
- Category: Battery Inverters
- Parent Category: Solar Inverters
- Condition: New
- Availability: OutOfStock
