Fujitsu Air conditioning ARXG45KHTAP Concealed Duct Heat Pump Inverter 12.5Kw/45000Btu R32 A+
Fujitsu Air conditioning ARXG45KHTAP Concealed Duct Heat Pump Inverter 12.5Kw/45000Btu R32 A+ is listed for TieDex store sale under Fujitsu Air Conditioning ARXG Medium Static Duct. The brand/vendor is Fujitsu Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

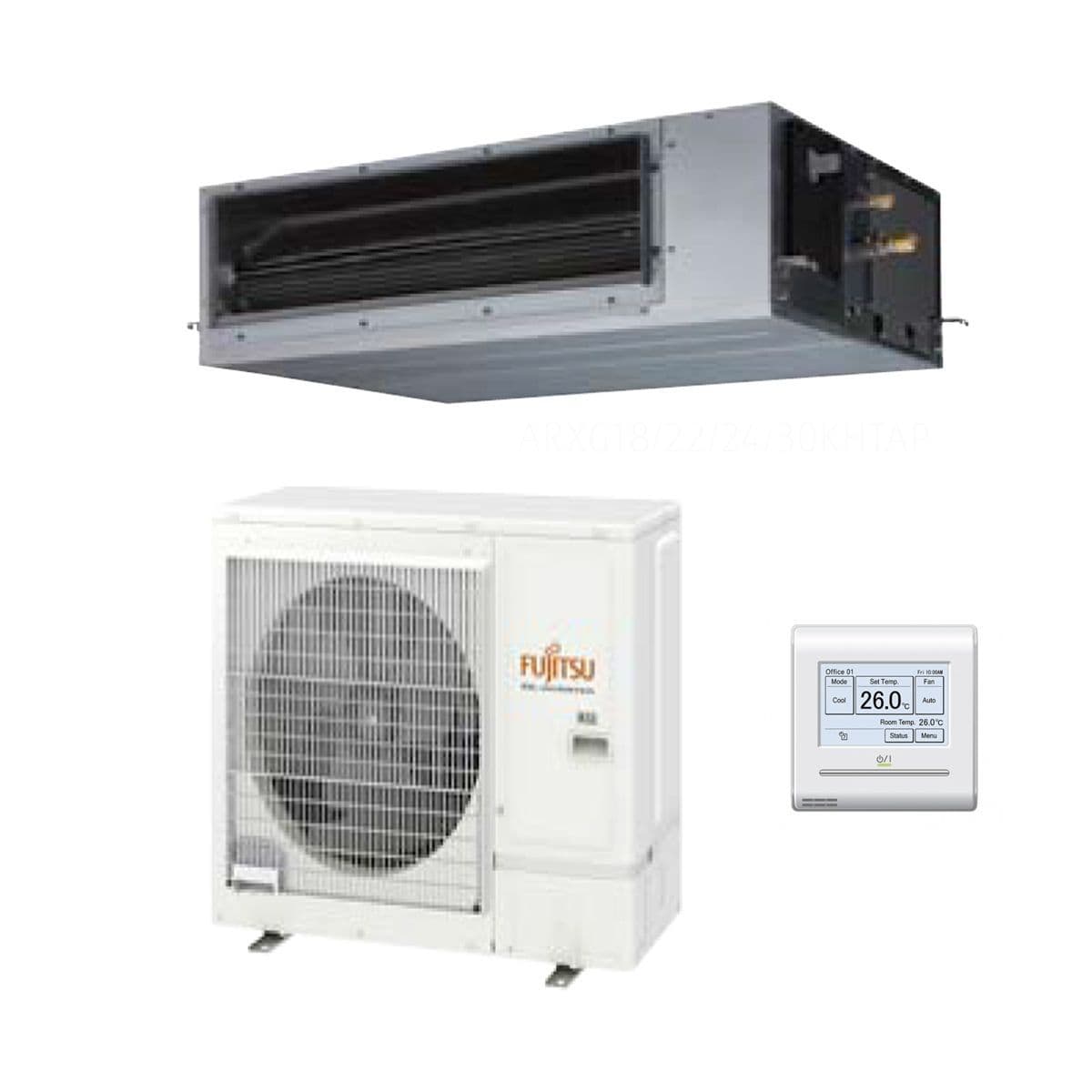

Fujitsu Air conditioning ARXG45KHTAP Concealed Duct Heat Pump Inverter 12.5Kw/45000Btu R32 A+ 240V/415V~50Hz This Kit Includes: 1 x Fujitsu Air Conditioning ARXG45KHTAP Concealed Duct Heat Pump R32 A++ 12.5Kw/45000Btu with return air filter 1 x Fujitsu Air Conditioning AOYG45KBTB/A Outdoor Condensing Unit 12.5Kw/45000Btu R32 1 x Touch-screen Controller UTY-RNRYZ3 Horizontally Mounted Perfect for areas where you want concealed air conditioning, the ARXG-KHTAP medium static pressure ducted units are mounted above a ceiling and designed for small homes, offices, restaurants or shops. The ARXG-KHTAP ducted unit operates at low noise levels and is virtually invisible when installed within a suspended ceiling. Its low unit height and lightweight design makes the installation easier and more convenient. It's whisper quiet operation is ideal for master bedrooms, living rooms and other single room residential or quiet commercial uses. It can be installed in a
bulkhead design format with direct outlet grille for total integration with the room. The Fujitsu air conditioning condensing R32 inverter outdoor unit with energy saving V-Ram circuit makes for a compact and lightweight outdoor unit with a reduced size. In addition to providing greater performance it allows the appliance to operate efficiently even when the outside temperature is very low or hot. Unlike conventional systems, the Fujitsu inverter technology adapts the speed of the compressor to the needs of each moment, consuming only the energy required. This allows temperature swings to be reduced drastically and maintains a temperature margin in the room of between ±0,5ºC, providing greater room temperature stability and comfort. Key Product Features: Quiet as a whisper with medium static duct compression Compact and lightweight Internal drain pump included Large air volume flow 2 temperature sensors (controller and
unit) for improved convenience Medium static air compression Touch-screen remote controller hard wired A++ rated R32 refrigerant gas Highly efficient DC fan motors Specification: Indoor/Outdoor Units: ARXG45KHTAP / AOYG45KBTB Capacity Cooling kW 12.1 (4.0-14.0) Heating 13.5 (4.2-16.2) UK Total/sensible cooling 11.54/9.52 Input Power Cooling/Heating kW 3.53/3.37 EER Cooling W/W 3.43 COP Heating 4.01 Pdesign Cooling/Heating(-10°C) kW - SEER Cooling W/W - SCOP Heating (Average) - (QHUJ\ (IÀFLHQF\ Class Cooling - Heating (Average) - Annual Energy Consumption Cooling kWh/a - Heating - Moisture Removal I/h 2.6 Sound Pressure Level Indoor (Cooling) H/M/L/Q dB(A) 39/35/31/29 Indoor (Heating) H/M/L/Q 39/35/31/29 Outdoor(Cooling/Heating) High 57/57 Sound Power Level Indoor(Cooling/Heating) High 67/69 Outdoor(Cooling/Heating) High 71/71 $LUÁRZ 5DWH Indoor / Outdoor (Cooling) High m3/h 2,550/4,450 Indoor / Outdoor (Heating) High 2,550/4,450 Static pressure range (Standard) Pa 30 to 200 (60) Net Dimensions H x W x D
Indoor mm 300x1,400x700 Outdoor mm 998x940x320 Weight Indoor kg(lbs) 46 (101) Outdoor kg(lbs) 67 (148) Remote Controller Type (NOT Supplied Within Unit) Touch-screen Controller UTY-RNRYZ3 Interconnecting Cable (Suggested cable size 1.5mm) 3 Core + Earth Suggested MCB Size Amp 30 Max. Operating Current Cooling/Heating A 28.5/28.5 Power Supply To Outdoor Connection Pipe Diameter (Gas / Liquid) Inch 5/8 & 3/8 Max Pipe Length (Pre-Charge) m 50 (30) Max Height Difference 30 Operation Range Cooling °CDB -15 to 46 Heating -15 to 24 Refrigerant Type R32 Charge g 2700 Additional Charge g/m 40 Filter (To be ordered separately) UTD-LFNA Optional Parts: Compact Wired Remote Controller: UTY-RCRYZ1 KNX® Converter: UTY-VKSX Wireless LAN Interface: UTY-TFSXZ1 Wired Remote Controller (Touch Panel): UTY-RNRYZ3 MODBUS® Converter: UTY-VMSX IR Receiver Unit: UTY-LBTYM Wired Remote Controller: UTY-RVNYM External input and output PCB: UTY-XCSX Network Converter for single split
(DC power supply type): UTY-VTGX Simple Remote Controller (Without operation mode): UTY-RHRY External Connect Kit: UTY-XWZXZG Network Converter for single split (AC power supply type): UTY-VTGXV Simple Remote Controller: UTY-RSRY External input and output PCB: UTZ-GXNA Wireless interface for use with Smart home products: FJ-AC-WIFI-1 External Switch Controller: UTY-TERX Long-Life Filter: UTD-LFNA (36-54) Remote Sensor Unit: UTY-XSZX UTD-LFNB (18-30) (Outdoor unit 30/36/45/54) UTD-LFNC (12-14) External Connect Kit: UTY-XWZXZ3 PDF Data Sheet: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014
on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Fujitsu Air Conditioning
- Product SKU: ARXG45KHTAP-AOYG45KBTB
- MPN / Model: ARXG45KHTAP-AOYG45KBTB
- Category: Fujitsu Air Conditioning ARXG Medium Static Duct
- Parent Category: Fujitsu Air Conditioning ARXG Ducted Heat Pump Inverter
- Condition: New
- Availability: InStock
