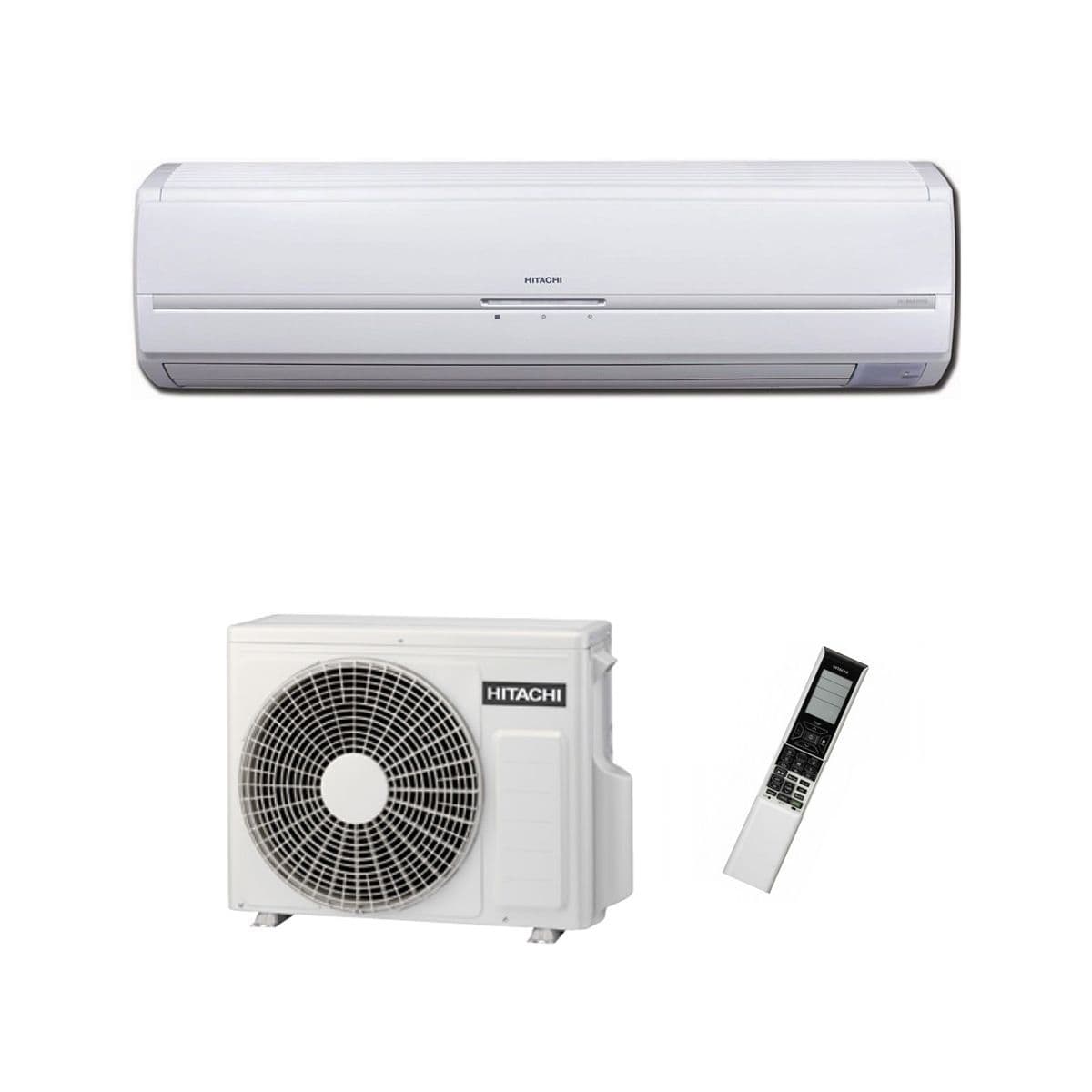

Hitachi Air Conditioning Wall Mounted RAK-70RPB Performance Inverter Heat Pump 7Kw/24000Btu A++ 240V~50Hz
Hitachi Air Conditioning Wall Mounted RAK-70RPB Performance Inverter Heat Pump 7Kw/24000Btu A++ 240V~50Hz is listed for TieDex store sale under Hitachi Air Conditioning Summit And Performance Wall Mounted RAK Heat Pump Inverter A++. The brand/vendor is Hitachi Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
A++ Energy Rated Product The New Performance Hitachi air conditioning RAK wall mounted range are highly economical and environmentally friendly. Using the latest compressor and inverter technology keeps power consumption to a minimal, but at the same time providing powerful cooling and heating. All Hitachi’s air conditioning units offer high seasonal efficiencies, with models in the Performance range achieving h igh seasonal performance SCOP A++ 4.6 and SEER A++ 7.6 . ​​The compact dimensions of the Performance model (280 x 780 x 218) are common across the entire range and allow for easier integration. Enhanced inverter performance and system performance are achieved by the addition of a ‘Direct Current’ drive compressor, resulting in up to 10% more efficient than standard 'AC' (Alternating Current) Systems. The variable speed compressor (inverter) enables the system to rapidly reach the desired room temperature setting.
Once the desired room temperature has been achieved the compressor rotation peed is reduced, saving up to 30% in energy usage (when compared to standard fixed speed systems). A bigger flap on the indoor unit delivers air quickly to every corner of the room and the powerful, sweeping air flow eliminates dead zones and improves the cooling and heating effect. The trapezoidal fan blades cut the air diagonally to minimise air resistance and the conical blade fan ensures a high airflow. With this diagonal air blow, less friction is caused, which reduces noise and improves efficiency. The fan diameter has been increased from the conventional 90mm to 100mm. Includes deodorising and anti-bacterial Wasabi filters as standard. Volt Free control of the air conditioning system option, used to turn the unit on/off remotely after receiving a signal such as key-card, door
or window switch, specifically useful in hotel rooms to prevent unnecessary use. Accessory SPX WDC3 is required. Product Key Feature's: SCOP A++ 4.6 and SEER A++ 7.6 Infra-red controller Slim construction 218mm Pipe runs up to 15 meters Low noise 19dBA on low Cold draft prevention on heat pump start up Fault diagnosis Auto re-start after power interruption PRE-CHARGED WITH REFRIGERANT for up to 20 metres pipe length Light weight noise absorbing outdoor unit Volt Free control 5 Years Warranty Technical Specifications: RAK-70PPA Nominal Cooling Capacity (min-max) kW 7.00 (1.5-8.00) Sensible Cooling Capacity kW 5.4 UK Cooling Capacity (sensible) kW 6.5 (4.8) Nominal Heating Capacity (min-max) kW 8.00 (1.5-9.2) Nominal Cooling Power Input (min-max) kW 2.17 (0.20-2.82) Nominal Heating Power Input (min-max) kW 2.20 (0.20-2.97) Seasonal Efficiency SEER 6.8 Energy Efficiency Class A++ Annual Energy Consumption kWh/yr 360 Seasonal Efficiency
(Average Climate) SCOP 4.4 Energy Efficiency Class A+ Annual Energy Consumption kWh/yr 2060 Nominal Load Efficiency EER/COP 3.23/3.64 Energy Class (cool/heat) A/A Noise Level Cooling (Sound Pressure) (SL/L/M/H) dB(A) 30/33/42/47 Noise Level Heating (Sound Pressure) (SL/L/M/H) dB(A) 30/33/42/47 Noise Level (Sound Power) dB(A) 61 Air Flow Cooling Mode (SL/L/M/H) m³/h 510/630/870/1020 Air Flow Heating Mode (SL/L/M/H) m³/h 510/630/870/1080 Dehumidification l/hr 4.5 Dimensions HxWxD mm 333x1150x245 Weight kg 15.0 Power Supply 35V DC &230V / 1Ph / 50Hz Drain Diameter (ext) Ø16mm Remote Control Standard Infra Red (RAR-5E1) Optional Wired (SPX-RCDB) Outdoor Unit RAC-70WPA Noise Level Cooling (Sound Pressure) Night Mode dB(A) 52 Noise Level Heating (Sound Pressure) Night Mode dB(A) 54 Noise Level (Sound Power) dB(A) 67 Air Flow (Cooling/Heating) m³/h 2820/2820 Dimensions HxWxD mm 800x850x298 Weight kg 55.0 Piping Diameter (Liquid/Gas) Inch 1/4 - 5/8 mm 6.35 - 15.88
Minimum Pipe Length m 3.0 Maximum Pipe Length m 30 Maximum Height Difference m 20 Current Quantity of Refrigerant kg 1.85 Chargeless/Additional Refrigerant m / g/m 30 / - Power Supply 230V / 1Ph / 50Hz Recommended Fuze Size A 32 Starting Current A 10.0 Running Current (Cooling/Heating) A 9.10/9.30 Interconnecting Cables No. 2(Screened)+2+E Working Range (Cooling/Heating) °C -10-43 / -15-21 Refrigerant / GWP R410A / 1975 Compressor Type Twin Rotary PDF Data: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11
(5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Hitachi Air Conditioning
- Product SKU: RAK-70PPA
- MPN / Model: RAK-70PPA
- Category: Hitachi Air Conditioning Summit And Performance Wall Mounted RAK Heat Pump Inverter A++
- Parent Category: Hitachi Wall Mounted Air Conditioning R32 2Kw to 10Kw
- Condition: New
- Availability: InStock
