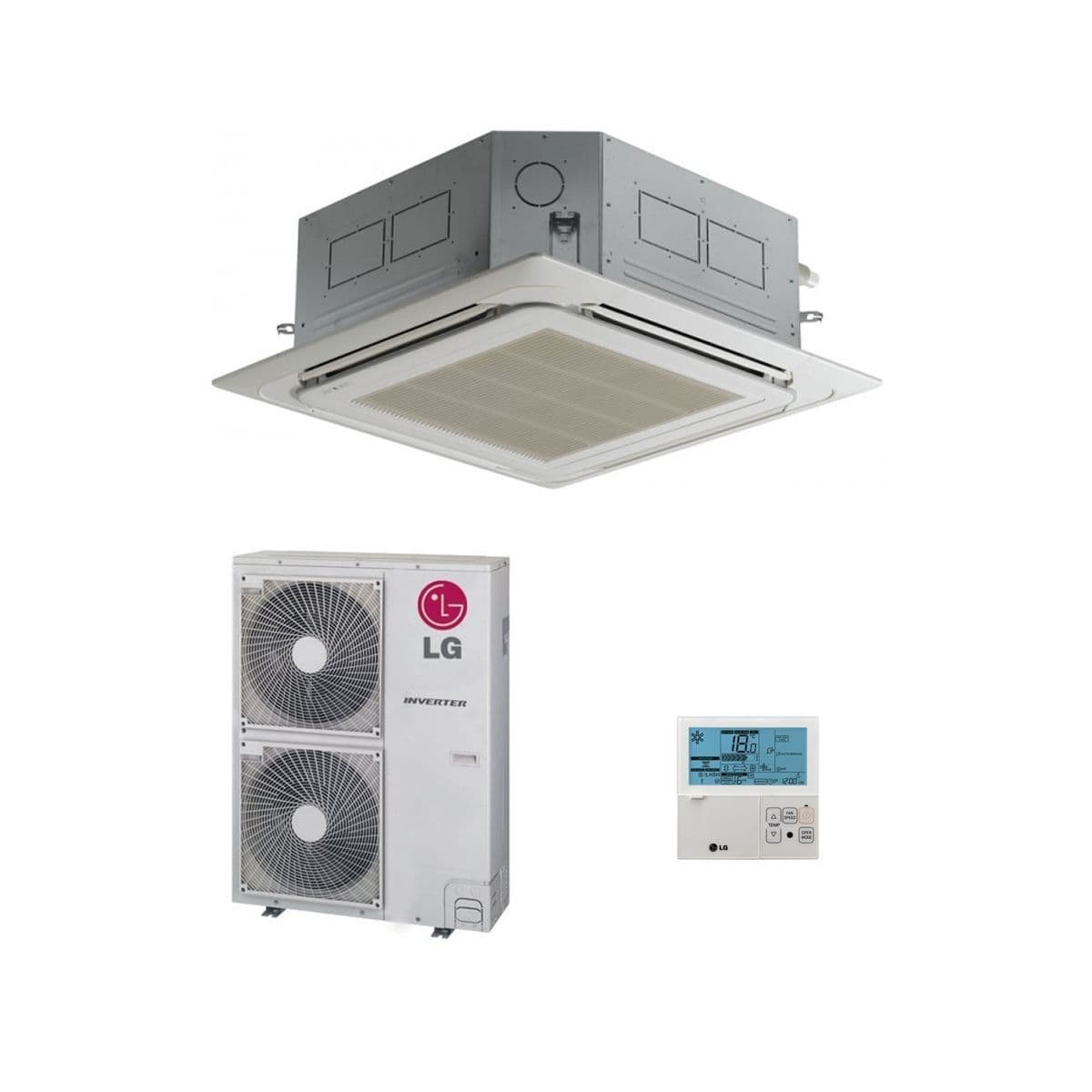

LG Air Conditioning UT60F-NA0 Cassette Heat Pump Inverter 16Kw/60000Btu 240V/415V~50Hz
LG Air Conditioning UT60F-NA0 Cassette Heat Pump Inverter 16Kw/60000Btu 240V/415V~50Hz is listed for TieDex store sale under LG Air Conditioning Cassette Standard Inverter Heat Pump. The brand/vendor is Lg Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Cassette Heat Pumps for Commercial And Residential Applications. Ideal for large open plan areas, or irregular shaped rooms The Advanced CT Cassette range has now been extended to include new small capacity STANDARD INVERTER systems starting at 2.5kW / 9000Btu, and an high capacity system 16kW at the top end. (figures stated are for cooling/heating performance. The 7-Day Programmable Timer now included in standard controls specification and 24Hr control. Lg air conditioning and heat pump high performance standard inverter cassette series split systems designed for residential and commercial application such as offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas. The standard inverter air conditioning system's CoP (Coefficient of Performance) is up to 3.7 on some models. This means the system can deliver 3.7 kW of heating, whilst consuming only 1.0kW of electrical power. This has been
achieved by combining advanced Lg air conditioning hyper inverter technology with R410A refrigerant. The New Cassette Design has improved air flow-pattern through the unit, and the new design of the high performance indoor heat exchanger, have resulted in a pressure loss reduction, allowing the fan design to be optimised for significantly lower sound Db levels. The air discharge louver has been modified to minimise air smudging on the ceiling adjacent to the air outlets. Product Key Feature's: • Plasma Air Purifying System • Anti Corrosion Gold Fin (Outdoor) • Weekly Program • Turbo Fan • High Head Drain Pump • Low Standby Power • Central Controller (Accessory) • Child Lock Function • Easy-to-Clean Air Filter • Two Thermistor Control • Optimal Air Distribution • Auto Cleaning • Auto Changeover • Auto Restart • Auto Operation • Quiet Operation • Healthy
Dehumidification • Hot Start • 24-Hour ON/OFF Setting Timer • Optimal air distribution with 4-way directional Air flow system. • 4-way Auto Swing Technical Information: Nominal Capacity Cooling kW - 16 Capacity (UK) Cooling kW - 16 Nominal Capacity (T1) Heating kW - 18.7 Power Supply to Unit V/Phase/Hz - 240/1/50 Power supply to - outdoor Inter connecting Cables - 4*15 cores and rating No. Amps 20 Running Current Cooling Amps - 23.5 Running Current Heating Amps - 23.9 Power Input Cooling kW - 5.4 Power Input Heating kW - 5.4 Start Current Cooling Amps - <23 Start Current Heating Amps - <23 Circuit Breaker Amps - 50 T1 EER Cool (W/W) - 2.7 T1 COP Heat (W/W) - 3.07 ECA compliant - yes Air Circulation Indoor - (m3/min) - 43 (High Speed) Outdoor - (m3/min) - 55 Sound Levels
Indoor - dB(A)+/-3 (at 1.0m) - 43 (High Speed) Outdoor - dB(A)+/-3 (at 1.0m) - 54 Indoor Units WxHxD (mm) - 840X288X840 Panel for Unit - WxHxD (mm) - 950 x 25 x 840 Outdoor Units WxHxD (mm) - 950X1380X330 Indoor Units (Kg) - 24.6 Outdoor Units (Kg) - 92 Liquid (Inch) - 3/8 Suction (Inch) - 5/8 Drain (ID) (mm) - 32 Maximum Elevation (m) - 30 Max. Distance between In & Out (m) - 70 Factory charge (Kg) - 3000g Charged for — m (m) - 7.5 Additional g/m (g/m) - 30 need a low ambient kit to cool in ambients of less than 20C Yes/No - no PDF Data: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you
do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Lg Air Conditioning
- Product SKU: UT60-NM2
- MPN / Model: UT60-NM2
- Category: LG Air Conditioning Cassette Standard Inverter Heat Pump
- Parent Category: LG Air Conditioning
- Condition: New
- Availability: InStock
