Mitsubishi Heavy Industries Air Conditioning FDU71VH FDC71VNP-W Ducted Concealed Standard 7Kw 1P
Mitsubishi Heavy Industries Air Conditioning FDU71VH FDC71VNP-W Ducted Concealed Standard 7Kw 1P is listed for TieDex store sale under Mitsubishi Heavy Industries FDUM Ducted Air Conditioning Inverter Heat Pump. The brand/vendor is Mitsubishi Heavy Industries Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

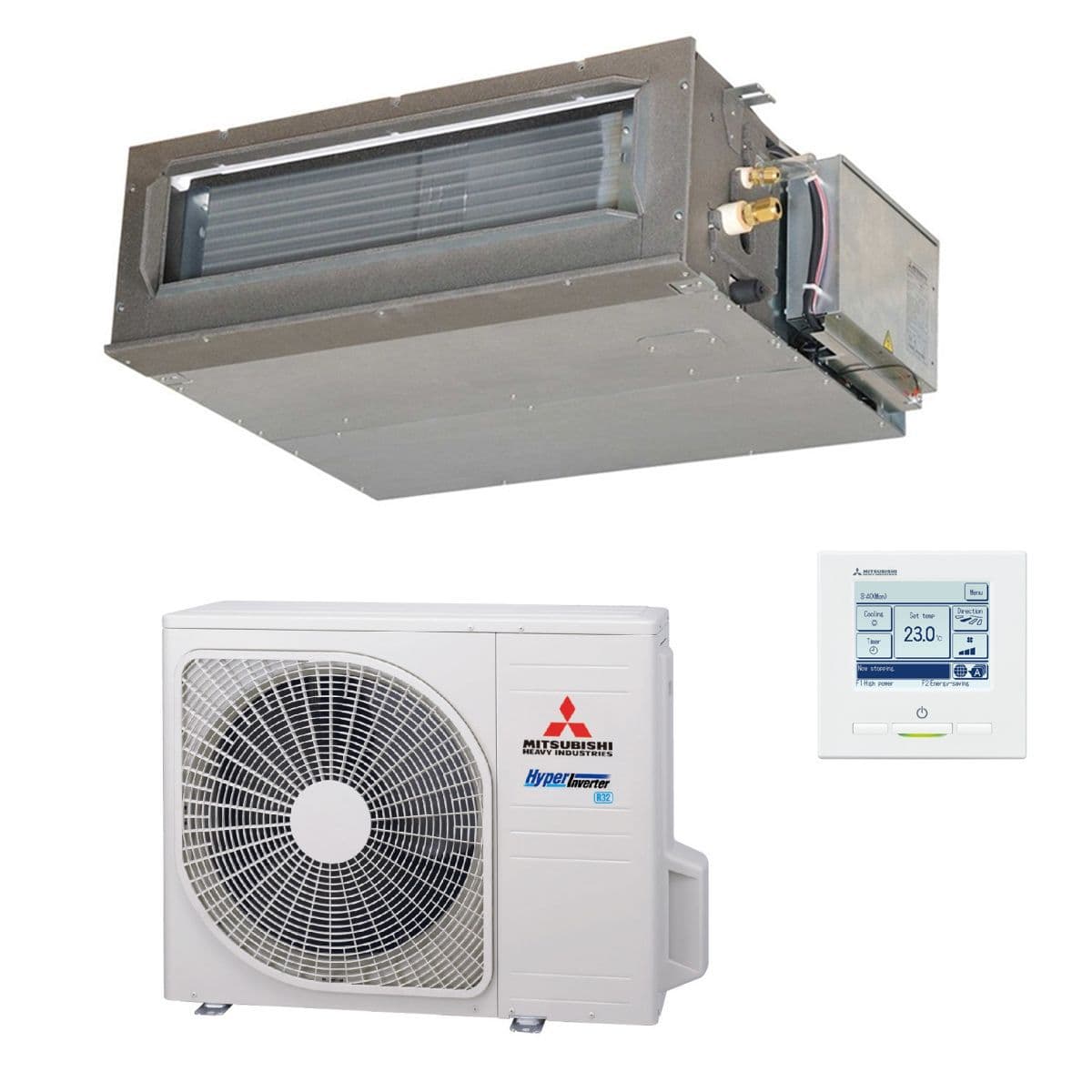

Mitsubishi Heavy Industries Air Conditioning FDC71VNP-W FDU71VH Ducted Ceiling Concealed 7Kw/24000Btu R32 A+ 1 Phase 220- 240V, 50Hz Standard Inverter High Static Ducted Series, ESP Static Control with RC-E5 Controller This Kit Includes: 1 x Mitsubishi Heavy Industries Air Conditioning FDU71VH Ducted Ceiling Concealed R32 7Kw/24000Btu A+ High Static Ducted Series 1 x Mitsubishi Heavy Industries Air Conditioning FDC71VNP-W 7Kw/24000Btu A+ R32 Standard Inverter Outdoor Unit 1 Phase 220- 240V, 50Hz 1 x Mitsubishi Heavy Industries Air Conditioning Eco Touch RC-EX3A Wired Remote Controller 2 wire PAC 1 x Mitsubishi Heavy Industries Air Conditioning UM-FL1/2/3EF Return Air Filter Mitsubishi Heavy Industries Air Conditioning FDU ducted heat pumps for commercial & residential applications. Ideal for concealed cooling, multiple area applications or irregular shaped rooms. FDU Ducted units are of robust construction, and are fitted with large diameter fans for optimum air
volume, whilst maintaining low sound levels. Condensate Pump included. Return plenums with filters available as a option for easy installation. Duct design was simplified. Using DC motor, the most optimum air flow volume can be achieved by this automatic control. Indoor unit will recognise external static pressure by itself automatically and keep rated air flow volume. FDU series of slimline ducted systems are a quiet and discreet solution for multiple rooms. Coming in a range of capacities ranging from 7.1kW up to 14kW and incorporating a range of convenient features and functions, the FDU series is the perfect heating and cooling solution. Can be also used with the new AirZone multi zone controller. Superior Controls Specification: There has never been a multi function controller with the advanced sophistication of the new Mitsubishi RC-EX1A. It combines all the basic user requirements
- temperature setting, fan speed selection, mode, and timer settings, with a comprehensive range of service data functions, inverter compressor speed indication, fault diagnosis, and operational history. Key Product Features: 7-Day Programmable Timer • Two on/off settings each day • Different temperature for each set period • External timer/8MS switching for Group (up to 16 units) • Wall Controller - hard wired • Integral temperature sensor • Condensate Lift Pump included • Low ambient control included • Auto re-start after power interruption • Compatible with Multi Systems FDU Technical Specification: INDOOR UNIT FDU71VH HARD WIRED CONTROLLER RC-EX3A OUTDOOR UNIT FDC71VNP-W UK Cooling kW 6.71 UK Sensible Cooling kW 5.49 Cooling Range (Nominal) kW 1.5 to 7.3 S.E.E.R, EER, Energy Label 5.86, 2.73, A+ Heating Range (Nominal) kW 1.1 to 7.3 S.C.O.P, COP, Energy Label 4.12, 3.76, A+ INDOOR UNIT Exterior
Dimensions (H x W x D)* mm 280 x 950 x 635 Net Weight kg 34 Air Flow (H/M/L) Cooling m3/m 19 / 15 / 10 Air Flow (H/M/L) Heating m3/m 19 / 15 / 10 Sound Pressure Level (H/M/L) Cooling db(A) 33 / 29 / 25 Sound Pressure Level (H/M/L) Heating db(A) 33 / 29 / 25 OUTDOOR UNIT Exterior Dimensions (H x W x D) mm 640 x 800(+71) x 290 Net Weight kg 45 Sound Pressure Level Cooling/Heating db(A) 42 / 42 ELECTRICAL DATA Power Source Rating MCB A 20 Mains Power To Outdoor 1 Phase 220- 240V, 50Hz Interconnecting Wires (Dia) (mm2) 3+E (1.5) Start Current / Max Running Current A 5 / 15 INSTALLATION/REFRIGERANT Ref. Piping Size o.d.ins (mm) Liquid 1/4* Suction 1/2* Ref. Min Piping Length m - Ref. Max Piping Length m 30
Vertical Height Difference (Max) *Outdoor Unit Above/Below Indoor Unit m 20 / 20 Refrigerant Amount Pre-charged (kg/TCO2Eq) 1.30 / 0.878 * For Pipe Length Up To m 15 Additional Refrigerant g/m 20 Accessories for FDU-VH Ducted Units: PRODUCT NO. PRODUCT DESCRIPTION RCN-KIT4-E IR Remote Control & Receiver Kit LB-KIT Motion Sensor (USE RCEX3A Controller) RCE5 Wired Controller RCEX3A Eco Touch Controller RCH-E3 Simplified Controller PCZ006A043 6 Wire Adaptor INMBSM- HI001R000 Modbus Interface - 1 Indoor Unit INKNXM- HI001R000 KNX Interface - 1 Indoor Unit SC-ADNA-E Superlink Adaptor IHWFIM- HI001R000 Intensis Home WIFI Interface MHI Hard Wired AZA16WSCMHI Airzone Aido WiFi SC-THB-E3 Remote Sensor 8m SSA42A024 Elbow for condensing drain kit (1 required) SSA947089 Gromet for condensing drain kit (4 required) FDU71 ZRS/FDU71-90 Filter Kit ZF-FDUMA112-140 Filter Kit FDU100-140 ZDS/FDUM90VF (3 x 200mm Spigots) Discharge Plenum Kit FDU71 ZDS/FDUM160F (4 x
200mm Spigots) Discharge Plenum Kit FDU100-140 PDF Data: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Mitsubishi Heavy Industries Air Conditioning
- Product SKU: FDC71VNP-W FDU71VH
- MPN / Model: FDC71VNP-W FDU71VH
- Category: Mitsubishi Heavy Industries FDUM Ducted Air Conditioning Inverter Heat Pump
- Parent Category: Mitsubishi Heavy Industries Air Conditioning
- Condition: New
- Availability: InStock
