Mitsubishi Heavy Industries Air Conditioning FDUM100VH FDC100VNP-W Ducted Concealed Standard 10Kw 1P
Mitsubishi Heavy Industries Air Conditioning FDUM100VH FDC100VNP-W Ducted Concealed Standard 10Kw 1P is listed for TieDex store sale under Mitsubishi Heavy Industries FDUM Ducted Air Conditioning Inverter Heat Pump. The brand/vendor is Mitsubishi Heavy Industries Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

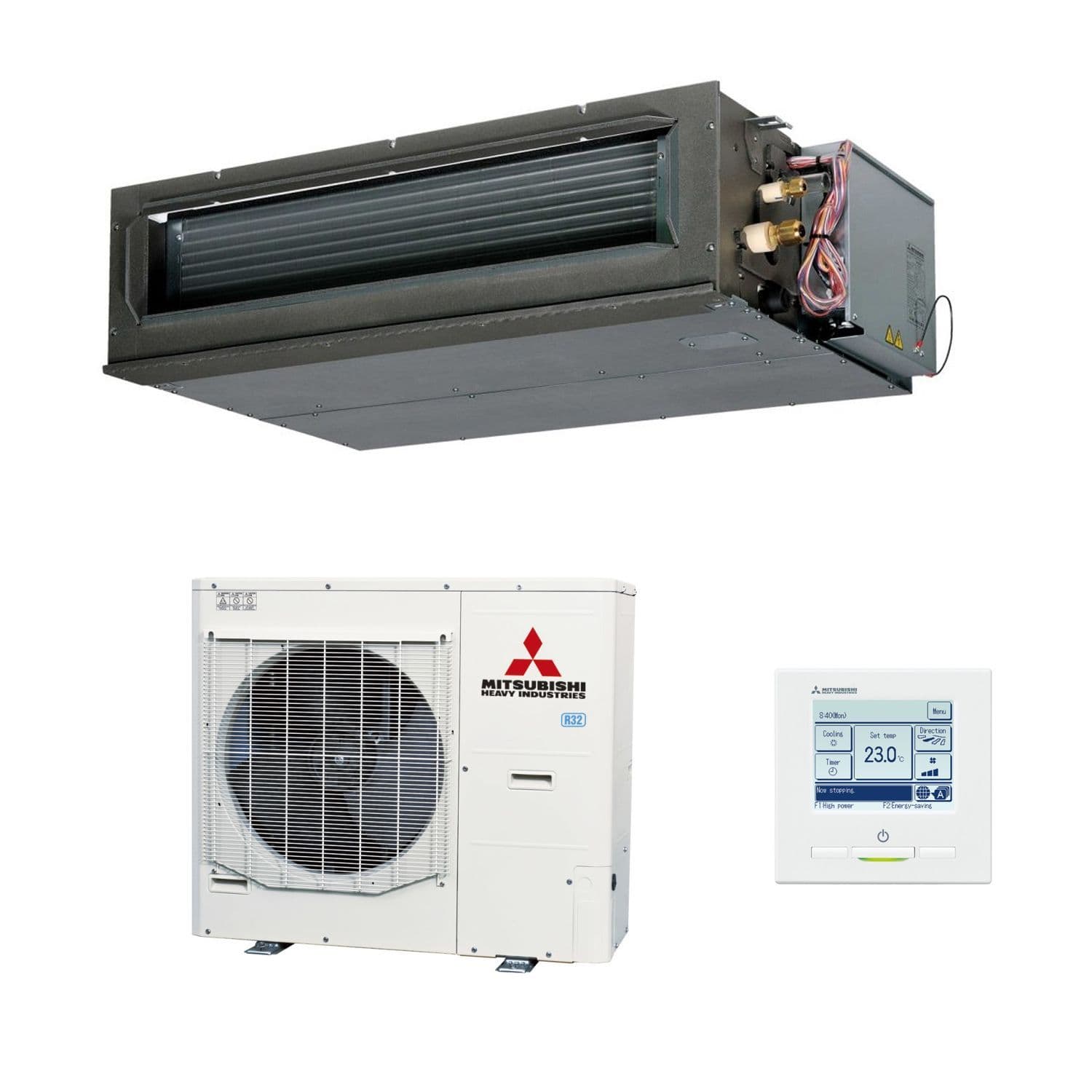

Mitsubishi Heavy Industries Air Conditioning FDC100VNP-W FDUM100VH Ducted Ceiling Concealed 10Kw/34000Btu R32 A+ 1 Phase 220-240V, 50Hz This Kit Includes: 1 x Mitsubishi Heavy Industries Air Conditioning FDUM100VH Ducted Ceiling Concealed R32 10Kw/34000Btu A+ 1 x Mitsubishi Heavy Industries Air Conditioning FDC100VNP-W 10Kw/34000Btu A+ R32 Outdoor Unit Standard Inverter 1 Phase 220-240V, 50Hz 1 x Mitsubishi Heavy Industries Air Conditioning Eco Touch RC-EX3A Wired Remote Controller 2 wire PAC 1 x Mitsubishi Heavy Industries Air Conditioning UM-FL1/2/3EF Return Air Filter Ducted Heat Pumps for Commercial & Residential Applications. Ideal for concealed cooling, multiple area applications or irregular shaped rooms. FDUM Ducted units are of robust construction, and are fitted with large diameter fans for optimum air volume, whilst maintaining low sound levels. Condensate Pump included. Return plenums with filters available as a option for easy installation. Plenum outlets and inlets
200mm. Duct design was simplified. Using DC motor, the most optimum air flow volume can be achieved by this automatic control. Indoor unit will recognise external static pressure by itself automatically and keep rated air flow volume. Superior Controls Specification: There has never been a multi function controller with the advanced sophistication of the new Mitsubishi RC-EX1A. It combines all the basic user requirements - temperature setting, fan speed selection, mode, and timer settings, with a comprehensive range of service data functions, inverter compressor speed indication, fault diagnosis, and operational history. FDUM Key Product Features: • 7-Day Programmable Timer • Two on/off settings each day • Different temperature for each set period • External timer/8MS switching for Group (up to 16 units) • Wall Controller - hard wired • Integral temperature sensor • Condensate Lift Pump included • Low ambient
control included • Auto re-start after power interruption • Compatible with Multi Systems FDUM Technical Specification: INDOOR UNIT PART NUMBER FDUM100VH HARD WIRED CONTROLLER PART NUMBER RC-EX3A OUTDOOR UNIT PART NUMBER FDC100VNP-W UK Cooling 9.42 UK Sensible Cooling (Nominal) 7.40 Cooling Range (Nominal) 2.1 to 10.2 S.E.E.R, EER, Energy Label 6.11, 3.25, A++ Heating Range (Nominal) 1.1 to 7.3 S.C.O.P, COP, Energy Label 4.13, 4.08, A+ INDOOR UNIT INDOOR UNIT Exterior Dimensions (H x W x D)* 280 x 1,370 x 740 Net Weight 54 Air Flow (H/M/L) Cooling 28 / 25 / 19 Air Flow (H/M/L) Heating 28 / 25 / 19 Sound Pressure Level (H/M/L) Cooling 38 / 36 / 30 Sound Pressure Level (H/M/L) Heating 38 / 36 / 30 OUTDOOR UNIT OUTDOOR UNIT Exterior Dimensions (H x W x D) 845 x 970 x 370 Net
Weight 77 Sound Pressure Level Cooling/Heating 54 / 55 ELECTRICAL DATA ELECTRICAL DATA Power Source Rating MCB 20 Mains Power To 1 Phase 220-240V, 50Hz Interconnecting Wires (Dia) 3+E (1.5) Start Current / Max Running Current 5 / 19 INSTALLATION/REFRIGERANT INSTALLATION/REFRIGERANT Ref. Piping Size o.d.ins (mm) 1/4* 5/8 Ref. Min Piping Length - Ref. Max Piping Length 30 Vertical Height Difference (Max) *Outdoor Unit Above/Below Indoor Unit 20 / 20 Refrigerant Amount Pre-charged (kg/TCO2Eq) 1.7/1.148 * For Pipe Length Up To 15 Additional Refrigerant 20 PDF Data: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit
installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Mitsubishi Heavy Industries Air Conditioning
- Product SKU: FDC100VNP-W FDUM100VH-15027
- MPN / Model: FDC100VNP-W FDUM100VH
- Category: Mitsubishi Heavy Industries FDUM Ducted Air Conditioning Inverter Heat Pump
- Parent Category: Mitsubishi Heavy Industries Air Conditioning
- Condition: New
- Availability: InStock
